TREK

Rail 9.8 XT Teal/Nautical Navy

  • SALE
  • Regular price $11,799.99


Please contact us if you are interested in this product.

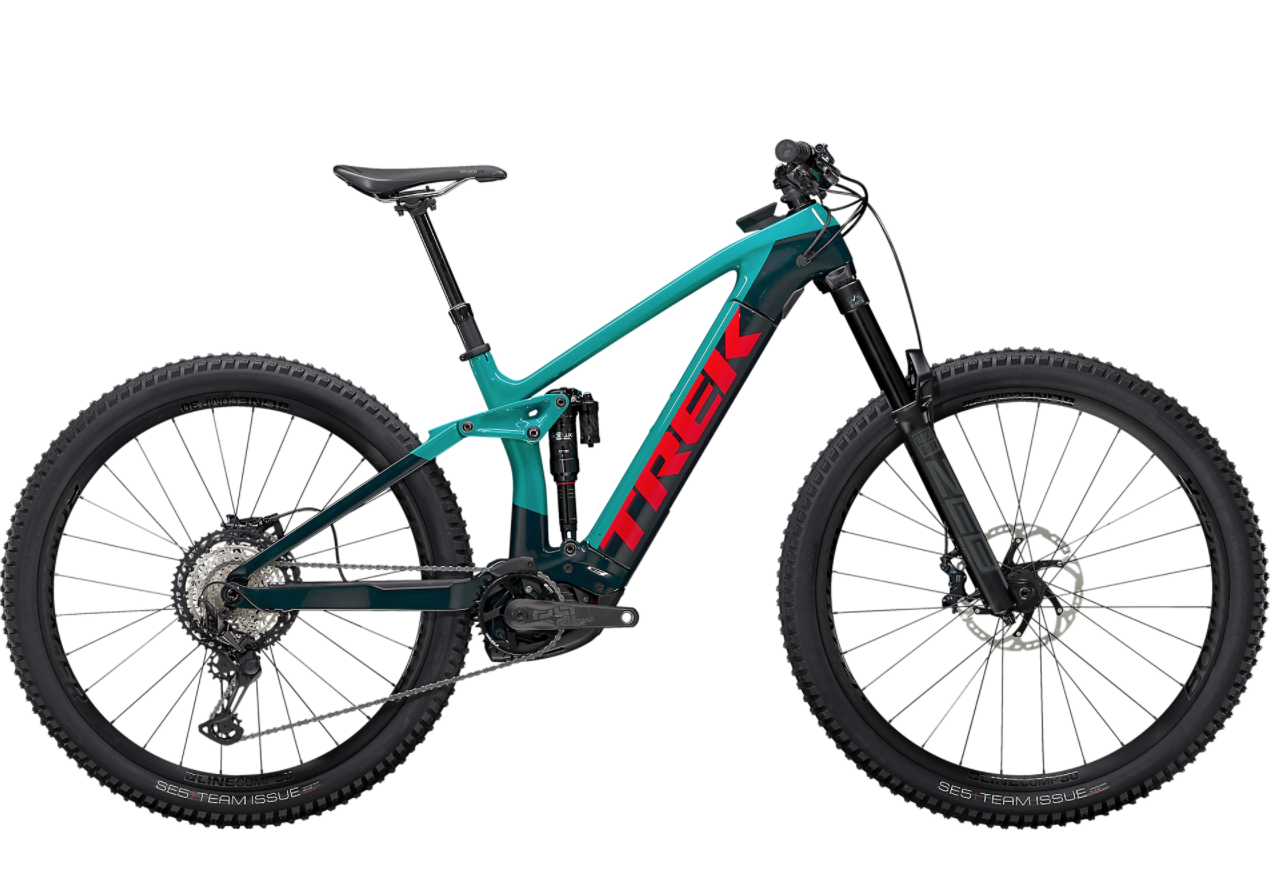

The Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you straight back up the mountain. It features amazing upgrades to the suspension, drive train and brakes for exceptional performance on the gnarliest runs.

Specification
Features

The new, better-than-ever Bosch motor is smaller, lighter and more efficient. It feels more natural while you’re pedalling, and has less drag when you’re not

The full-colour Kiox controller displays ride info, connects with your Bluetooth® enabled devices and has a built-in theft prevention feature

RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control

Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
Description
Weight M - 22.34 kg / 49.25 lbs (with tubes)
Frameset
Frame OCLV Mountain Carbon main frame & stays, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Fork RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Rear suspension NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5mm
Wheels
Wheels Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110 front, Boost148 rear
Tires Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60"
Drivetrain
Shifters Shimano XT M8100, 12 speed
Rear derailleur Shimano XT M8100, long cage, 51T max cog
Crank E*thirteen E*spec Plus, 34T
Cassette Shimano XT M8100, 10-51, 12 speed
Chain Shimano XT M8100, 12 speed
Pedals VP-536 nylon platform
Components
Saddle Bontrager Arvada, austenite rails, 138mm width
Seatpost Bontrager Line Elite Dropper, internal routing, 31.6mm
Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise
Stem Bontrager Line Pro, 35mm, Knock Block, 0 degree
Grips Bontrager XR Trail Comp, nylon lock-on
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brakeset Shimano SLX M7120 4-piston hydraulic disc
Accessories
Battery Bosch PowerTube 625
Controller Bosch Kiox with Anti-theft solution
Motor Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm, 25km/h
