Name: Rail 5 Crimson/Lithium Grey
Brand: TREK
SKU: 5265665
Price: 6499.99 AUD
Availability: OutOfStock

Rail 5 Crimson/Lithium Grey - Mackay Cycles - [product_SKU] - TREK

$7,499.99 $6,499.99 Save $1,000.00

Tax included.

Quantity

Size

Click n Collect available

$150 shipping East Coast of Australia for Specialized, GT and Cannondale bikes

Free shipping on parts and accessories orders over $50

In stock, ready to ship
Backordered, shipping soon

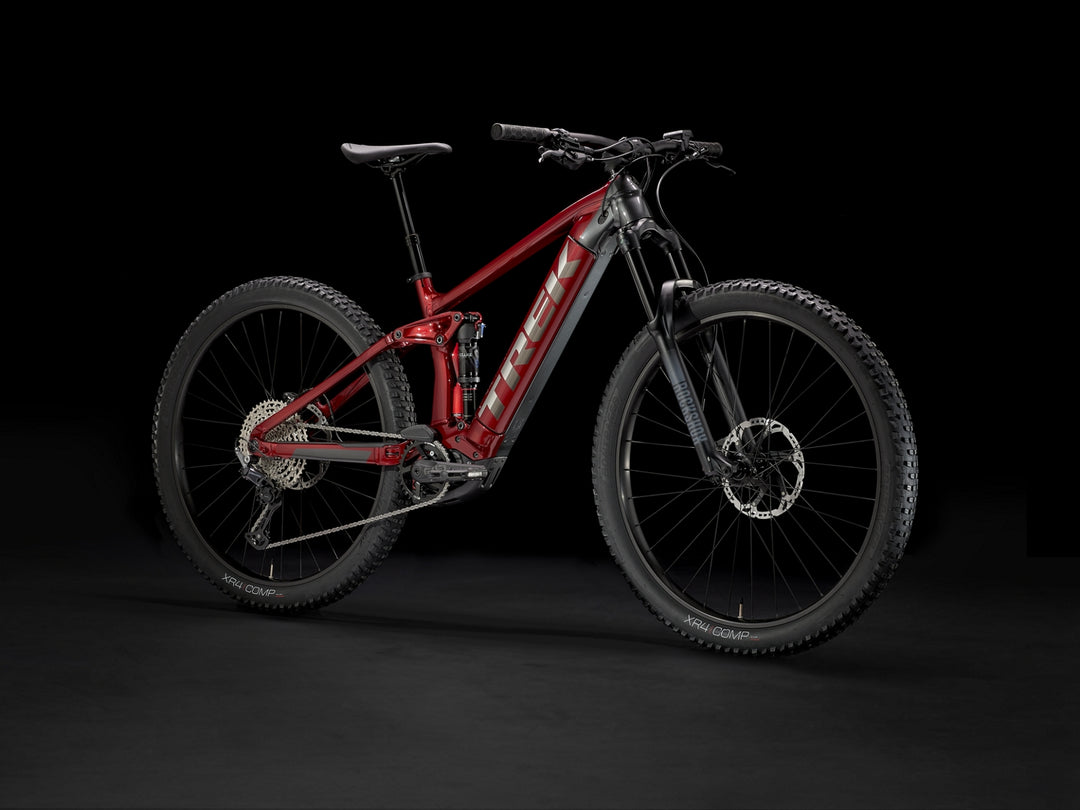

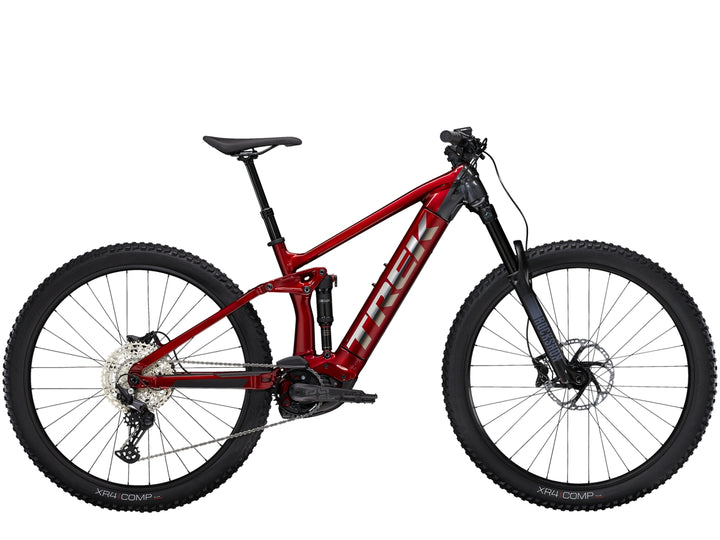

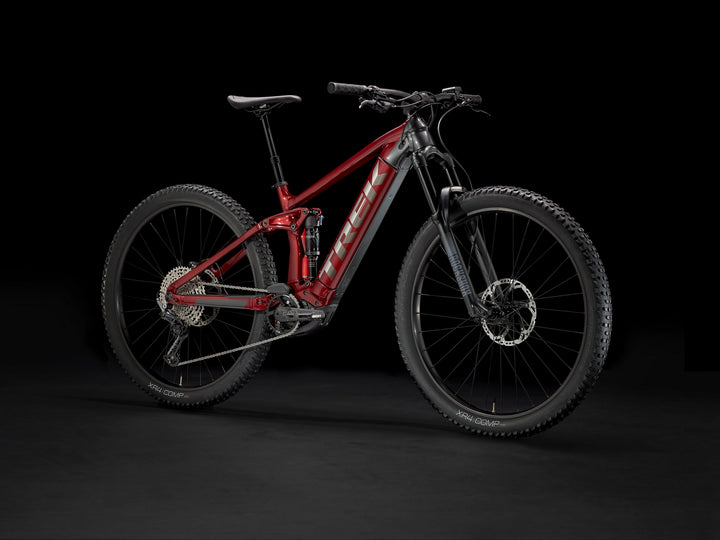

The Rail 5 is a full-suspension electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that's basically like having your own shuttle.

You’re looking for an e-MTB that’s just as ready to shred as non-electric trail bikes. You want a powerful Bosch drive system that’ll propel you up climbs so you can hit lap after lap.

A burly alloy frame with 150 mm of rear travel that fully encases a 500 Wh battery, an e-MTB optimised 160 mm RockShox 35 Gold RL fork, a powerful Bosch Performance Line CX (250 W, 85 Nm) motor that assists up to 25 km/h and a Purion controller. Plus, a 1x12 drive train with a wide gear range so you can always find the ideal cadence for the motor, a dropper post, powerful 4-piston brakes for more downhill confidence and 29er wheels with nimble yet grippy 2.6" tyres.

Rail 5 is our best-value long-travel e-MTB. It's equally as capable as our regular long-travel trail bikes, it just gets you back to the top in a flash. The powerful Bosch drive systems and durable part spec make for long-lasting fun.

Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lift necessary

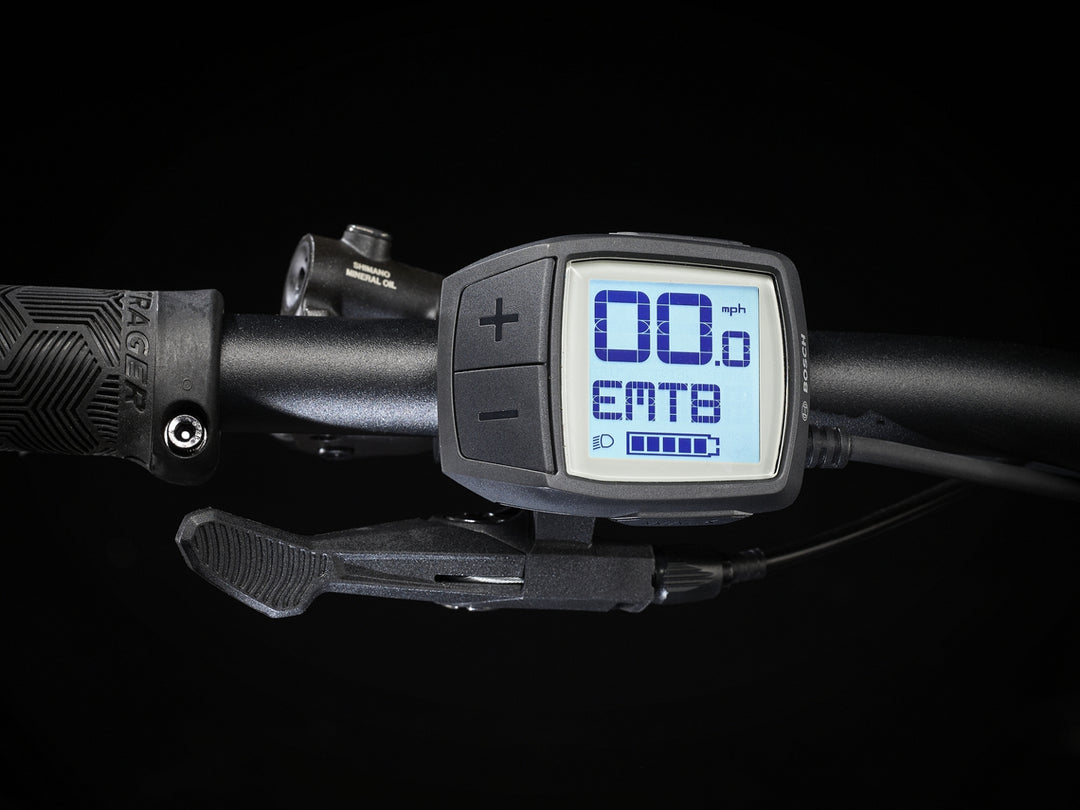

The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain

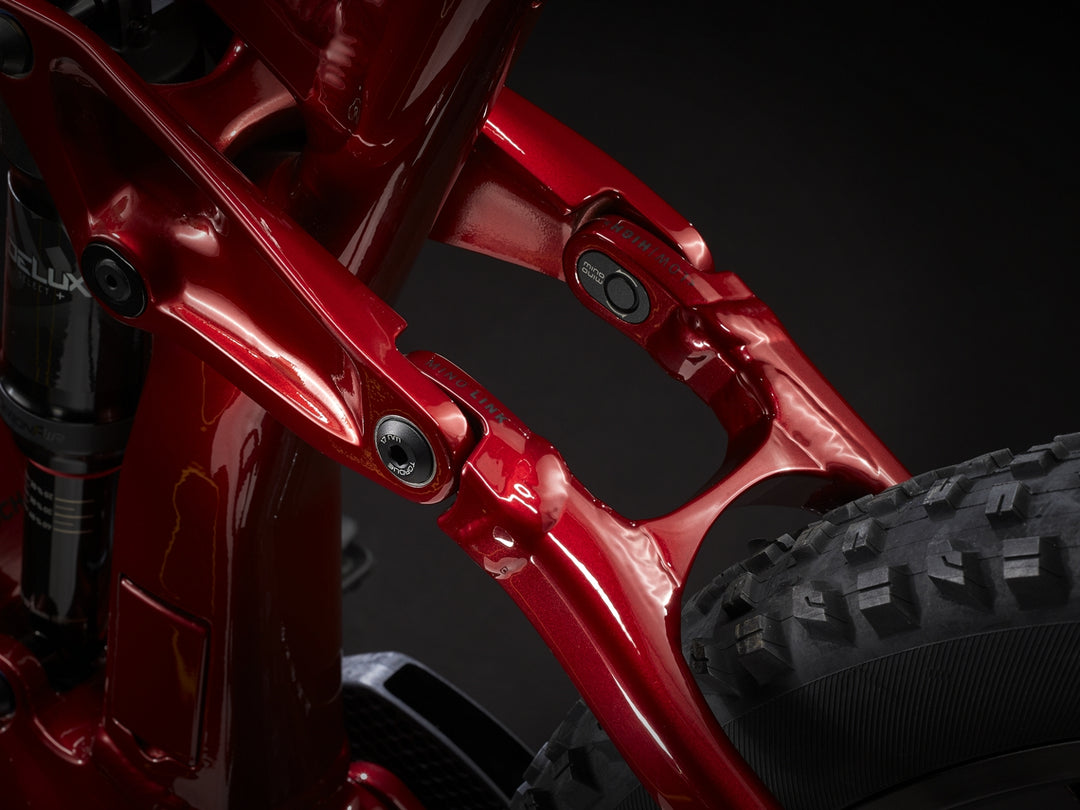

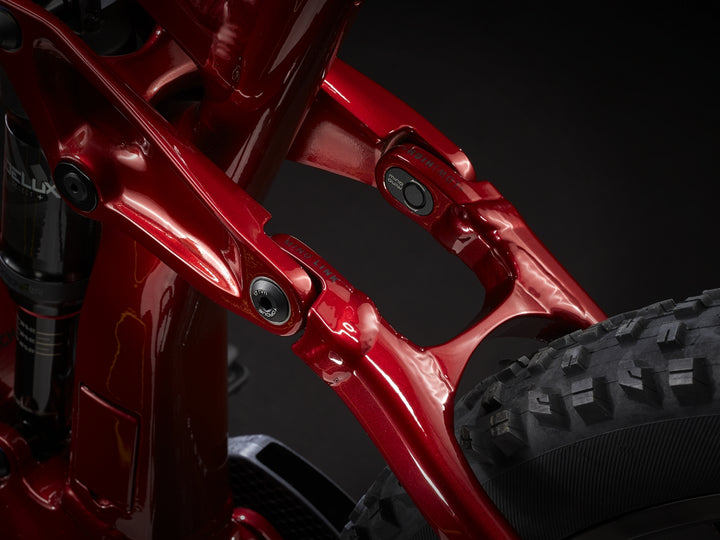

Made with the same hard-charging frame tech as Remedy, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
The dropper post lets you lower your saddle on the fly so it's out of the way on descents

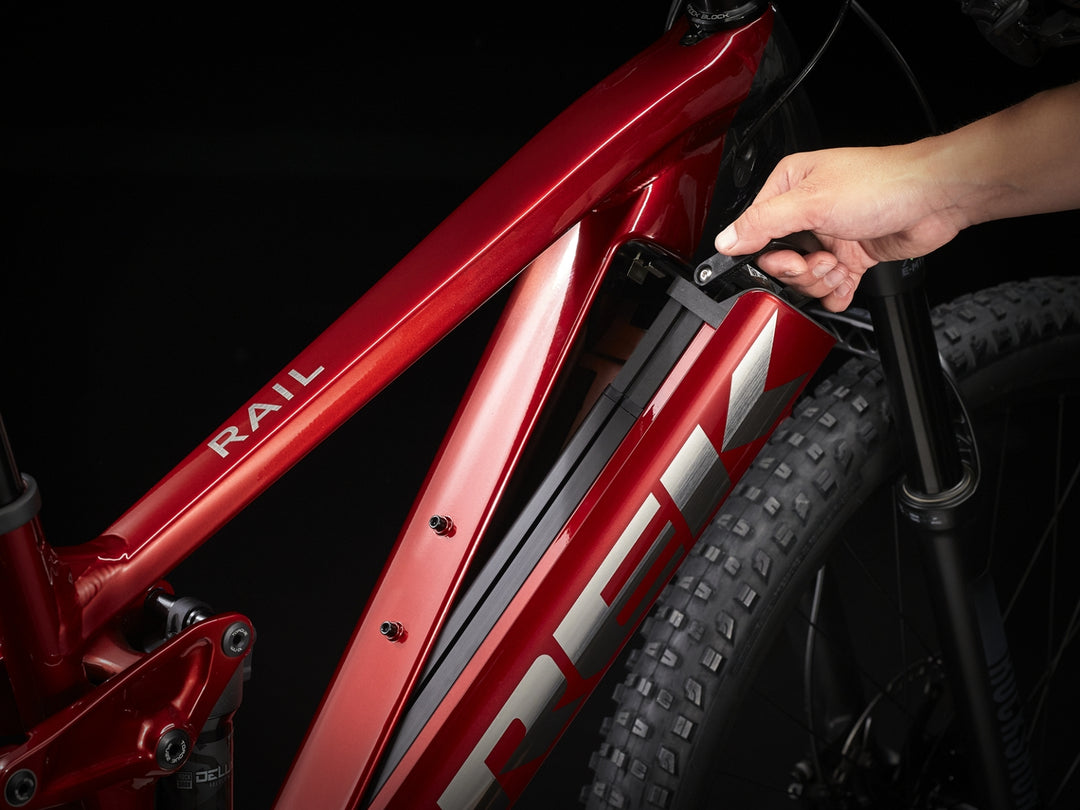

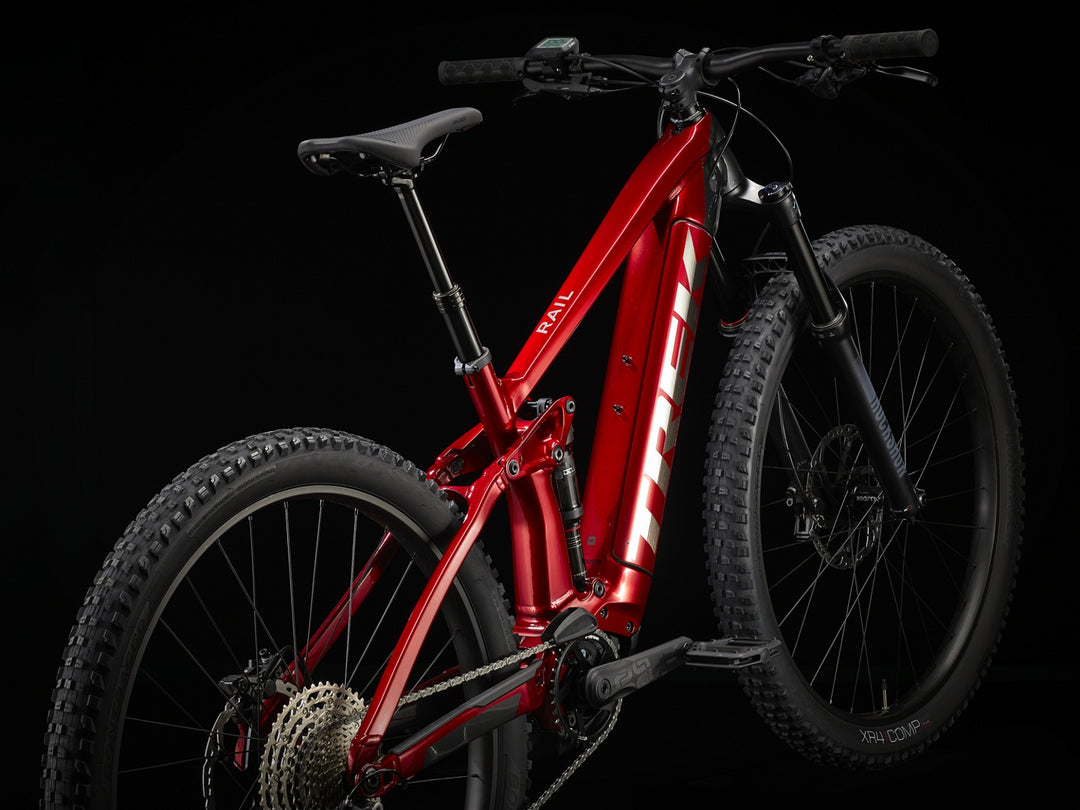

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.

*spec applies to all sizes unless otherwise noted

Frameset

Frame	Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork	RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

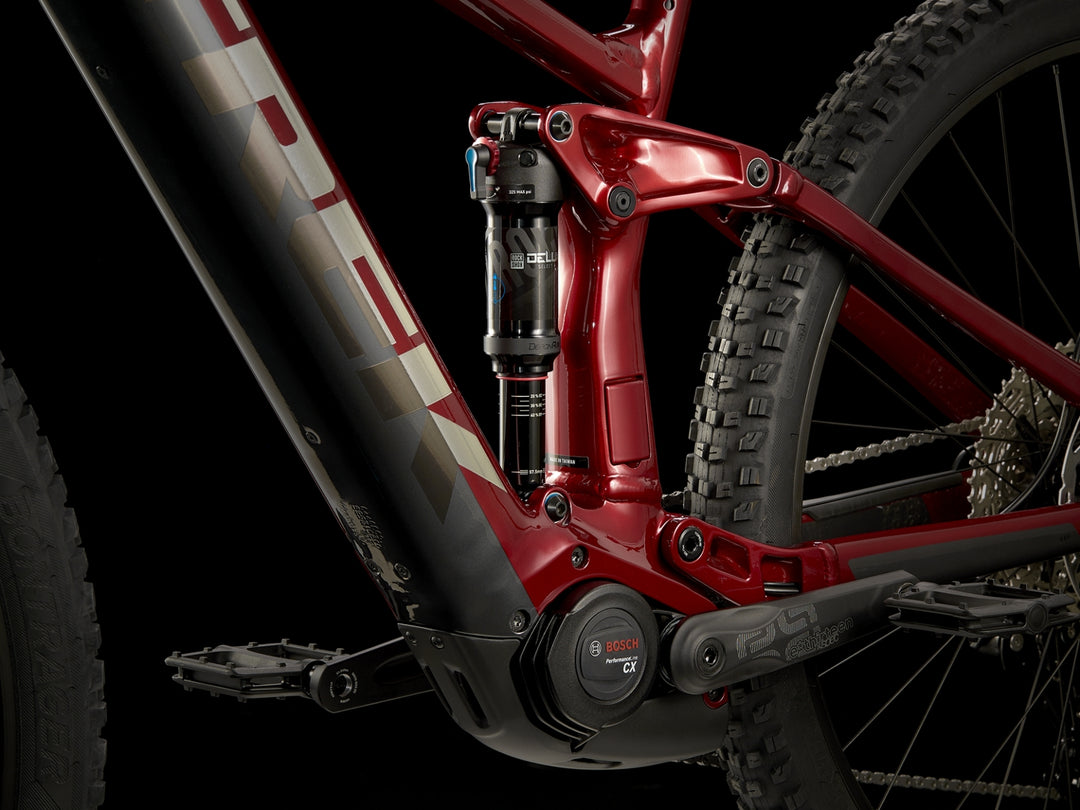

Shock	RockShox Deluxe Select+, 230 mm x 57.5 mm
Max compatible fork travel	170mm (580mm axle-to-crown)

Wheels

Hub front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Spokes	14 g stainless steel
Tyre	Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60''
Max tyre size	Frame: 29x2.60" Fork: See manufacturer

Drivetrain

Shifter	Shimano Deore M6100, 12-speed
Rear derailleur	Shimano Deore M6100, long cage
Crank	Ethirteen Espec Plus, 34T, 165 mm length

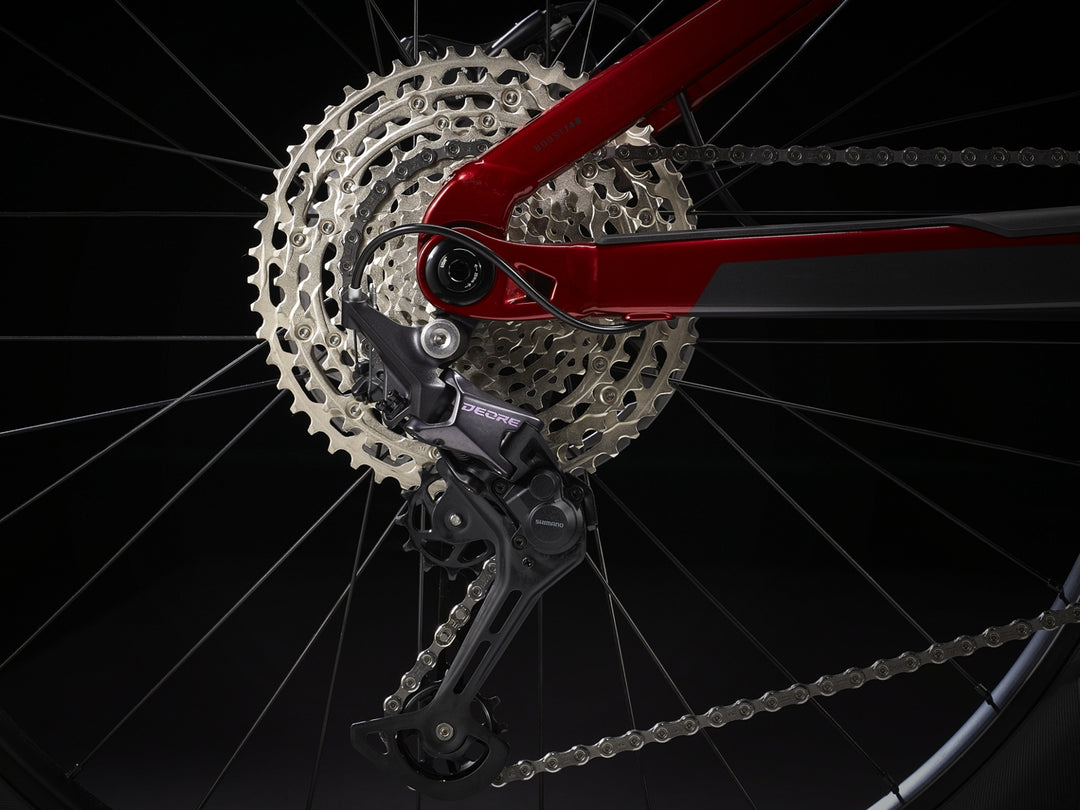

Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Pedal	VP-536 nylon platform
Max. chainring size	34T

Components

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
*Seatpost	Size: M, L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Head set	Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor	Shimano RT76, 6-bolt, 203 mm

Accessories

Battery	Bosch PowerTube, vertical, 500 wh

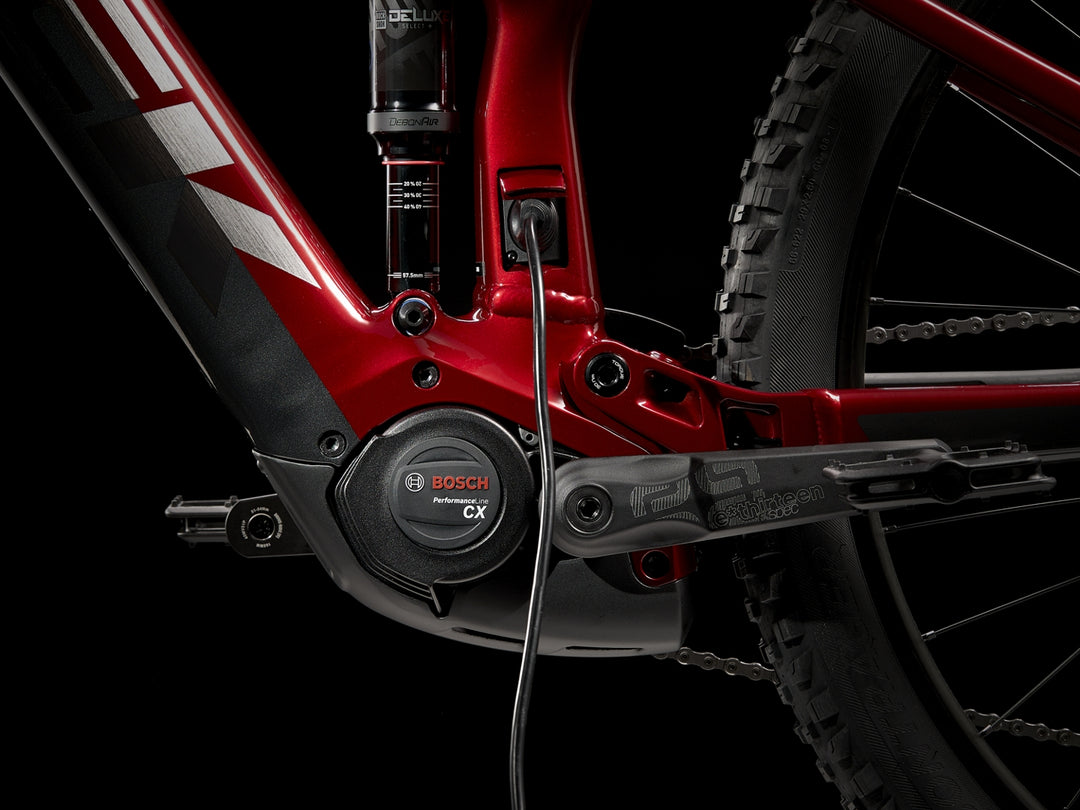

Charger	Bosch compact 2A, 100–240V, smart system
Controller	Bosch Purion

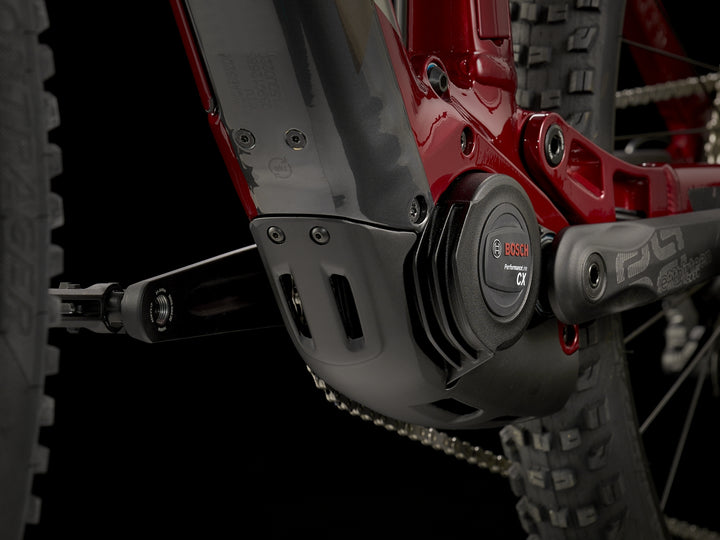

Motor	Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand

Weight

Weight	M - 23.88 kg / 52.65 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on trekbikes.com are for general comparison purposes only. To find your perfect fit, visit an authorised retailer, where an expert skilled at sizing will help you find the appropriate bike and size for your individual needs.
