Marlin 4 Gen 2 - Dinister Black

Regular price$849.99
/
Tax included.
Size

  • Click n Collect available
  • $150 shipping East Coast of Australia for Specialized, GT, Focus and Cannondale bikes
  • Free shipping on parts and accessories orders over $50

  • Low stock - 1 item left
  • Backordered, shipping soon

The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It's ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting and mounts for a rack and mudguards make this a great bike for trail riders and campus commuters alike.

*Please note – spec applies to all sizes unless listed separately

Frameset
*Frame Size: XS , S
Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR
Size: M , ML , L , XL , XXL
Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork Size: XS
SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel 100 mm (XS and S: 490 mm axle-to-crown, M and up: 509 mm axle-to-crown)
Wheels
Skewer rear 152x5 mm QR
Max tyre size Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer
Drivetrain
*Shifter Size: XS , S , M , ML , L , XL , XXL
Shimano EF500, 2-speed
Size: XS , S , M , ML , L , XL , XXL
Shimano Altus EF500, 7-speed
Front derailleur Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

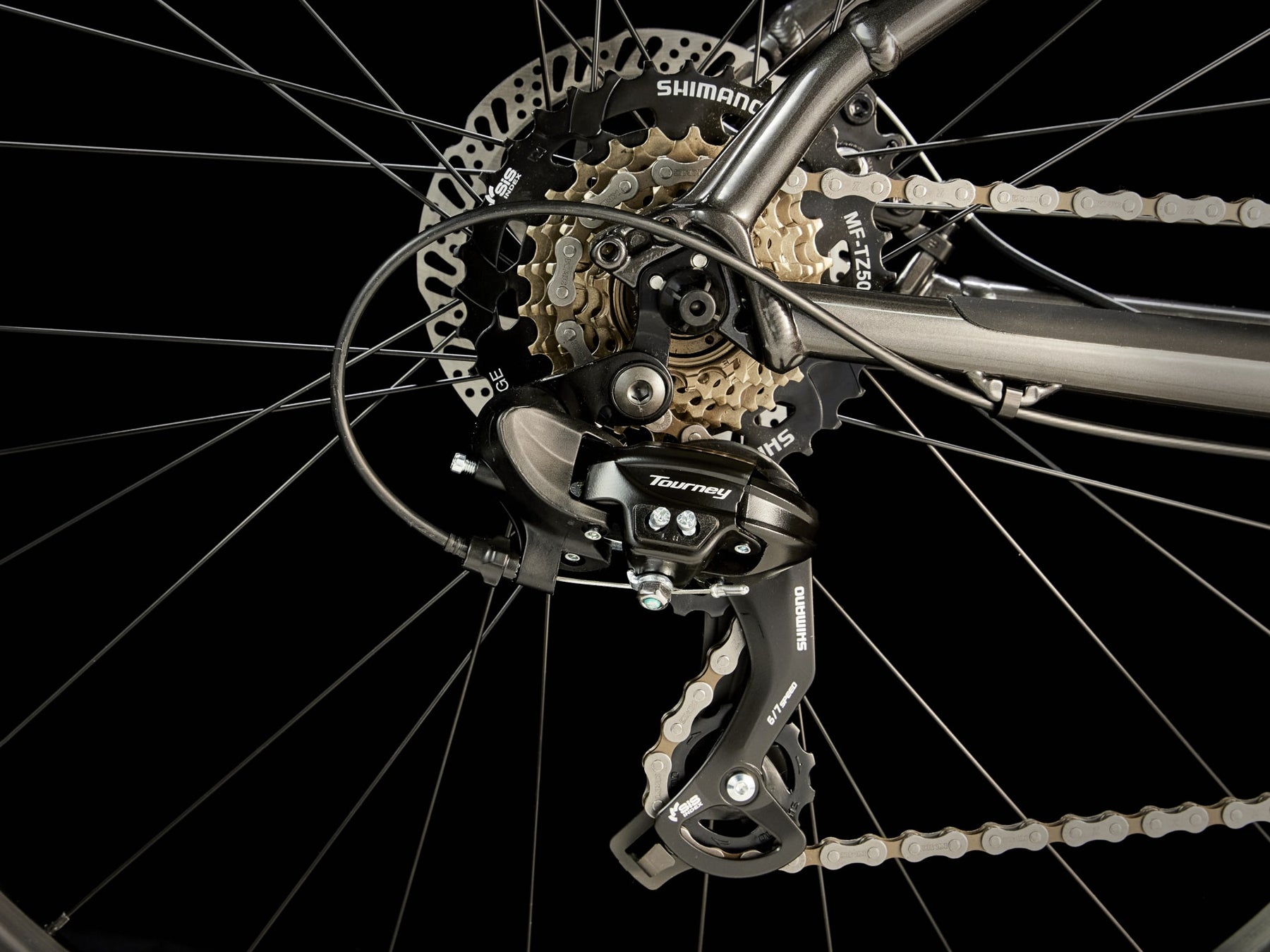

Rear derailleur Shimano Tourney TY300
*Crank Size: XS , S , M
ProWheel TM-CY10, 36/22, 170 mm length
Size: ML , L , XL , XXL
ProWheel TM-CY10, 36/22, 175 mm length
Bottom bracket VP BC73, 73 mm, threaded cartridge
Cassette Shimano TZ500, 14-34, 7-speed
Chain KMC Z7, 7-speed
Pedal VP-536 nylon platform
Max. chainring size 1x/2x: 34T, 3x: 42T
Components
Saddle Bontrager Verse Short, stainless steel rails
*Seatpost Size: XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: XS , S
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: XS , S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size: ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Size: XL , XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Head set Semi-integrated, 1-1/8"
*Brake Size: XS , S , M , ML , L , XL , XXL
Tektro MD-M280 mechanical disc
Size: XS , S , M , ML , L , XL , XXL
Tektro MD-M281 mechanical disc
Brake rotor Tektro, 6-bolt, 160mm
Rotor size Max brake rotor sizes - Frame: 180mm, min 160mm, Fork: see fork manufacturer
Weight
Weight M - 14.60 kg / 32.19 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
