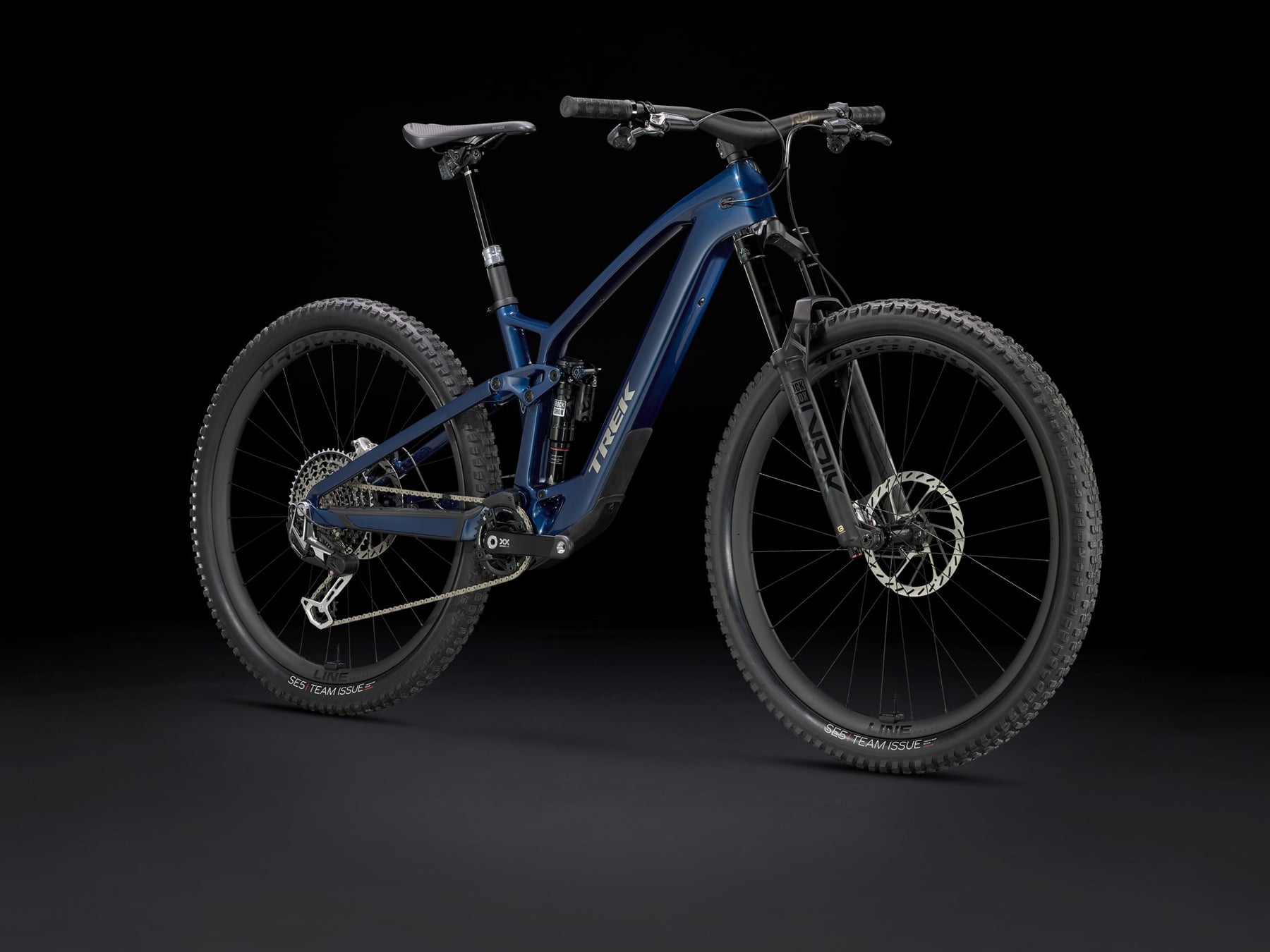

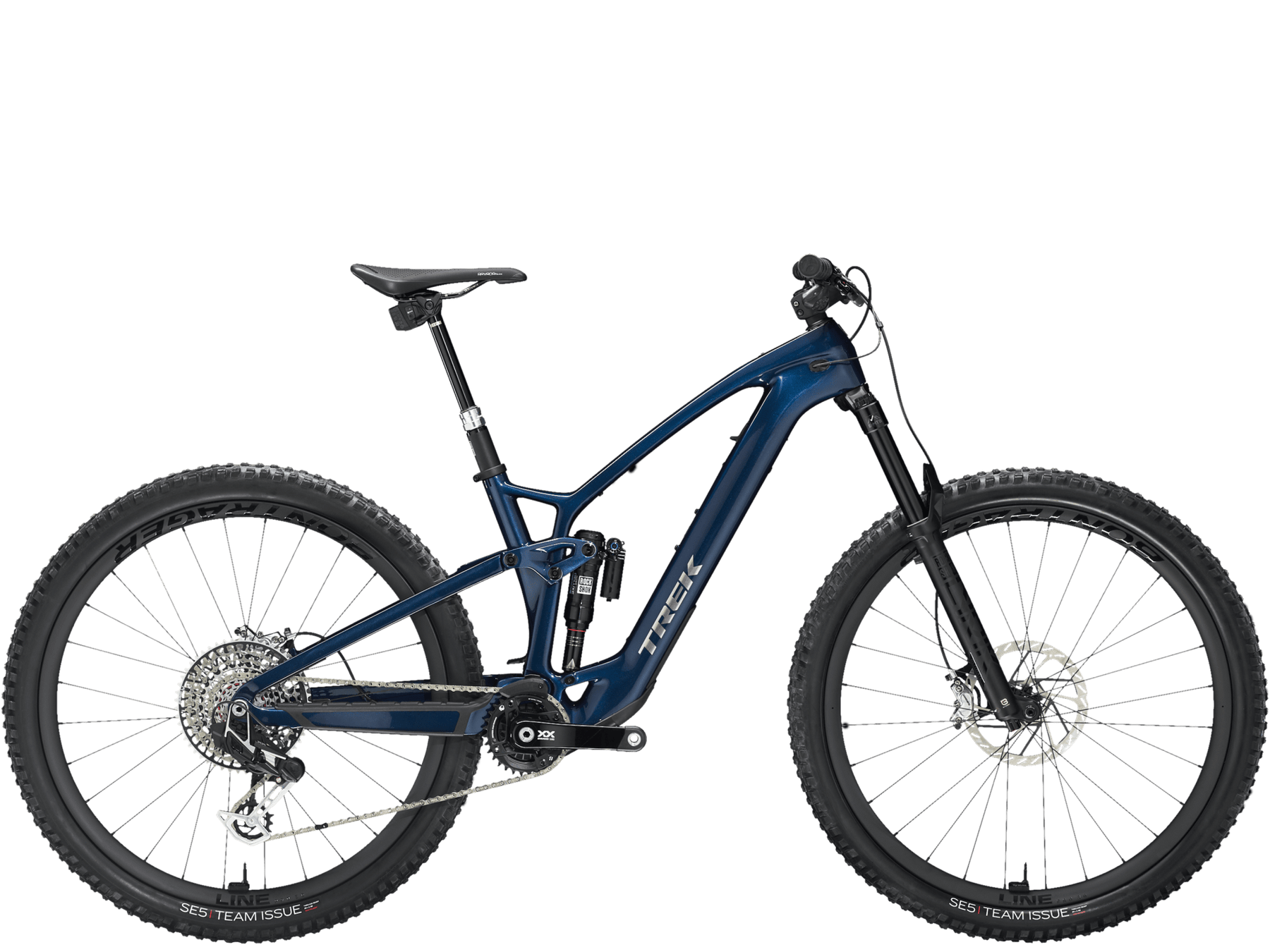

Fuel EXe 9.9 XX AXS T-Type Mulsanne Blue

The Fuel EXe 9.9 XX AXS is mountain biking elevated. It rolls into untouched terrain that lies between traditional mountain bikes and electric bikes with new technology that silently blends in with nature and the finest components the industry offers. From its light and stiff carbon frame and wheels to a tiny but mighty TQ transmission, the EXe 9.9 is eager to rally any trail. It spares no expense, with a SRAM XX AXS transmission that's as light as it is precise, and it's loaded with an ultimate RockShox suspension package equipped with AirWiz technology to keep your set-up dialled just to your liking.

 Why you'll love it

1. You don't have to settle. You get the best carbon, components and a motor that quietly blends in with the trail
2. SRAM's XX AXS wireless transmission gives you precise control of your shifts with a package that's light, rugged and keeps shifts clean even under load
3. The RockShox suspension package comes equipped with AirWiz technology that makes dialling your suspension a breeze
4. Its tiny-but-mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel

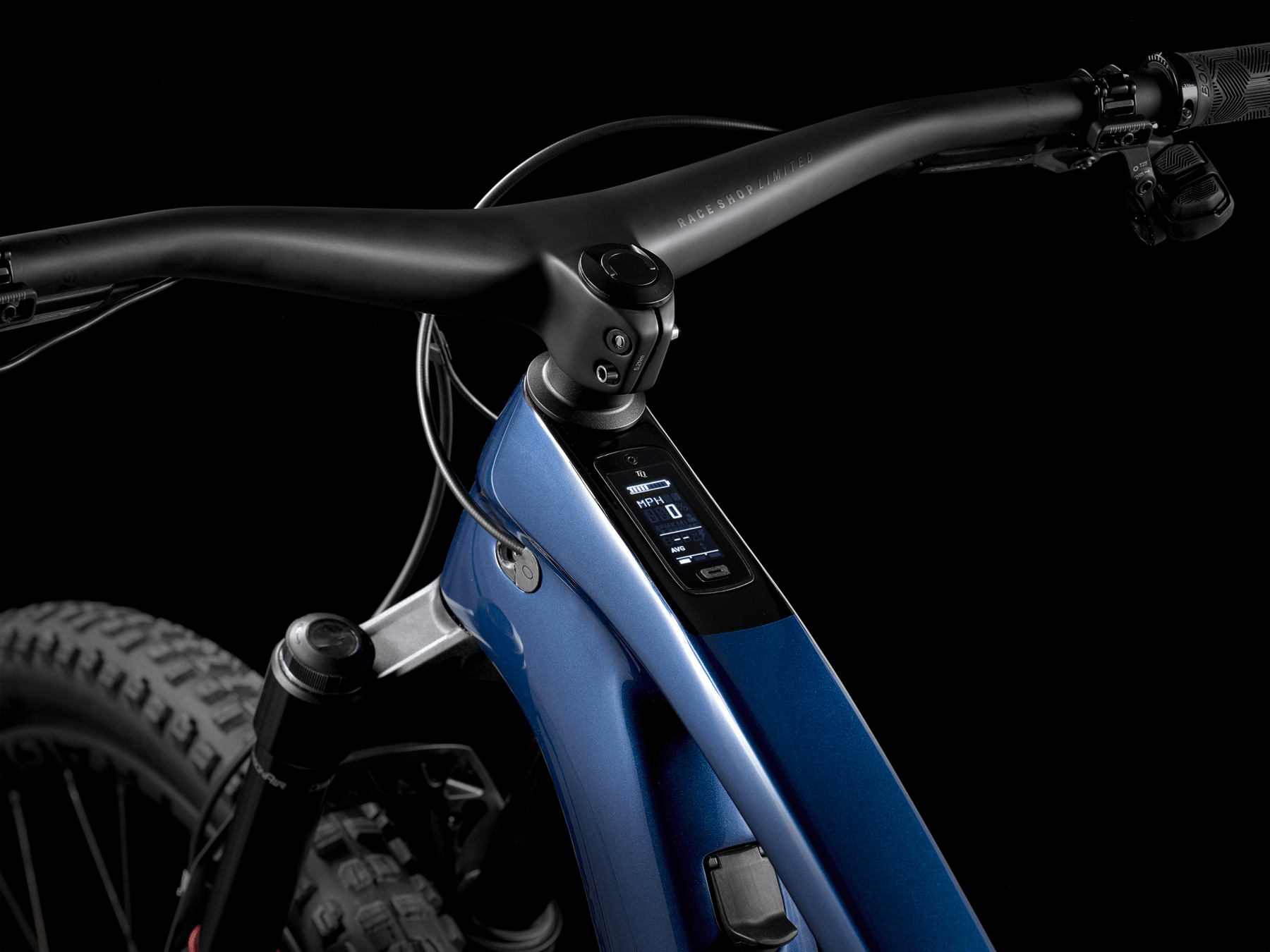

5. The integrated display, charging port, and controls are simple to use, sleek and intuitive

*Please note – spec applies to all sizes unless listed separately

Frameset

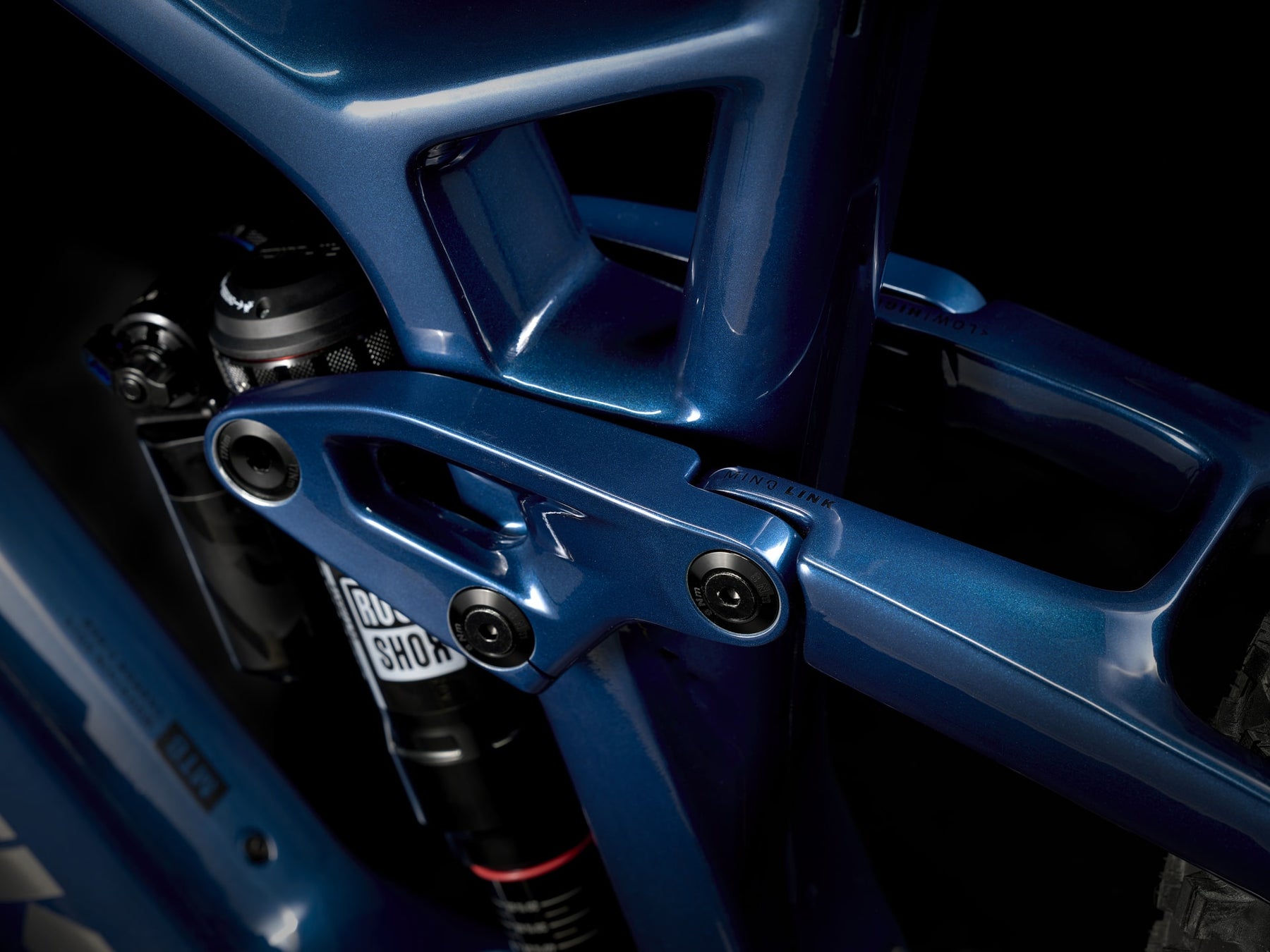

Frame	OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork	RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 150 mm travel
Shock	RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205 mm x 60 mm
Max compatible fork travel	160mm

Wheels

Wheel front	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
Wheel rear	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle, 29"
Skewer rear	Bontrager Switch thru-axle, removable lever
Tyre	Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part	Quarq TyreWiz tyre pressure monitors
Rim strip	Bontrager TLR
Max tyre size	Frame: 29x2.50", Fork: See manufacturer

E-system

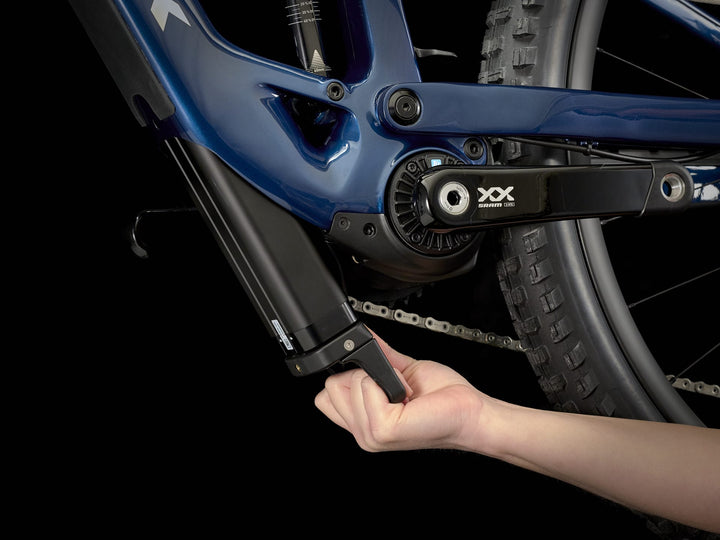

*Battery	Size: S, M, L, XL TQ 360Wh
	Size: S, M, L, XL SRAM eTap battery pack (with charger)
Charger	TQ 4A charger

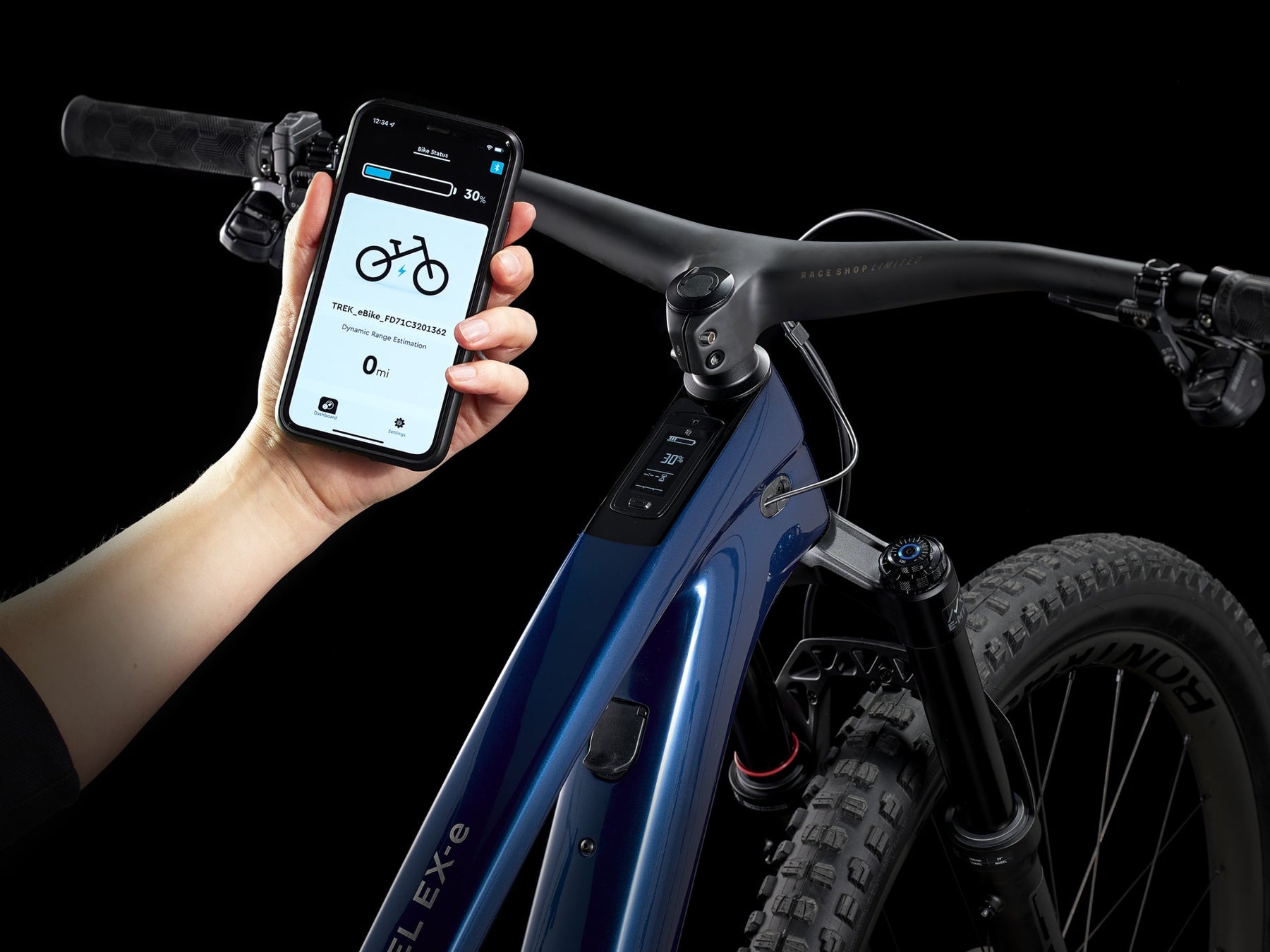

Computer	TQ LED display with Bluetooth & ANT+ connectivity

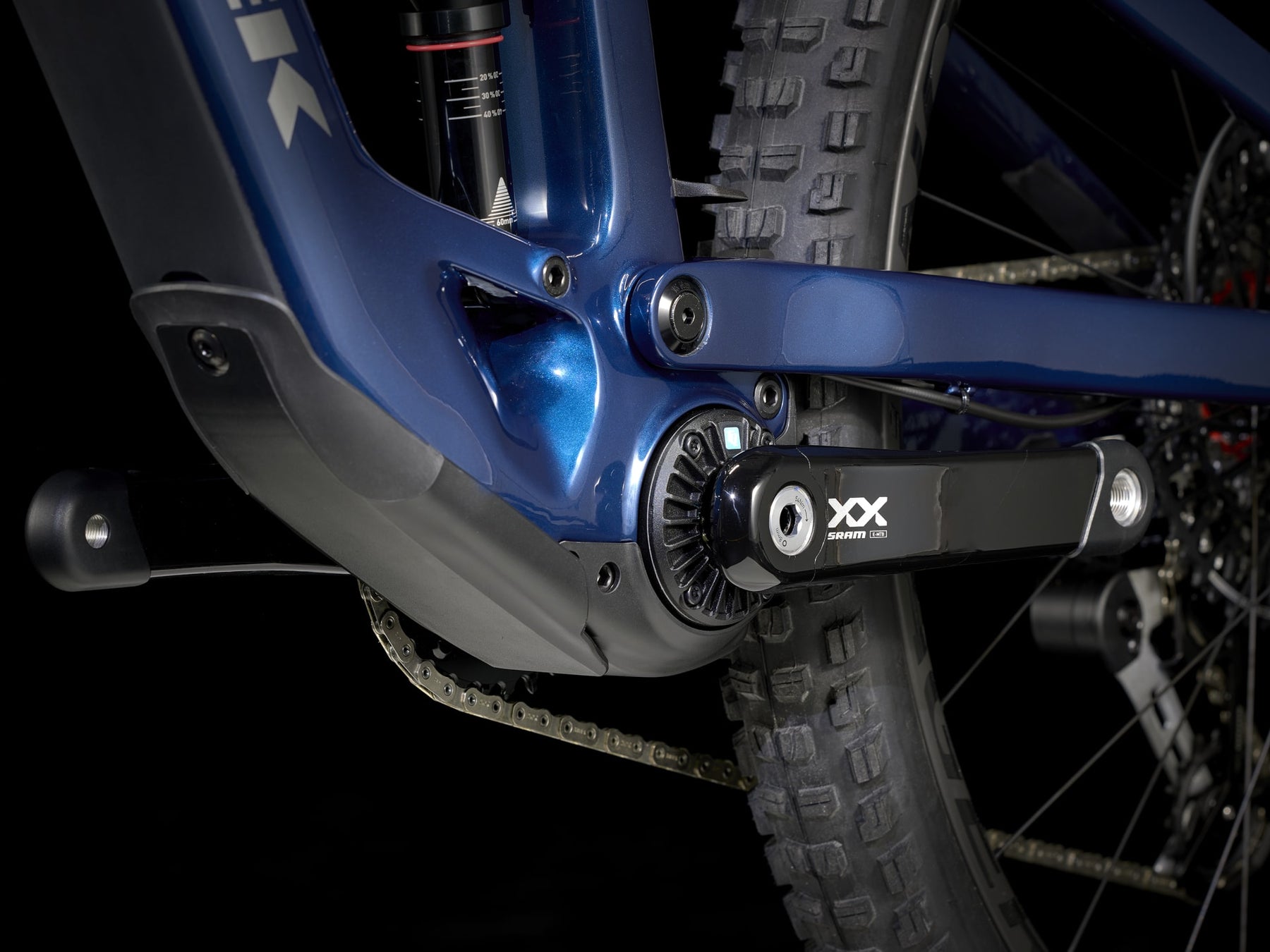

Motor	TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain

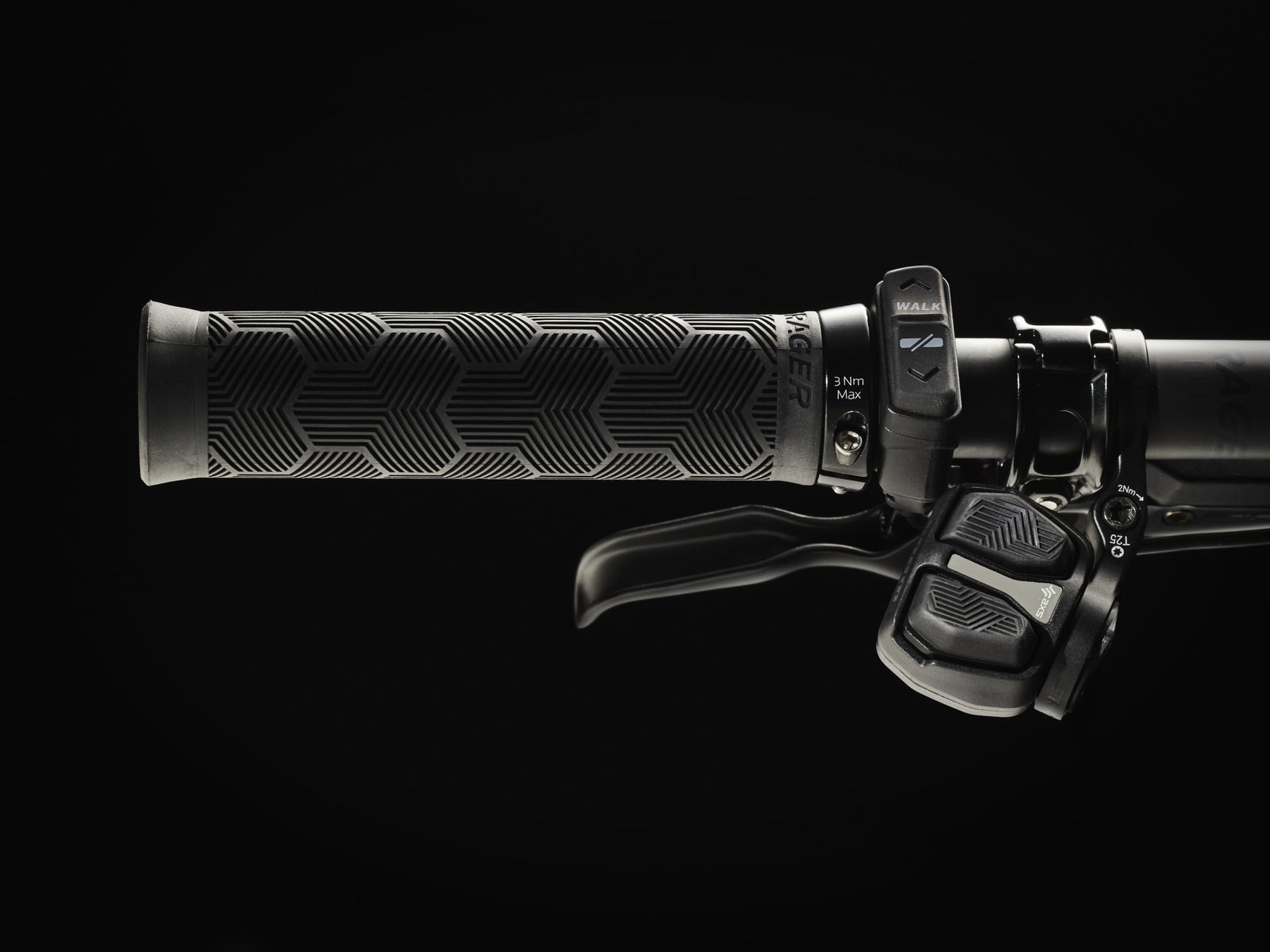

Shifter	SRAM AXS POD Ultimate, paired with dropper
Rear derailleur	SRAM XX Eagle AXS, T-Type
Crank	SRAM XX, 165 mm length
Chainring	SRAM T-Type, 32T, alloy
Cassette	SRAM Eagle XS-1297, T-Type, 10-52, 12-speed
Chain	SRAM XX Eagle, T-Type, 12-speed
Max. chainring size	1x: 34T, min 30T

Components

Saddle	Bontrager Arvada, austenite rails, 138 mm width
*Seatpost	Size: S RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
	Size: M RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
	Size: L, XL RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
*Handlebar/stem (integrated)	Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
	Size: M, L, XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips	Bontrager XR Trail Elite, nylon lock-on
Head set	Integrated cartridge bearing, 1-1/8" top, 1.5" bottom

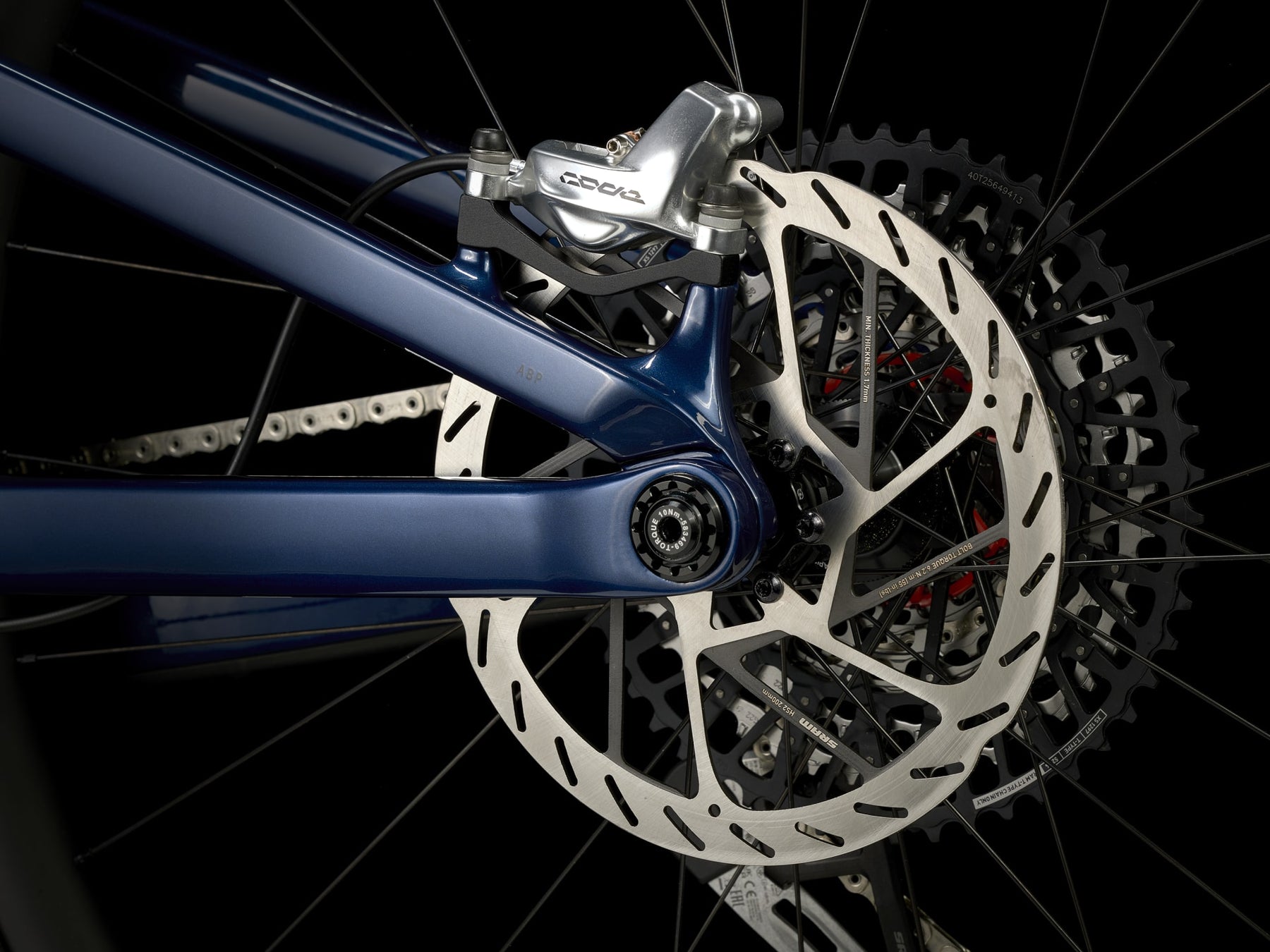

Brake	SRAM Code Ultimate 4-piston hydraulic disc
Brake rotor	SRAM 6-bolt, 200 mm
Rotor size	Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories

Tool	Bontrager BITS integrated multi-tool

Weight

Weight	M – 18.50 kg/40.79 lb (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
