Name: Fuel EXe 9.8 GX AXS T-Type Deep Smoke
Brand: TREK
SKU: 5302512
Price: 13499.99 AUD
Availability: OutOfStock

Fuel EXe 9.8 GX AXS T-Type Deep Smoke - Mackay Cycles - [product_SKU] - TREK

$15,999.99 $13,499.99 Save $2,500.00

Tax included.

Quantity

Size

Click n Collect available

Lifetime warranty on frame

Special Order

Not in stock? Reach out to us, and we'll help you place a special order!

The Fuel EXe 9.8 GX AXS takes an evolved approach to e-mountain biking with a revolutionary motor that packs space-age technology in a tiny but mighty package. It's built on a carbon fibre chassis that's light, stiff and nimble for a lively and playful trail feel. And to keep a good thing going, it's topped off with carbon wheels, the wireless shifting technology of a SRAM GX AXS transmission and the silky-smooth suspension of a RockShox Lyrik Select+ fork and SuperDeluxe Select+ rear suspension.

You want a lively trail bike that feels like a traditional mountain bike in quick, techy terrain, but gives you a little boost in pedal power on the way back up. You want space-age technology everywhere from motor to group set, and upgraded suspension that keeps you floating on the trail. You don't want to lose out on the natural experience of mountain biking, and want a refined motor that quietly assists while you ride.

An OCLV Mountain Carbon frame equipped with a fully encased 360 Wh battery and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. Plus, a 150 mm RockShox Lyrik Select+ fork with DebonAir spring and Charger 2.1 RC damper, and 140 mm RockShox Super Deluxe Select+ rear suspension. The cherry on top? SRAM's GX AXS transmission that keeps shifts crispy, even under load.

The Fuel EXe 9.8 is a refined trail bike with just the right amount of power for scorching climbs before turning around to rally though technical and flow trails alike. It's equipped with future-minded technology, like the space-approved TQ transmission and wireless SRAM GX AXS shifting that keeps your cockpit minimalist. Finally, carbon wheels and an upgraded RockShox suspension package keeps you floating on the trail even when the conditions get hairy.

You get a bike that rides like your favourite trail bike on descents and gives you adaptive assist on the climbs that doesn't make you feel like a cheat
Its tiny-but-mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, plus it ramps up power with you for a natural ride feel

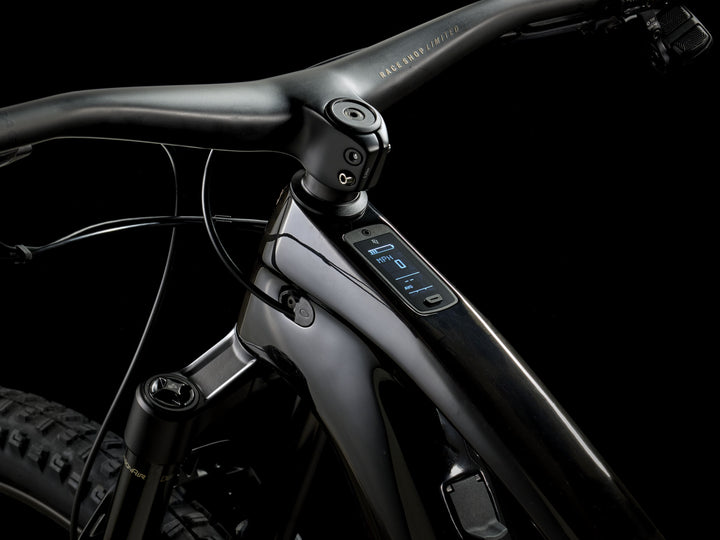

The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional mountain bike
The battery is simple to remove with an Allen key – no proprietary tools or black magic necessary
You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame	OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork	RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
Shock	RockShox Super Deluxe Select+ RT, 205mm x 60mm

Wheels

Wheel front	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29"
Skewer rear	Bontrager Switch thru-axle, removable lever
Tyre	Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR

E-system

Battery	TQ 360Wh
Charger	TQ 4A charger
Computer	TQ LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain

Shifter	SRAM AXS POD
Rear derailleur	SRAM GX Eagle AXS, T-Type
Crank	SRAM GX, 165 mm length
Chainring	SRAM T-Type, 32T, alloy
Cassette	SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain	SRAM GX Eagle, T-Type, 12-speed

Components

Saddle	Bontrager Arvada, austenite rails, 138 mm width
*Seatpost	Size: S Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
	Size: M Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
	Size: L Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
	Size: XL Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
*Handlebar/stem (integrated)	Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
*Handlebar/stem (integrated)	Size: M, L, XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips	Bontrager XR Trail Elite, nylon lock-on
Head set	Integrated cartridge bearing, 1-1/8" top, 1.5" bottom
Brake	SRAM CODE Bronze 4-piston hydraulic disc
Brake rotor	SRAM 6-bolt, 200 mm

Weight

Weight	M – 18.80 kg/41.45 lb (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary i
