Fuel EX 9.7 Matte Carbon Blue Smoke

5259316

Regular price $6,499.99 Sale price $4,999.99
Save 23%
/
Tax included.



  • Click’n’collect available on all bikes and accessories
  • Free shipping on clothing, parts and accessories for orders over $50
  • Specialized, GT and Cannondale bikes ship-to-home available for $150 for the East Coast of Australia

Size

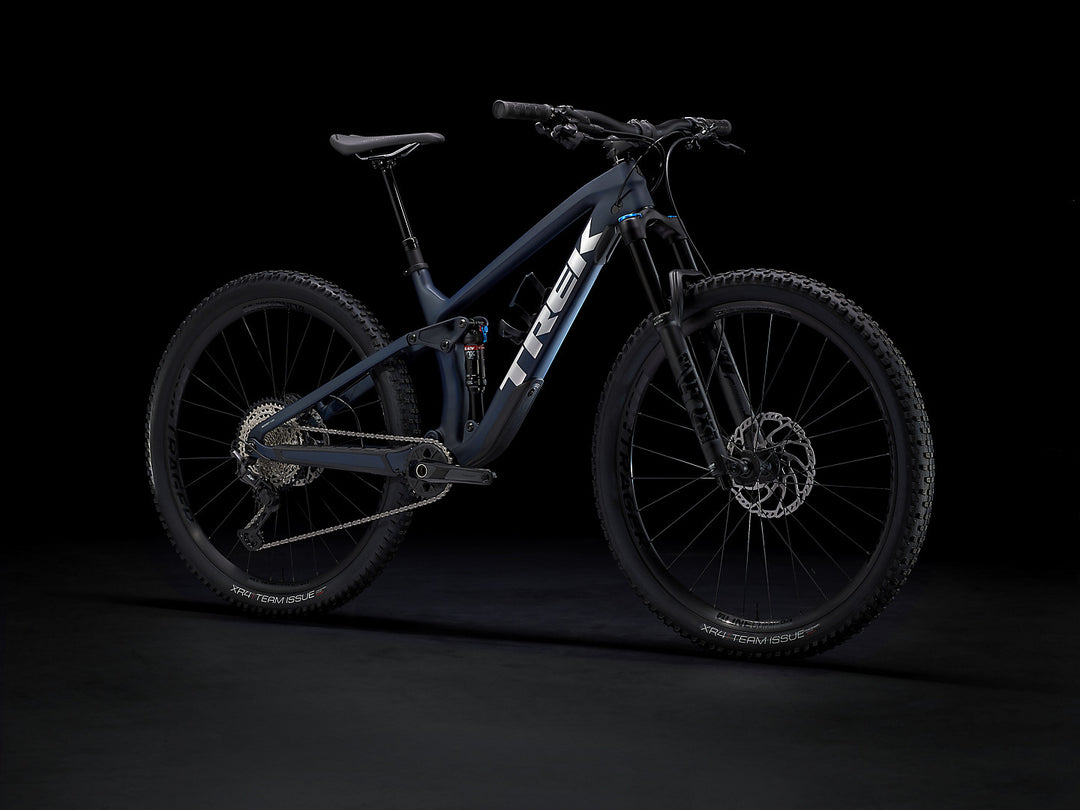

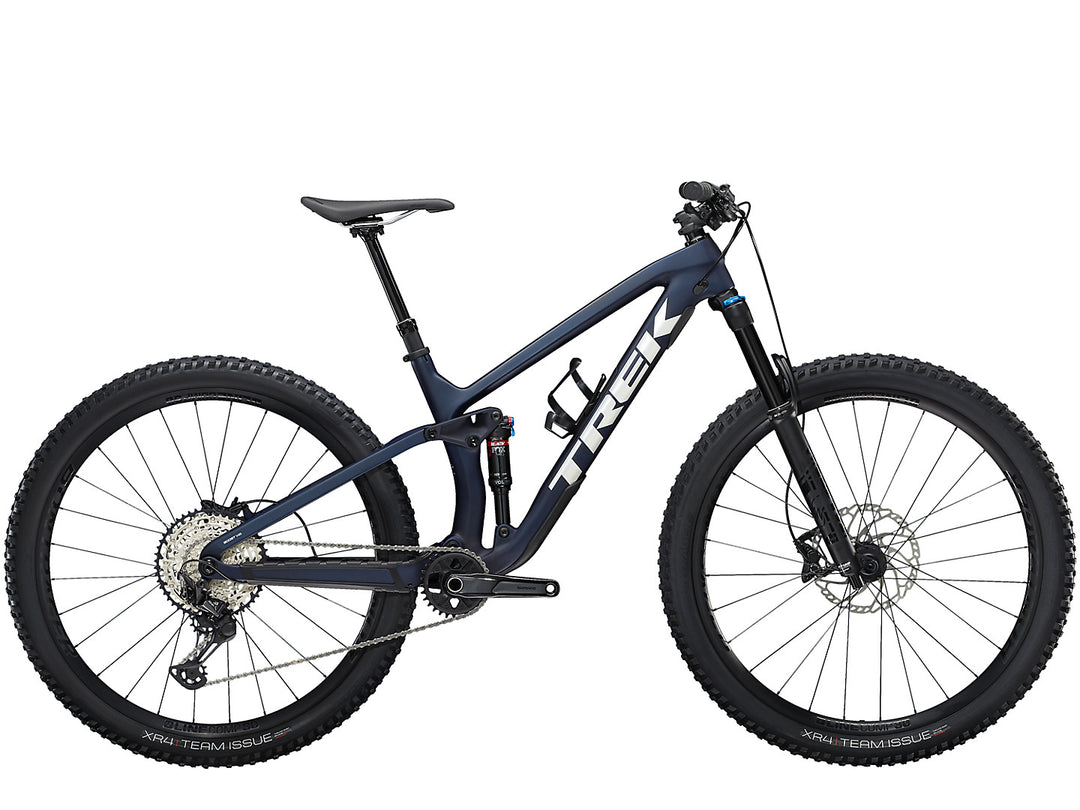

Fuel EX 9.7 is our most affordable full suspension carbon trail bike. It pairs a lightweight, smooth-riding frame with a beefy 140 mm FOX 36 fork and 130 mm FOX Float Performance shock, Shimano SLX/XT drivetrain and powerful 4-piston brakes for a fast, fun mountain bike that's a ripper now, and ripe for upgrades later.

It's right for you if...

You want one carbon trail bike that can take on every adventure, from flowy singletrack to the gnarliest descents and most brutal climbs. You don't mind sacrificing a little on the parts so you can get the best frame right now.

The tech you get

A lightweight and stiff full OCLV Mountain Carbon frame with internal storage, a 140 mm FOX Rhythm 36 fork, 130 mm of rear travel with a FOX Float Performance rear shock with Trek's efficient RE:aktiv damper, a wide-range 1x12 Shimano SLX/XT drivetrain, Line Comp 30 TLR wheels with a 54-tooth Rapid Drive rear hub, a Bontrager Line dropper post and powerful Shimano 4-piston hydraulic disc brakes.

The final word

Full suspension control on a lightweight and trail-tough carbon frame makes for a fun and fast ride. It's rugged enough for rowdy descents, but still spry for lively climbing and accelerating.


See it in action


Why you'll love it

  1. Don't confuse the Fuel EX 9.7 with other value carbon models on the market – this bike provides an outstanding frame and suspension, with a workhorse drivetrain and wheels

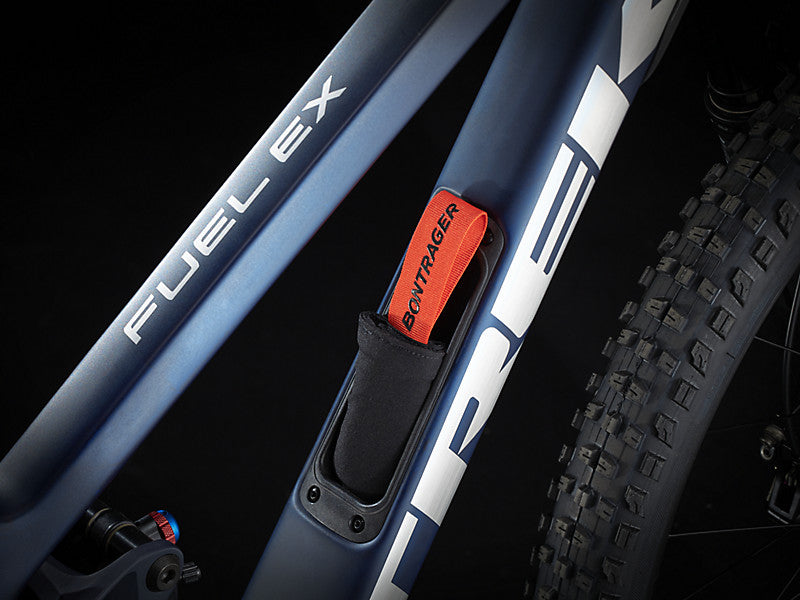

  2. A sleek internal storage compartment gives you a handy spot to stow flat fixing supplies or gear
  3. Bigger, stiffer 36 mm fork stanchions won't flex, so you can push harder with more precise, confident steering that helps you stay on your line
  4. RE:aktiv is smarter, more efficient suspension. It gives you firm pedalling support that instantly gives way over bumps
  5. We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝ and sizes M to XL get 29˝ wheels

*Please note - spec applies to all sizes unless listed separately

Frameset

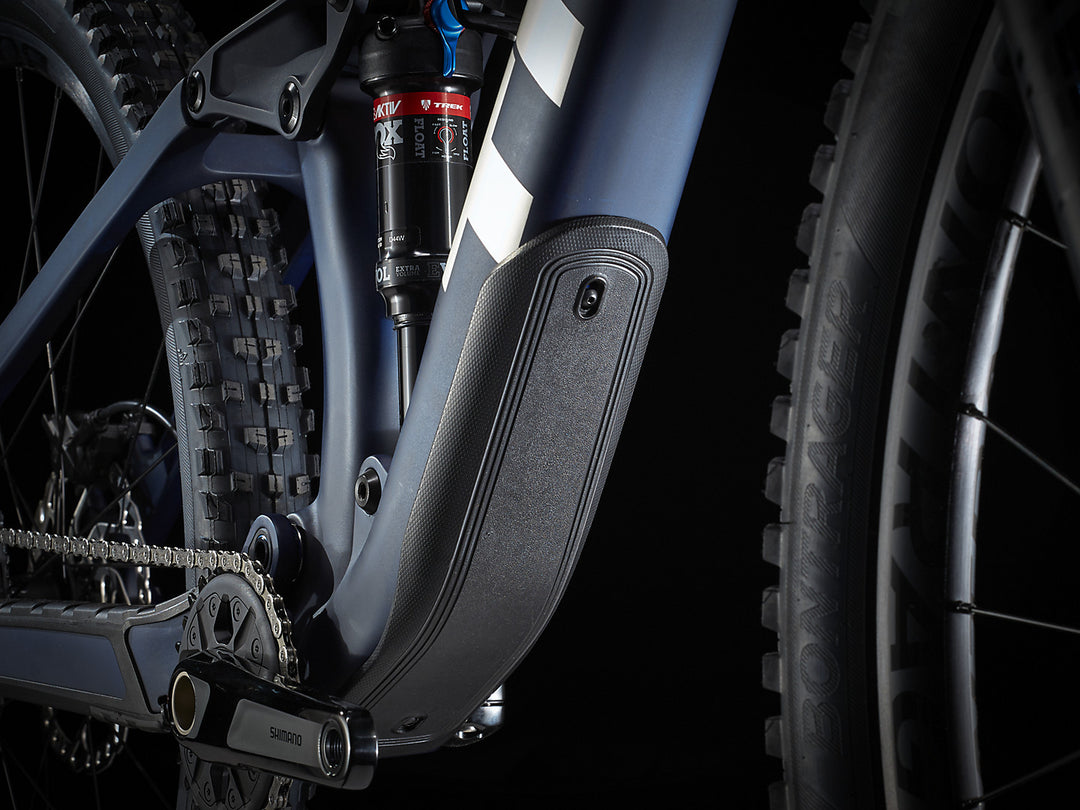

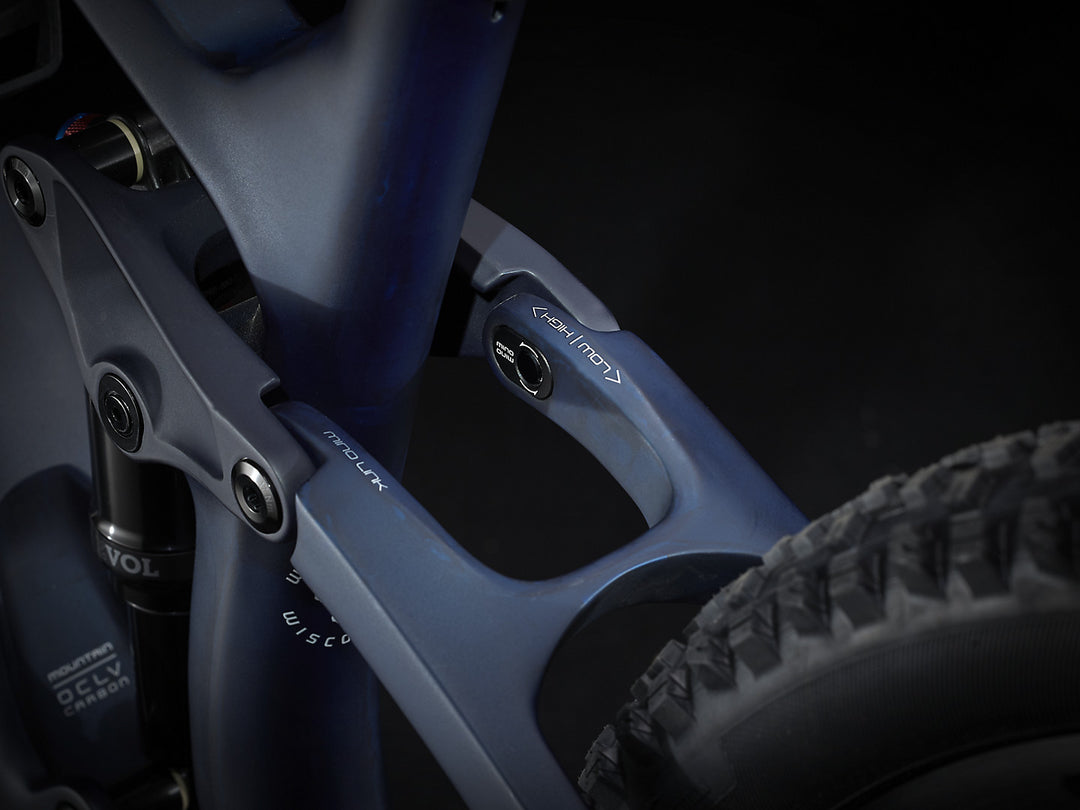

Frame OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Fork Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
*Shock Size: XS , S
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm
Size: S , M , ML , L , XL
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
Max compatible fork travel 150mm (561mm axle-to-crown)
Wheels

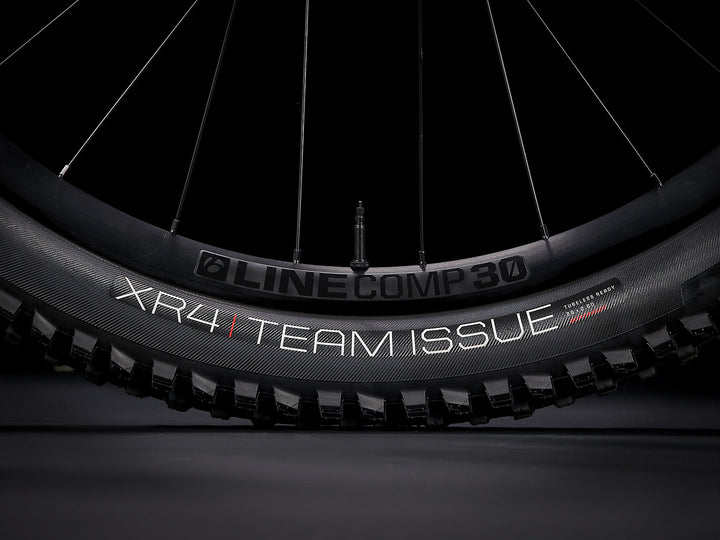

Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
*Wheel rear Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
Size: S , M , ML , L , XL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
Hub front Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
*Hub rear Size: XS , S , M , ML , L , XL
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Size: XS , S , M , ML , L , XL
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever

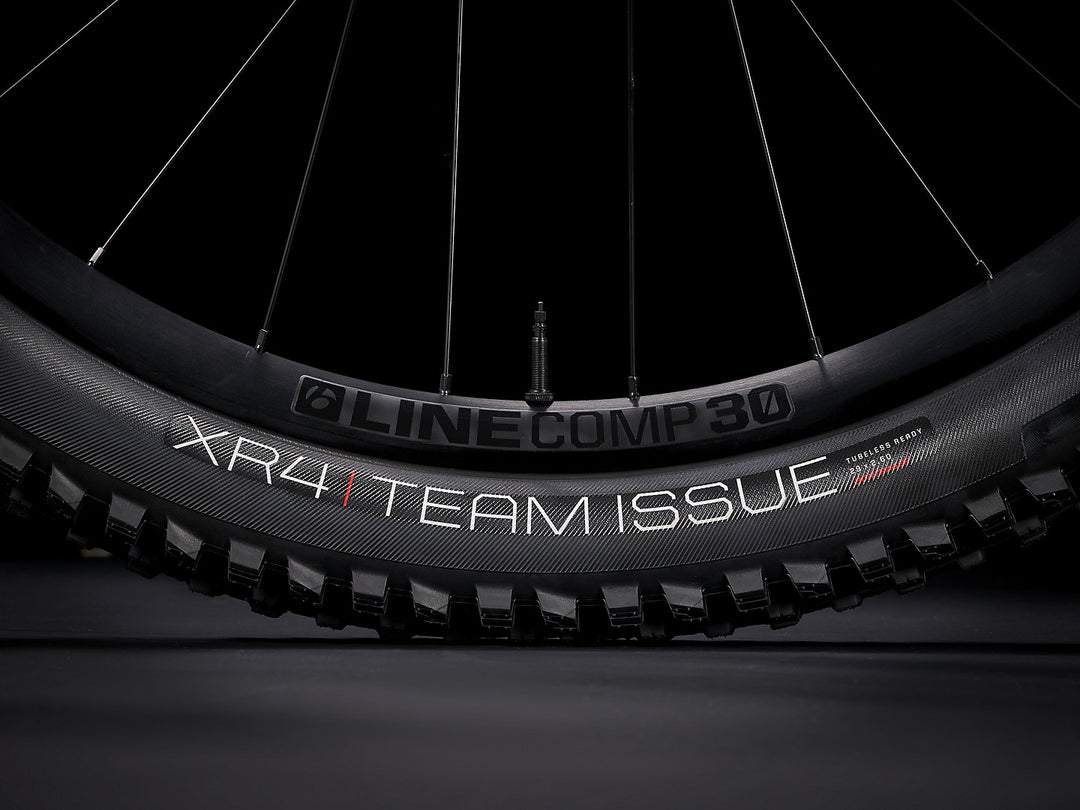

Rim Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
*Tyre Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50"
Size: S , M , ML , L , XL
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.60" Fork: See manufacturer
Drivetrain

Shifter Shimano SLX M7100, 12-speed

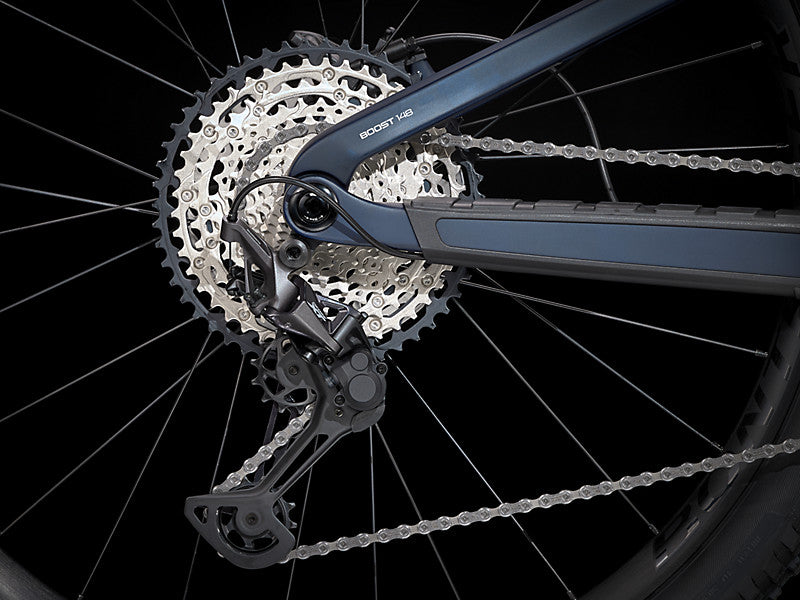

Rear derailleur Shimano XT M8100, long cage
*Crank Size: XS , S , M , ML , L
Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 170 mm length
Size: XL
Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 175 mm length
Bottom bracket Shimano MT500, 92 mm, PressFit
Cassette Shimano SLX M7100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Max. chainring size 34T
Components

Saddle Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost Size: XS , S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size: M , ML , L , XL
Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
*Handlebar Size: XS , S
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Size: M , ML , L , XL
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips Bontrager XR Trail Elite, nylon lock-on

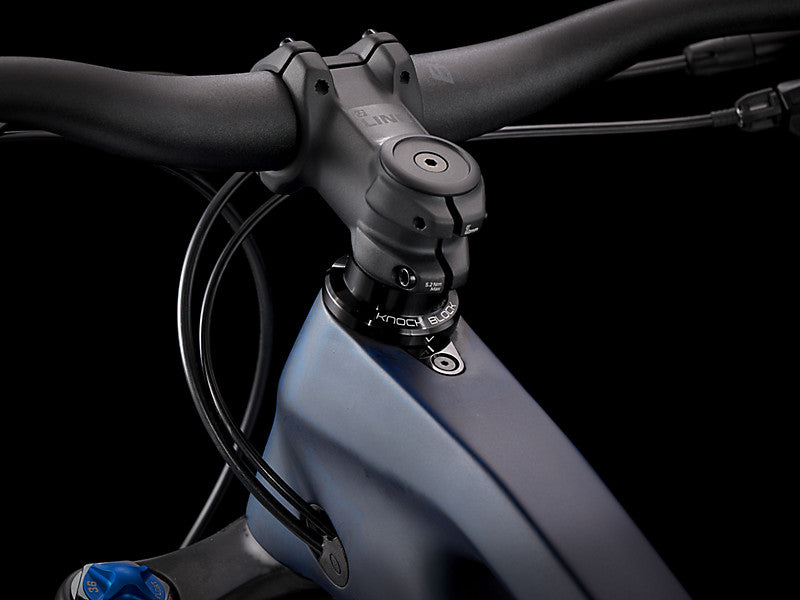

*Stem Size: XS , S
Bontrager Elite, 35 mm, 0-degree, 35 mm length
Size: M , ML , L , XL
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Head set Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

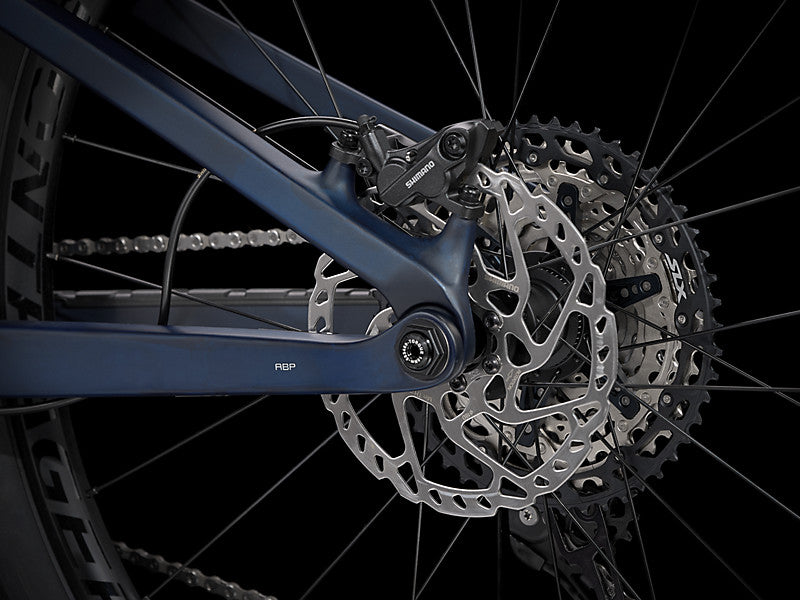

Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
*Brake rotor Size: XS , S , M , ML , L , XL
Shimano RT66, 6-bolt, 180mm
Size: M , ML , L , XL
Shimano RT66, 6-bolt, 203 mm
Weight

Weight M - 13.65 kg/30.1 lb (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).



We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.

Bike and frame weights are based on pre-production painted frames at the time of publication. Weights may vary in final production
