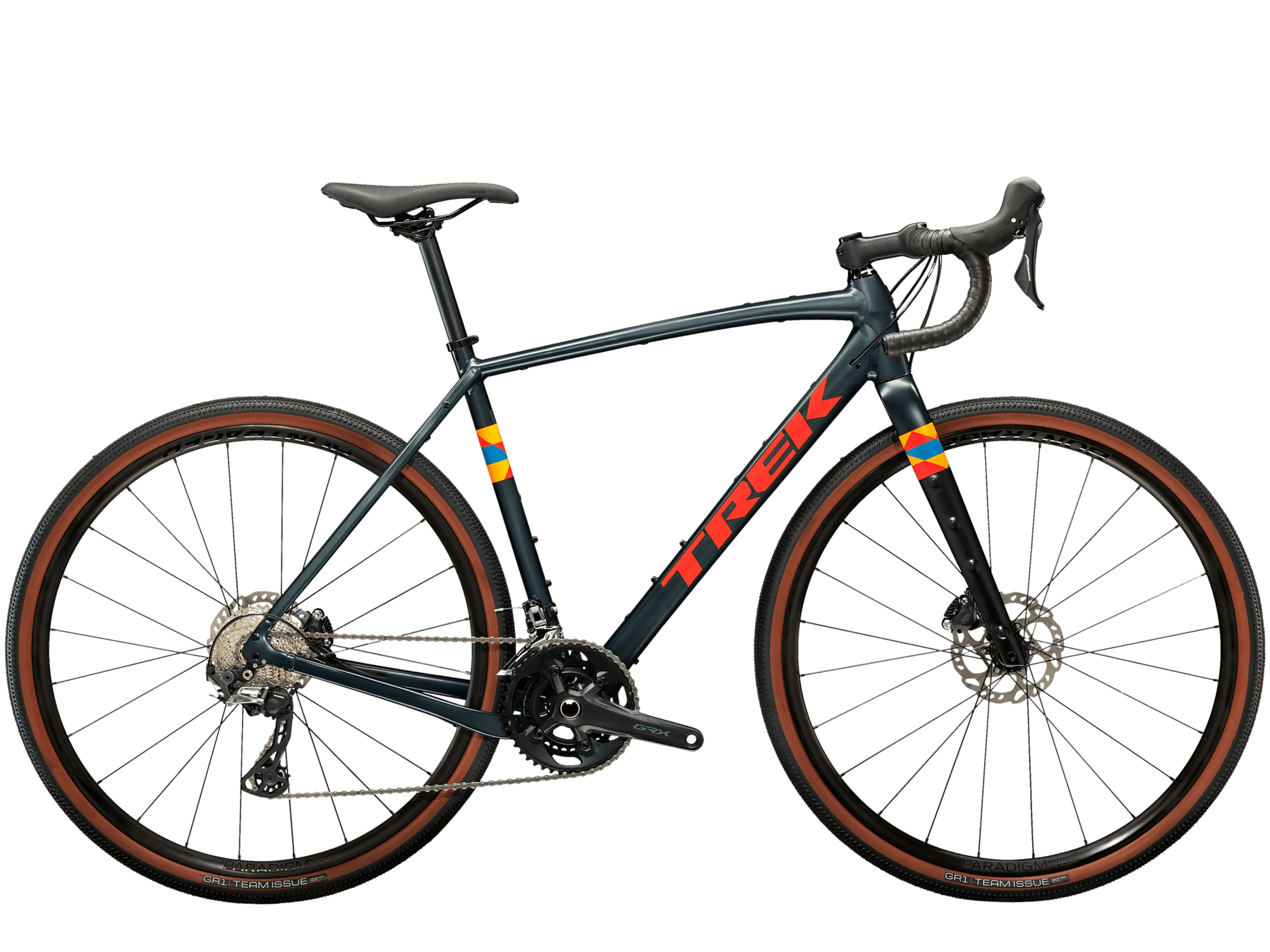

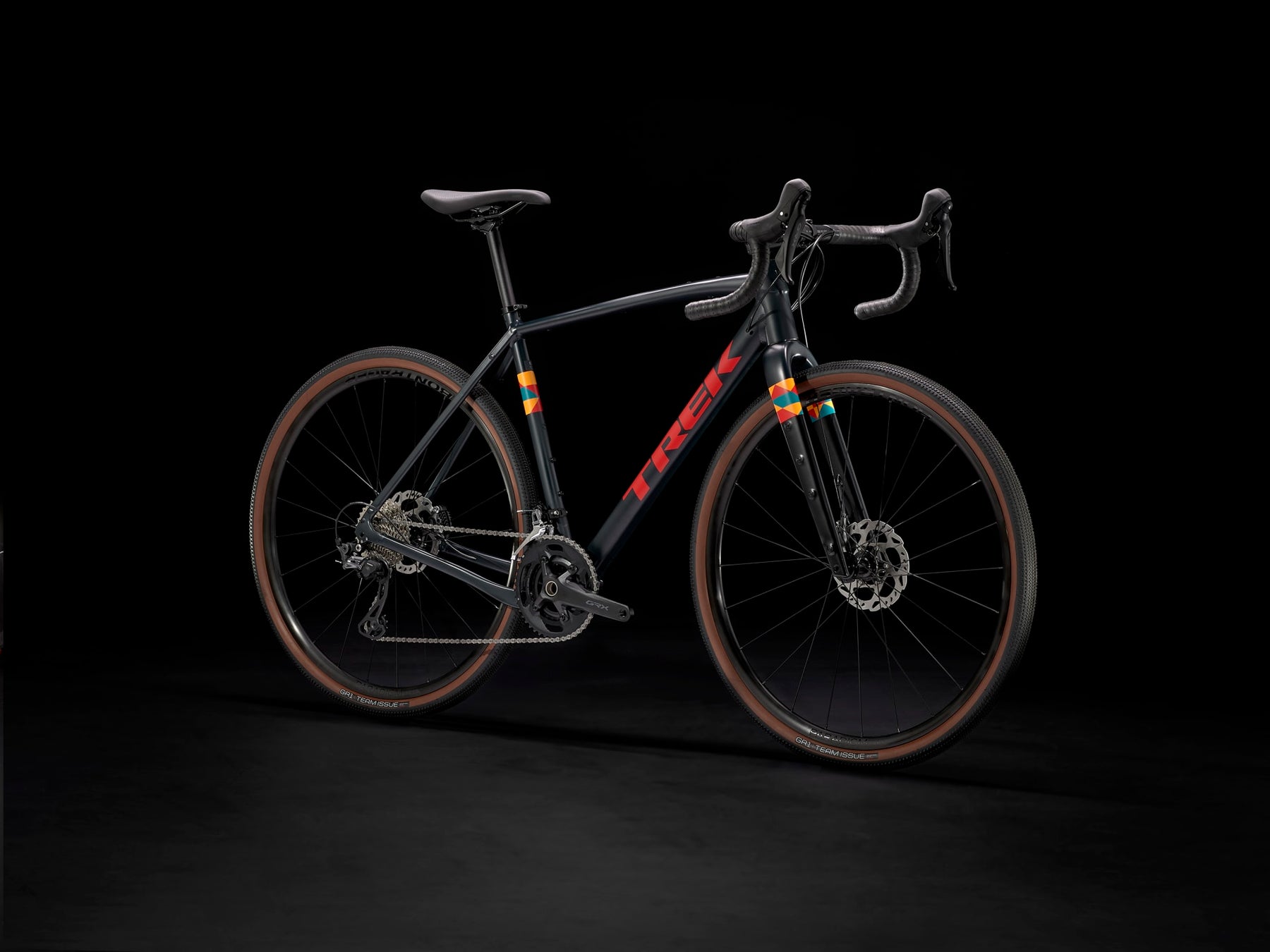

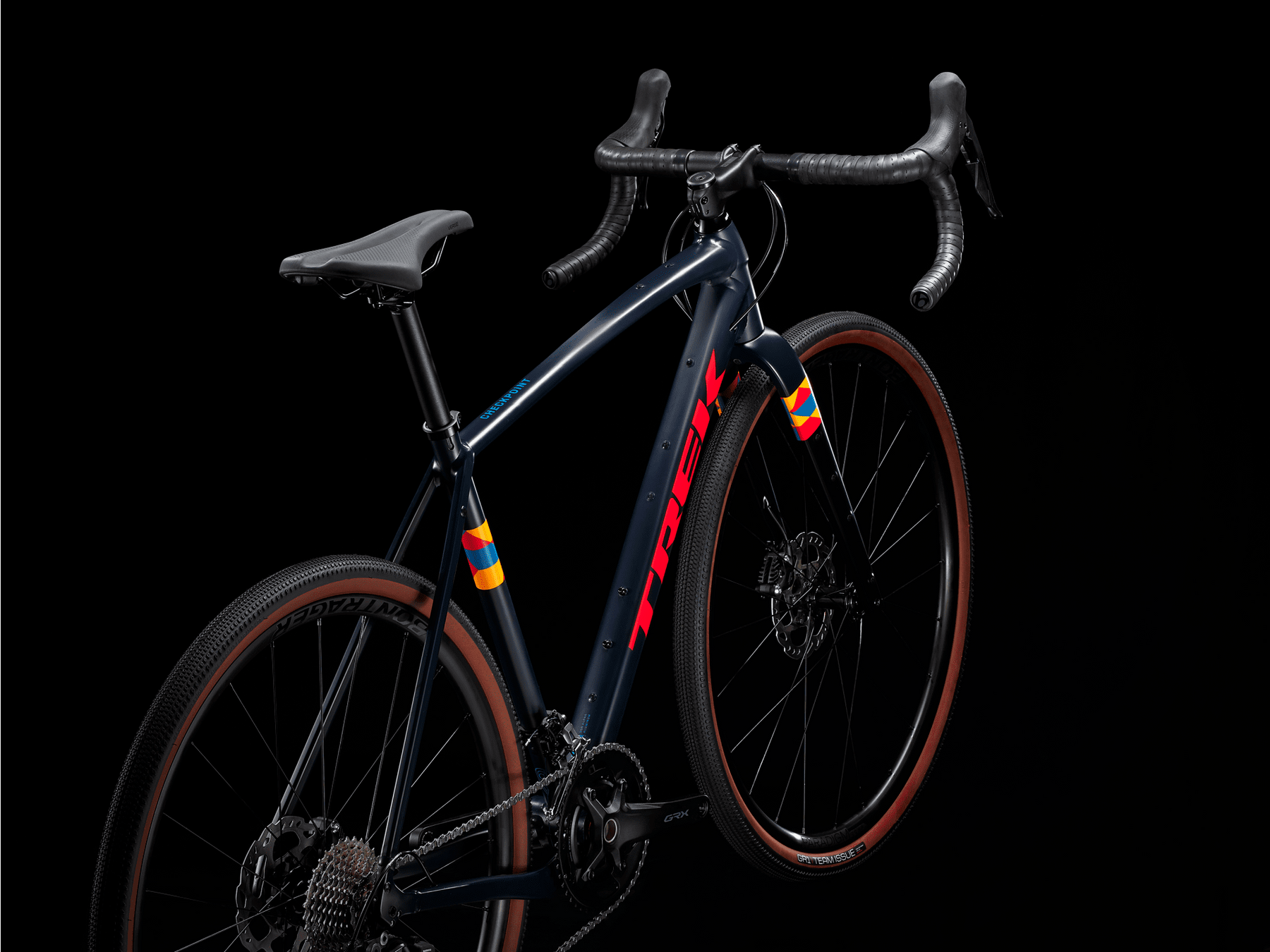

Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red
Checkpoint ALR 5 Satin Nautical Navy/Satin Red

Checkpoint ALR 5 Satin Nautical Navy/Satin Red

Regular price$2,699.99
/
Tax included.
Size

  • Click n Collect available
  • $150 shipping East Coast of Australia for Specialized, GT and Cannondale bikes
  • Free shipping on parts and accessories orders over $50

  • In stock, ready to ship
  • Backordered, shipping soon

Checkpoint ALR 5 is the best value gravel bike in the line-up. It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure.

It's right for you if...

Unlike the pure roadie who measures watts and weighs out meals, you favour epic off-road adventures that probably end with a beer and a bag of chips. But that doesn't mean you'll compromise on performance. You expect to get a lot for your hard-earned money, including quality, versatility, durability and a ridiculous amount of fun.

The tech you get

A sturdy aluminium frame with a progressive geometry that's stable at speed and efficient when you're grinding up a climb, hidden cables that won't interfere with bags, rack and mudguard mounts and integrated frame bag mounts, a 2x11 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless-ready rims and wide 700x40c gravel tyres for added stability and traction.

The final word

If the amount of adventure you can get per pound spent is a priority for you, you won't do better than Checkpoint ALR 5. Quality parts, a durable alloy frame and a wealth of features like extra tyre clearance and customisation options – so you can confidently take on bigger, better adventures.


The Walkthrough

Watch video

 Why you'll love it

  1. All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
  2. This bike is exceedingly versatile and suited to a wide variety of riding styles, including gravel rides, bike-packing and daily commutes
  3. Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions

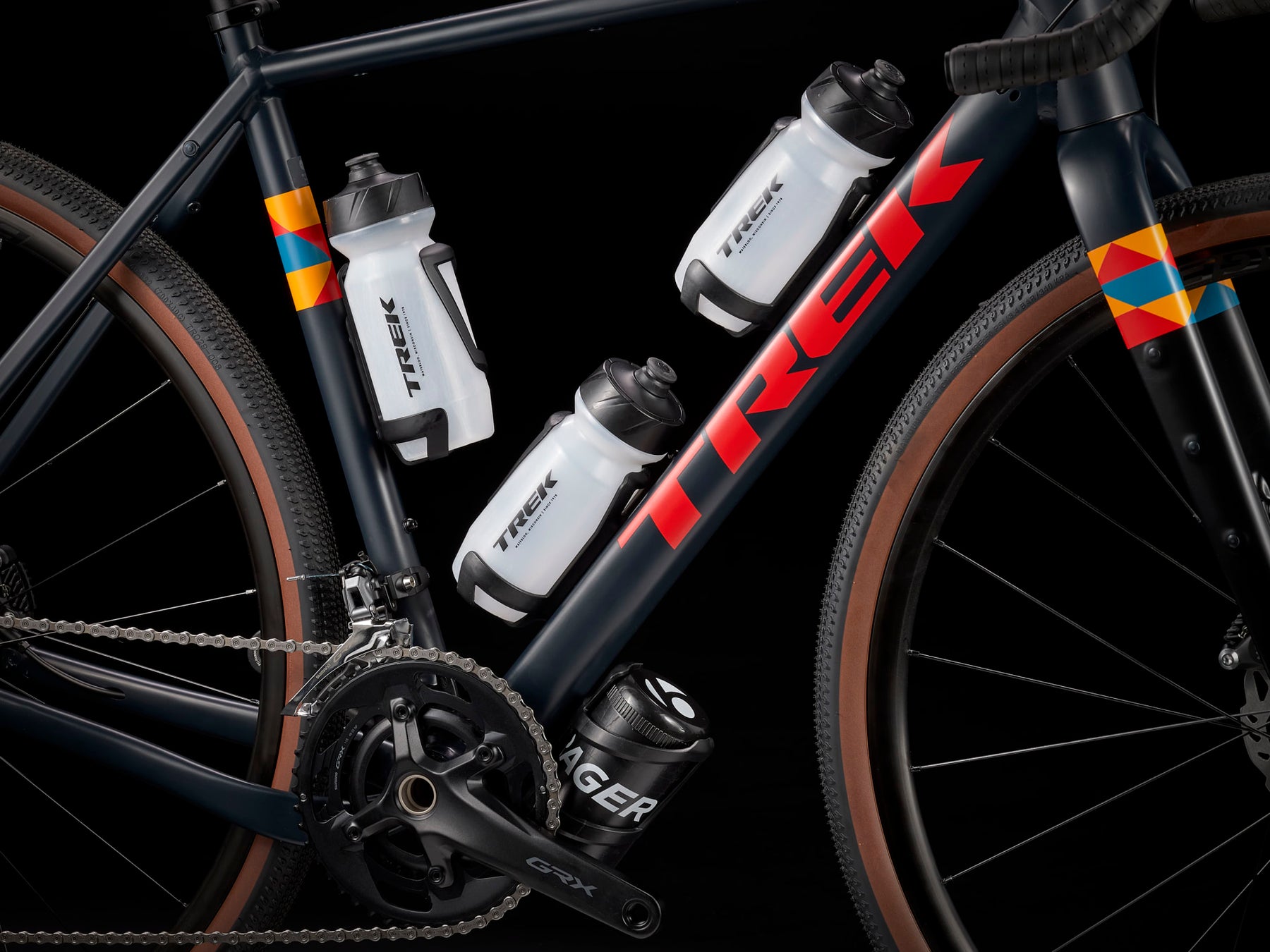

  4. Integrated frame bag mounts and rack and mudguard mounts make it easy to carry gear and water
Frameset

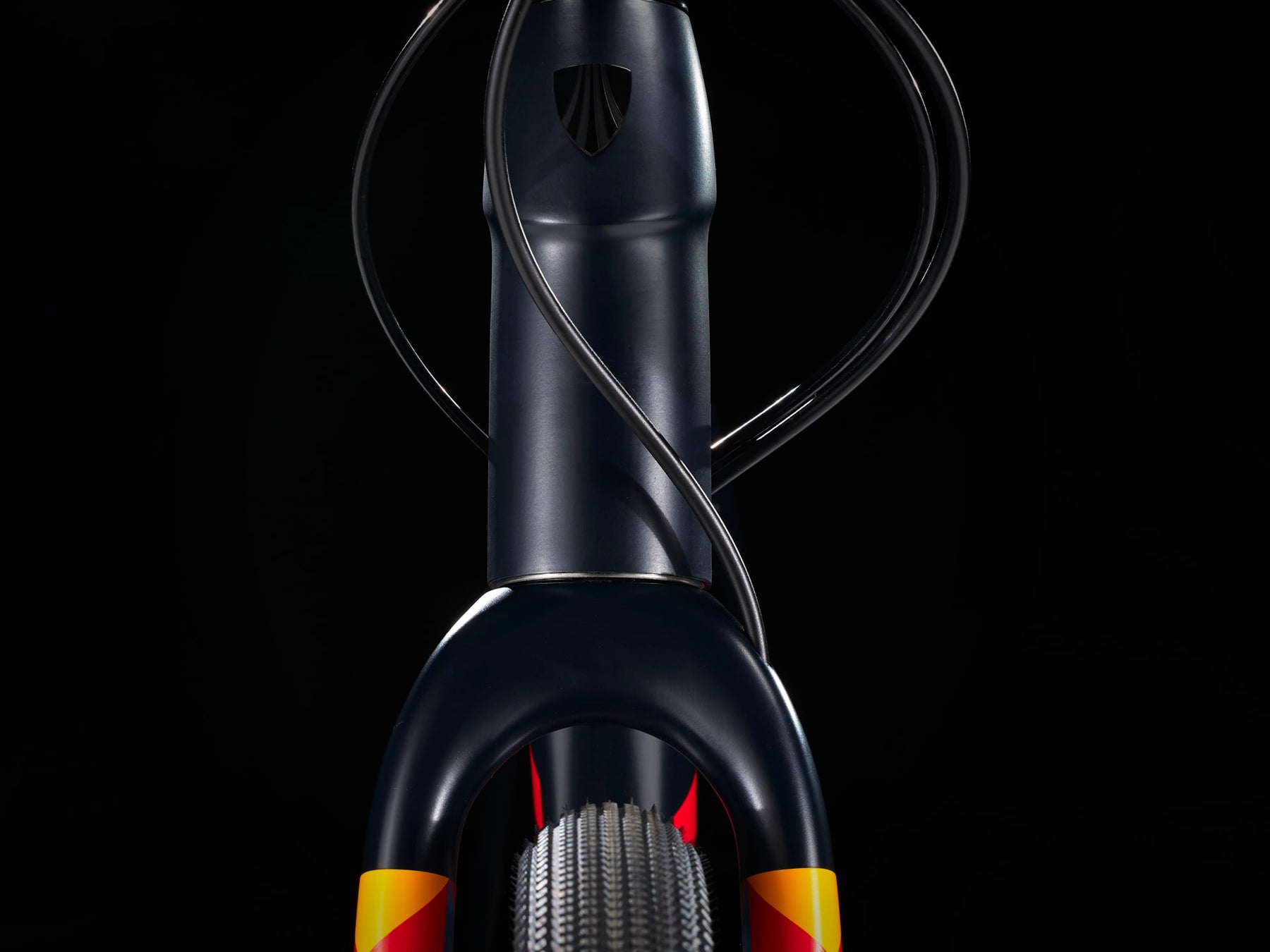

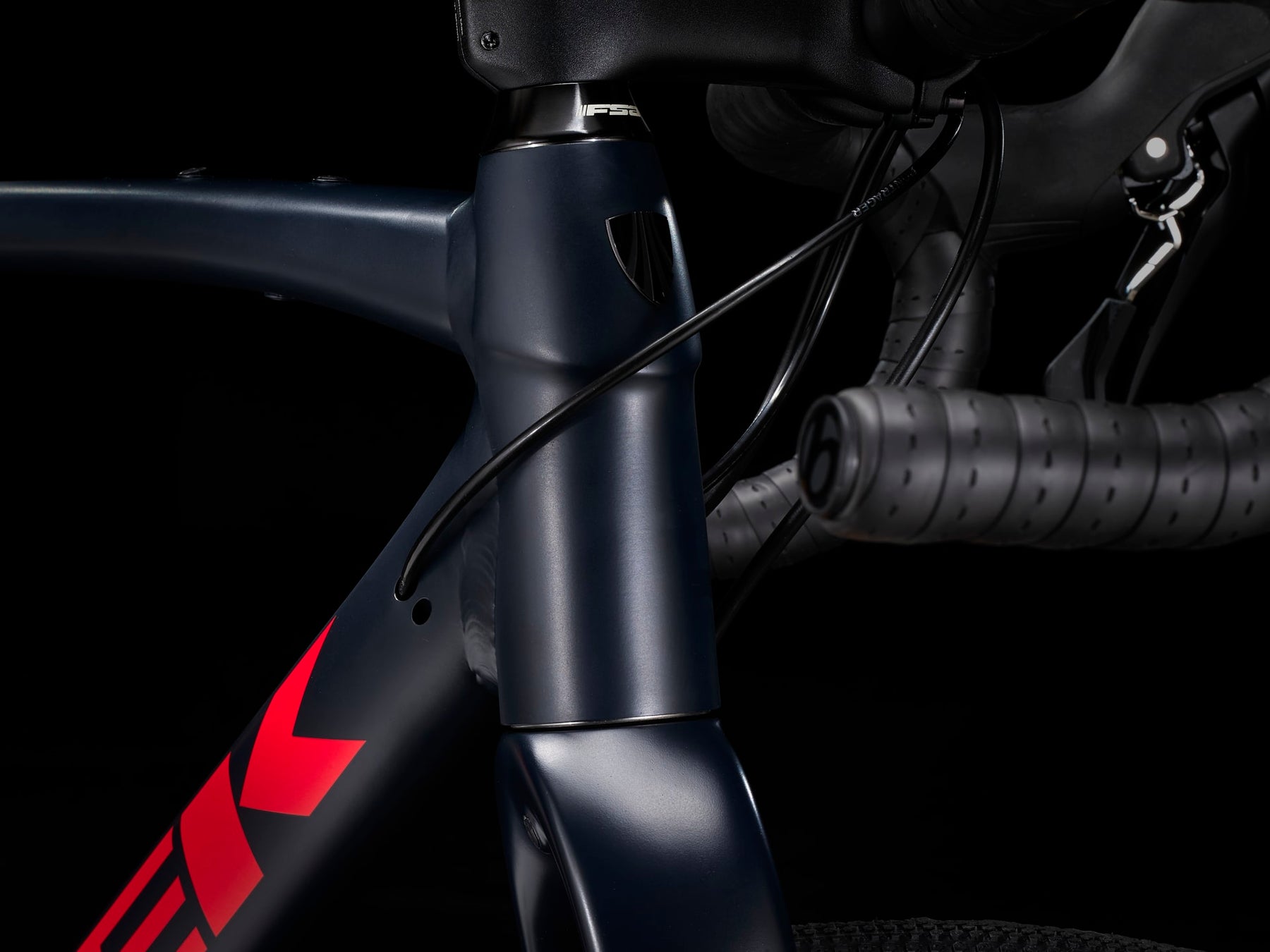

Frame 300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle
Frame with Fork 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Fork Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit Gravel
Weight
Weight 56 - 9.75 kg / 21.5 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Drivetrain
Shifter Shimano GRX hydraulic disc
Front derailleur Shimano GRX RX810, braze-on
Rear derailleur Shimano GRX RX810, long cage, 34T max cog
*Crank Size: 49
Shimano GRX RX600, 46/30, 165 mm length
Size: 52
Shimano GRX RX600, 46/30, 170 mm length
Size: 54, 56
Shimano GRX RX600, 46/30, 172.5 mm length
Size: 58, 61
Shimano GRX RX600, 46/30, 175 mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano 105 HG700-11, 11-34, 11-speed
Chain Shimano HG601, 11-speed
Max. chainring size 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34
Wheels
Wheel front Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
Wheel rear Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
Hub front Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
*Rim Size: 49, 52, 54, 56, 58, 61
Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Size: 49, 52, 54, 56, 58, 61
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes 14 g stainless steel, black
Tyre Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size See service manual
Components
*Saddle Size: 49, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

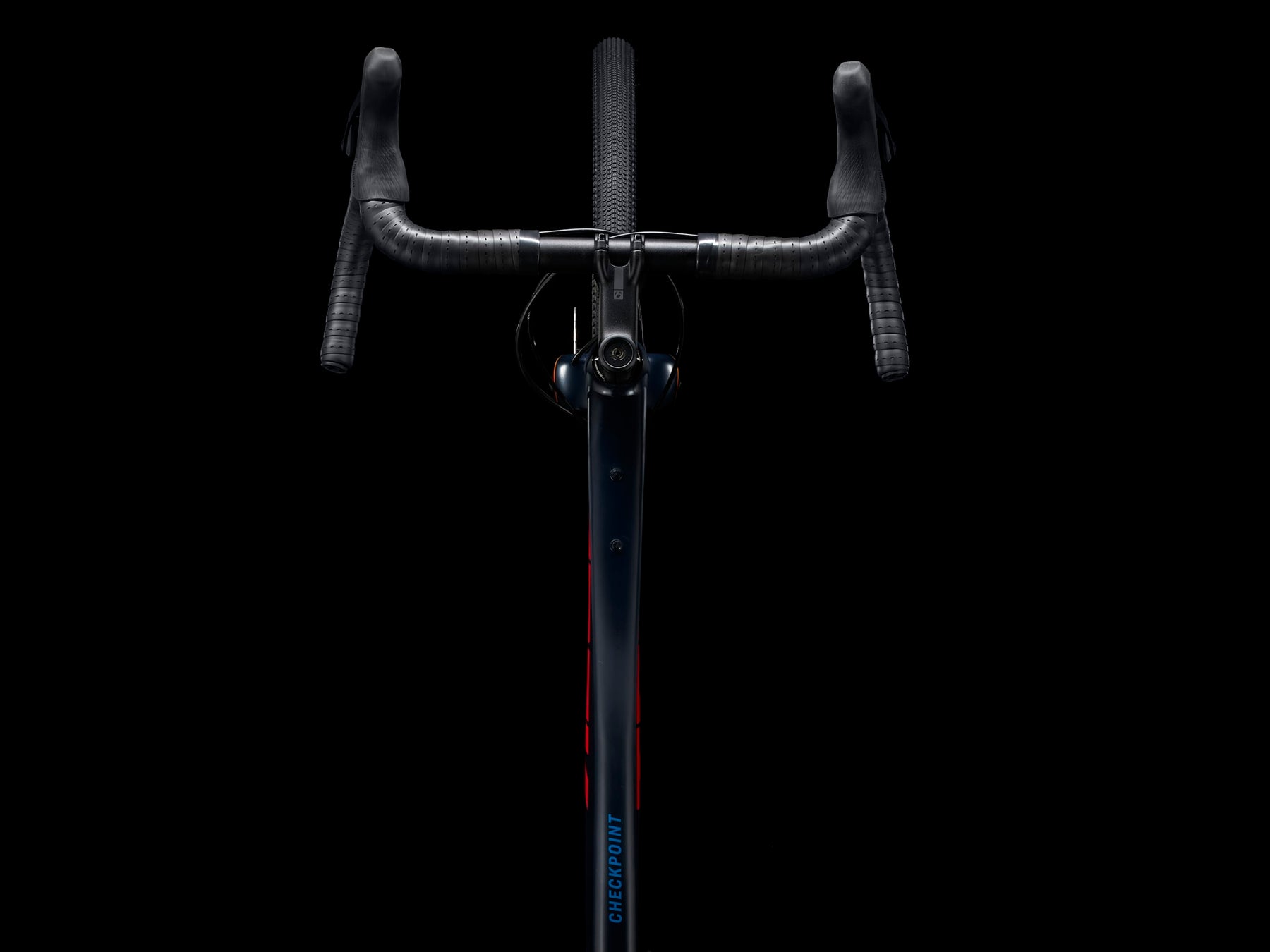

*Handlebar Size: 49
Bontrager Elite Gravel, 38 cm width
Size: 52
Bontrager Elite Gravel, 40 cm width
Size: 54, 56
Bontrager Elite Gravel, 42 cm width
Size: 58, 61
Bontrager Elite Gravel, 44 cm width
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

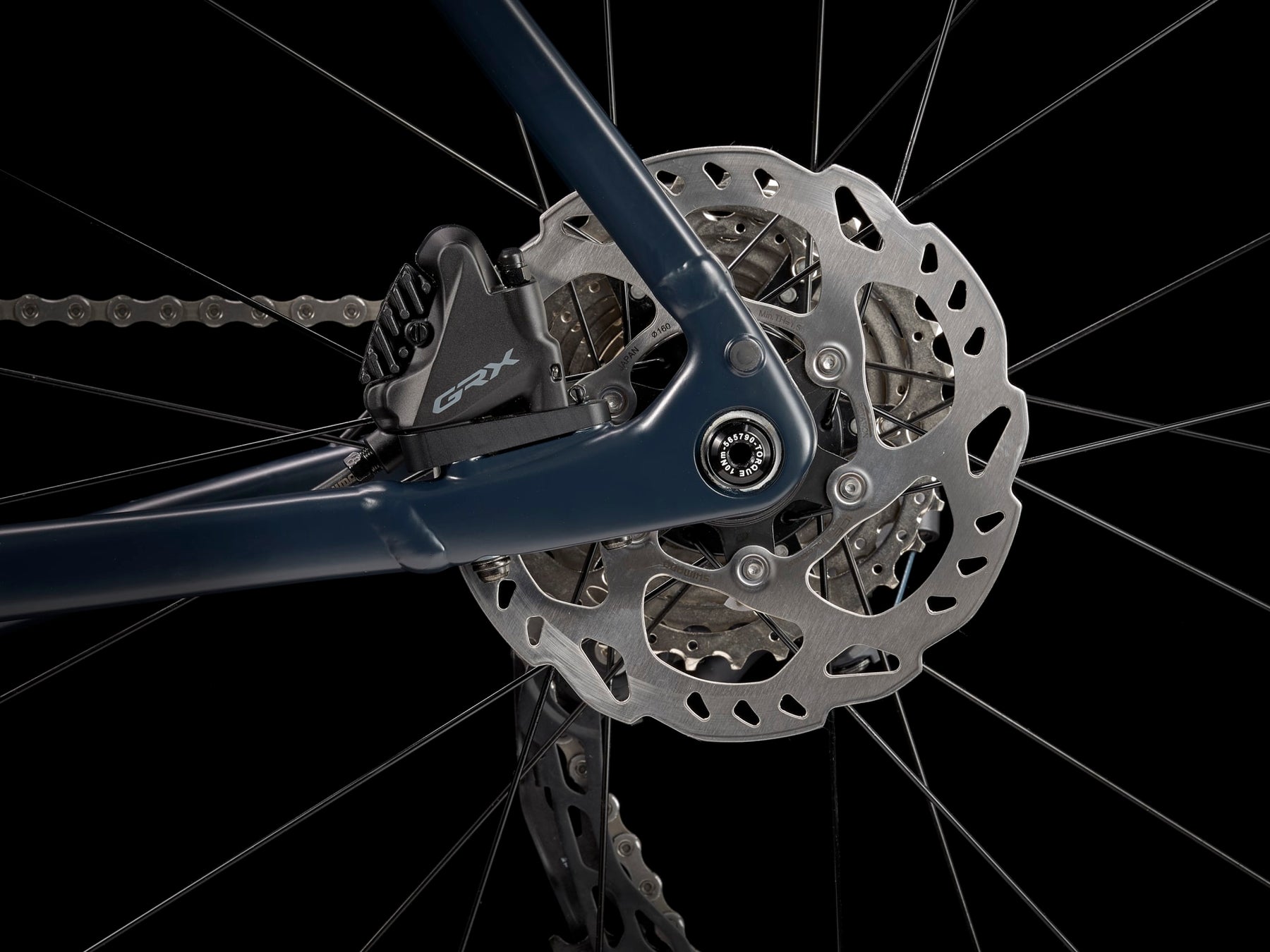

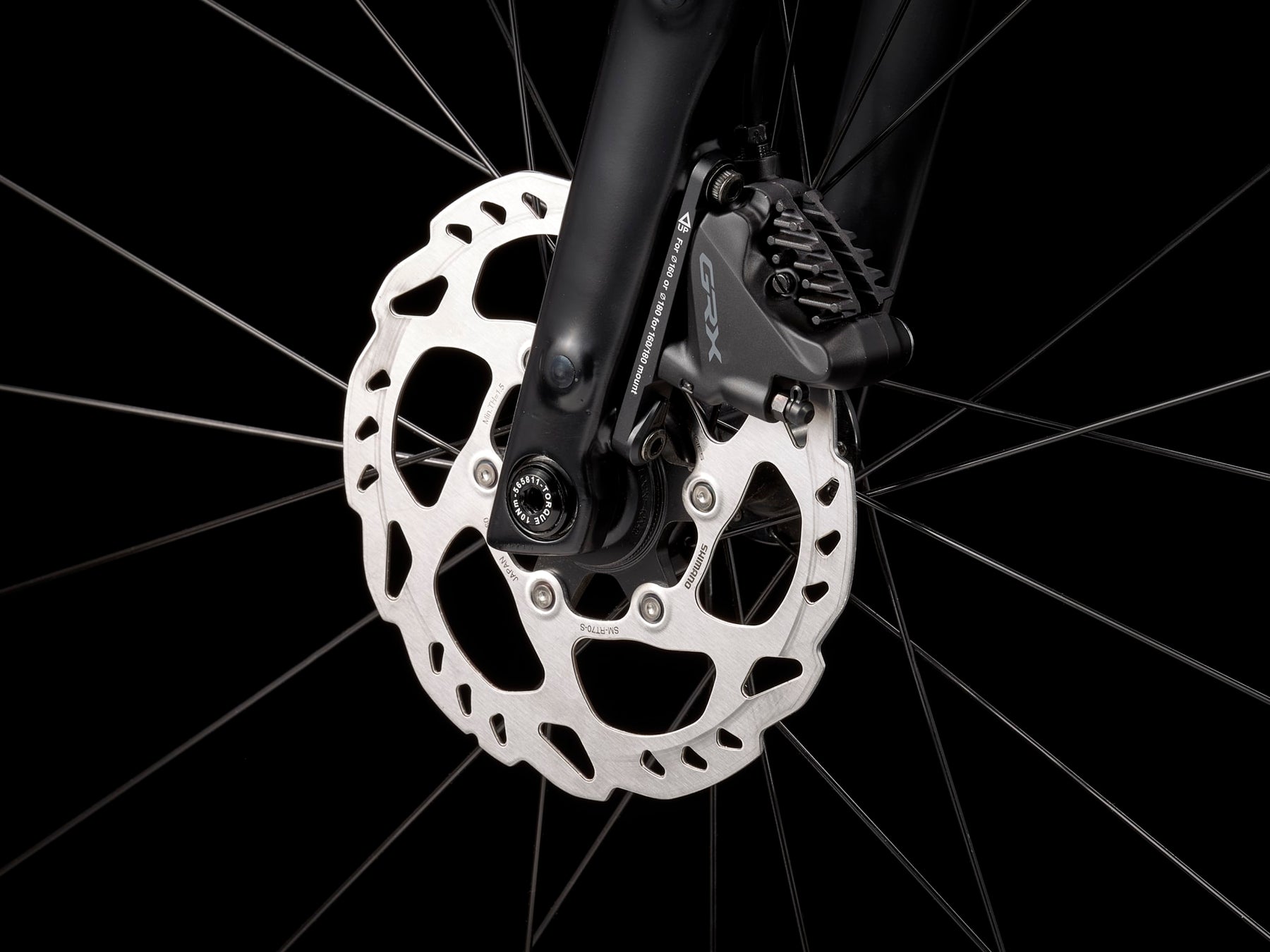

Brake Shimano RX400 hydraulic disc
Brake rotor Shimano RT70, CentreLock, 160 mm
Rotor size Max brake rotor sizes: 160mm front & rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
