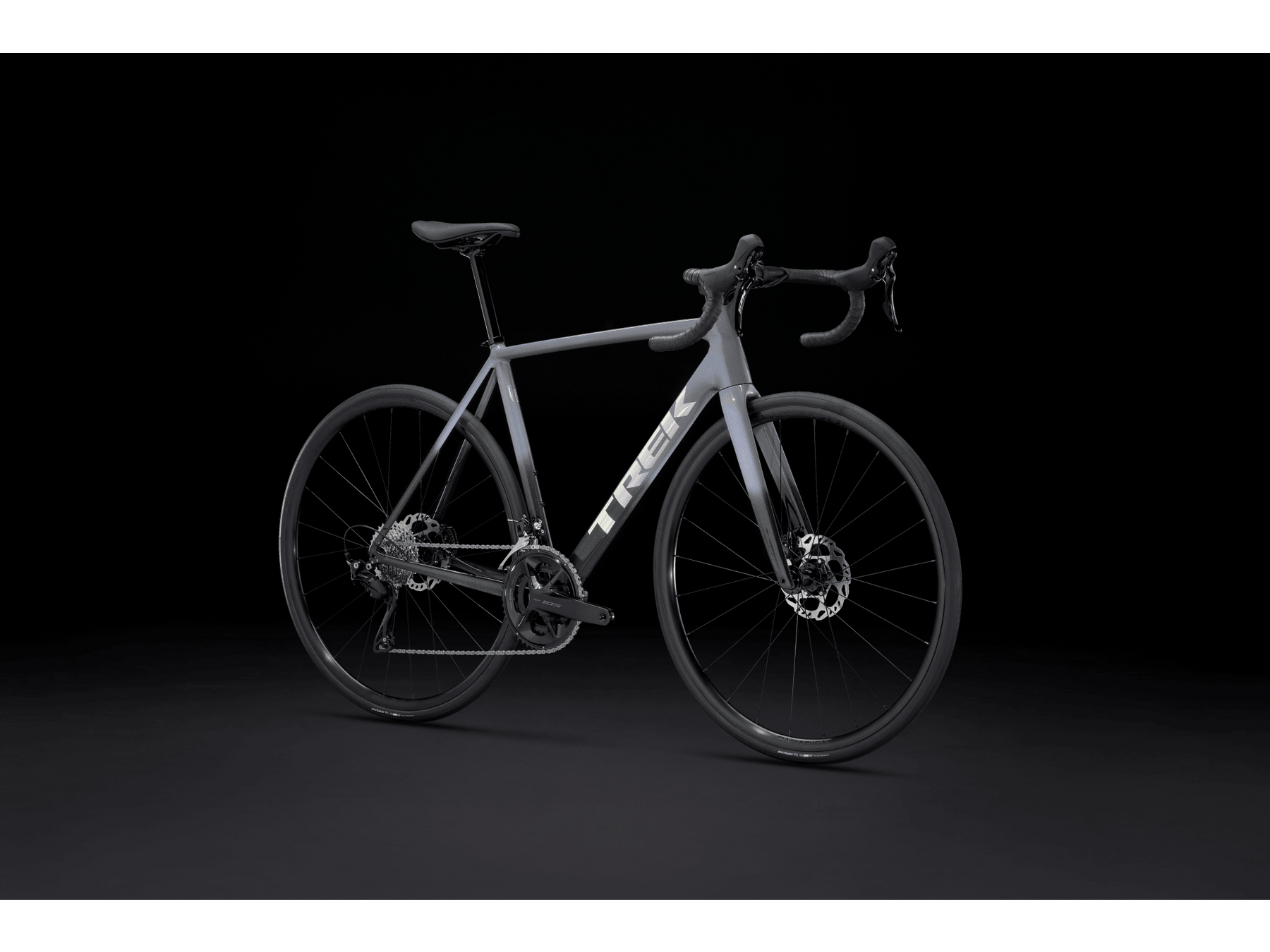

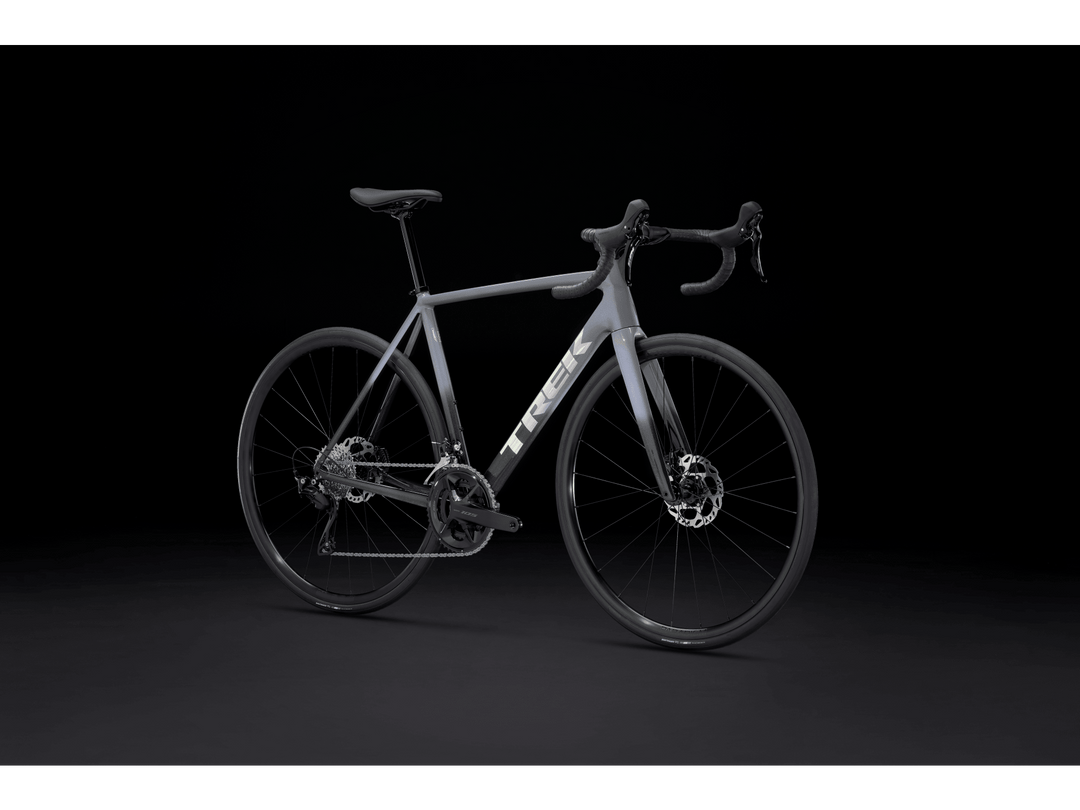

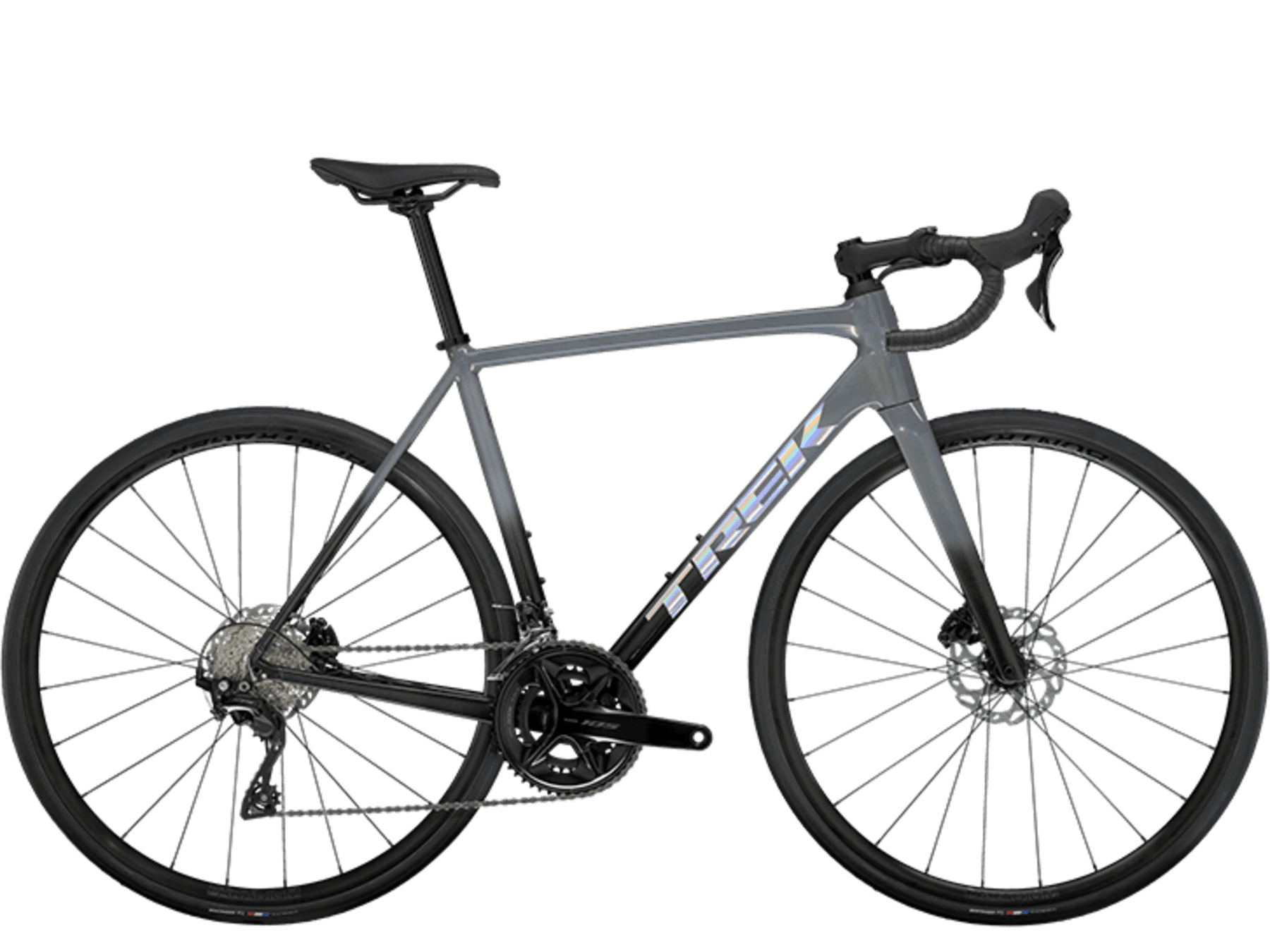

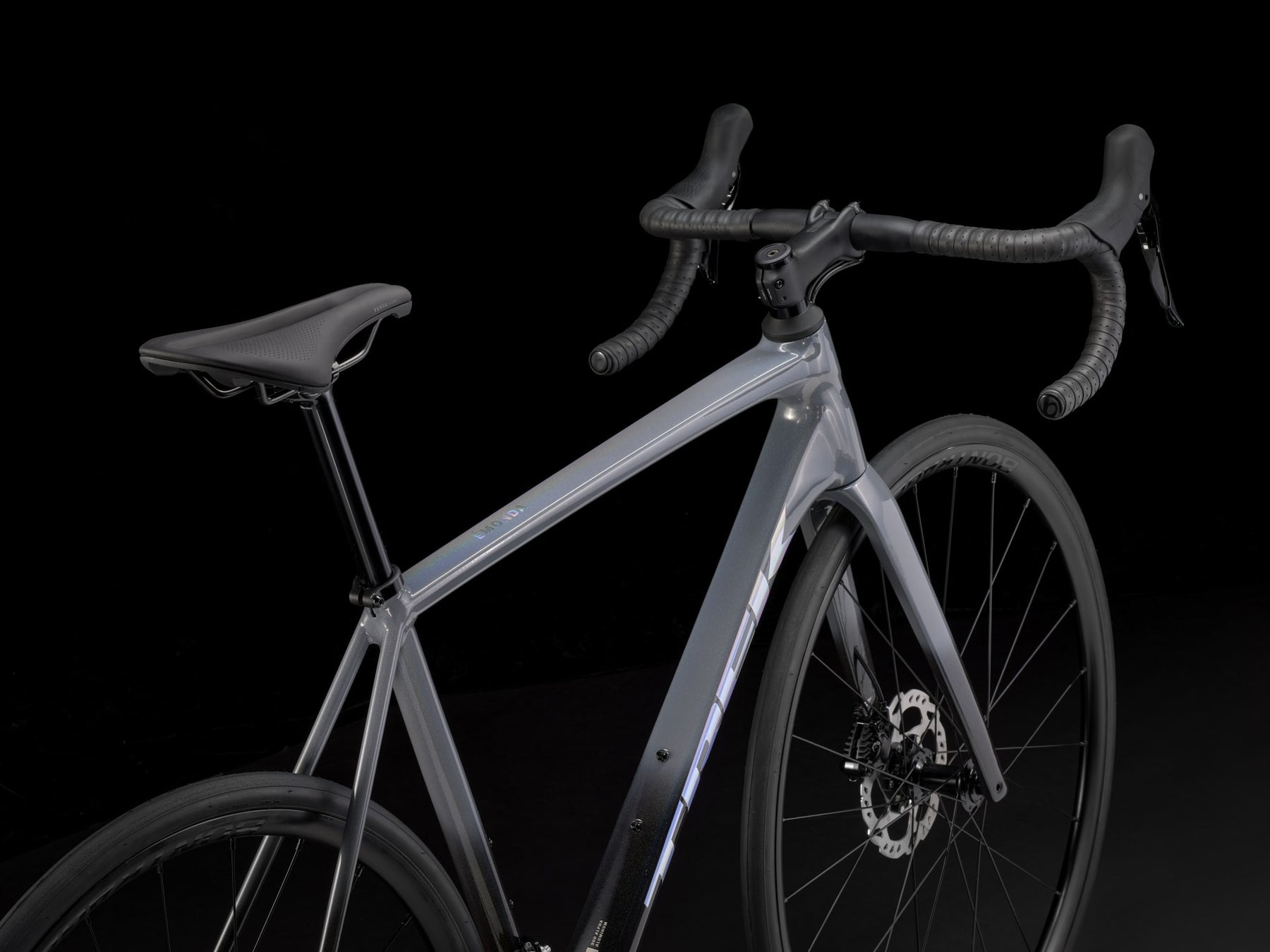

Émonda ALR 5 Disc
The Émonda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike while keeping it at an alloy price point. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.
Frameset
-

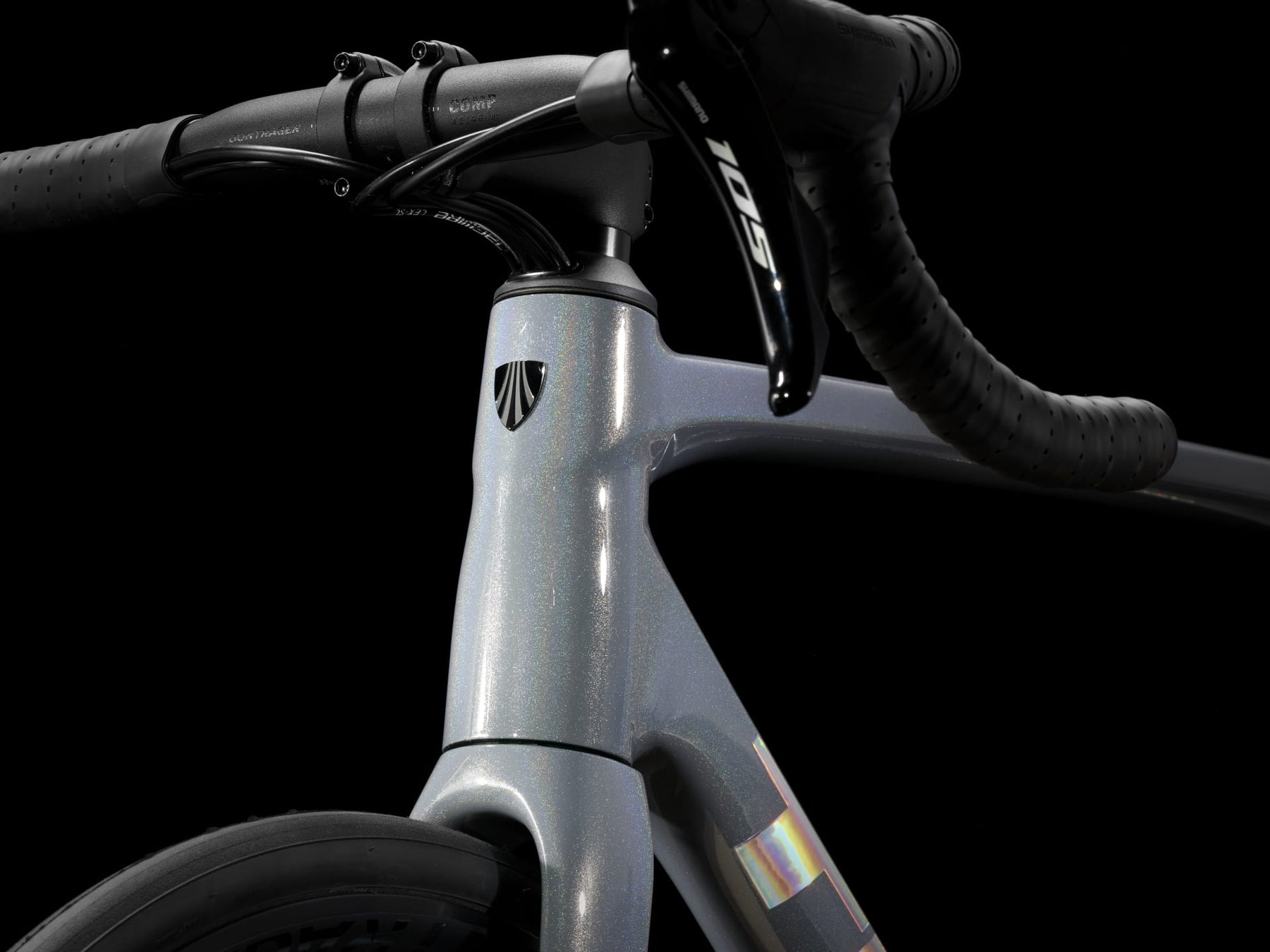

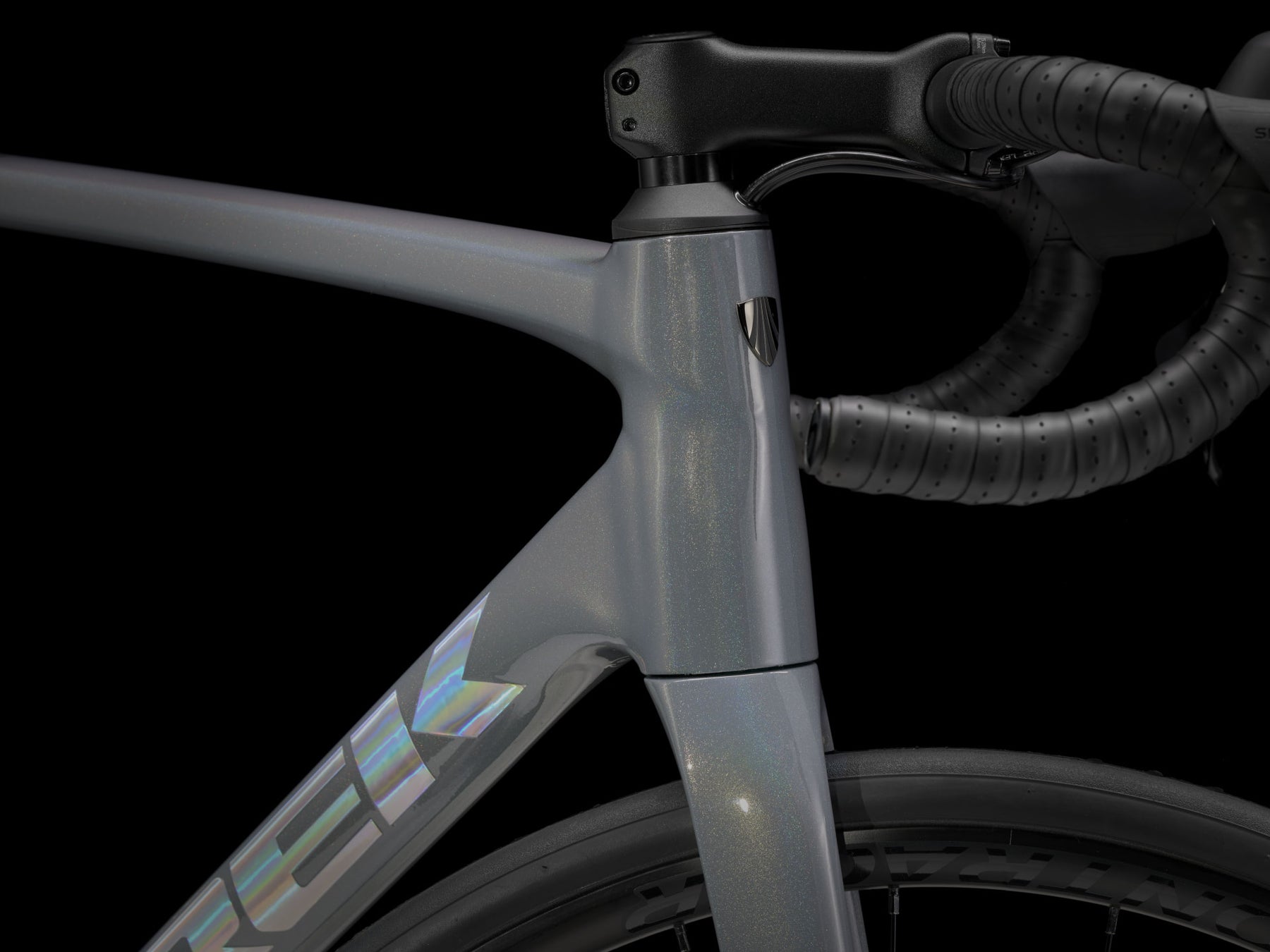

Frame: Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
-
Fork: Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
Weight
-
Weight (56cm): 9.17 kg / 20.22 lbs (with tubes)
-
Weight limit: Maximum total weight (bicycle, rider, and cargo) of 125 kg (275 lbs)

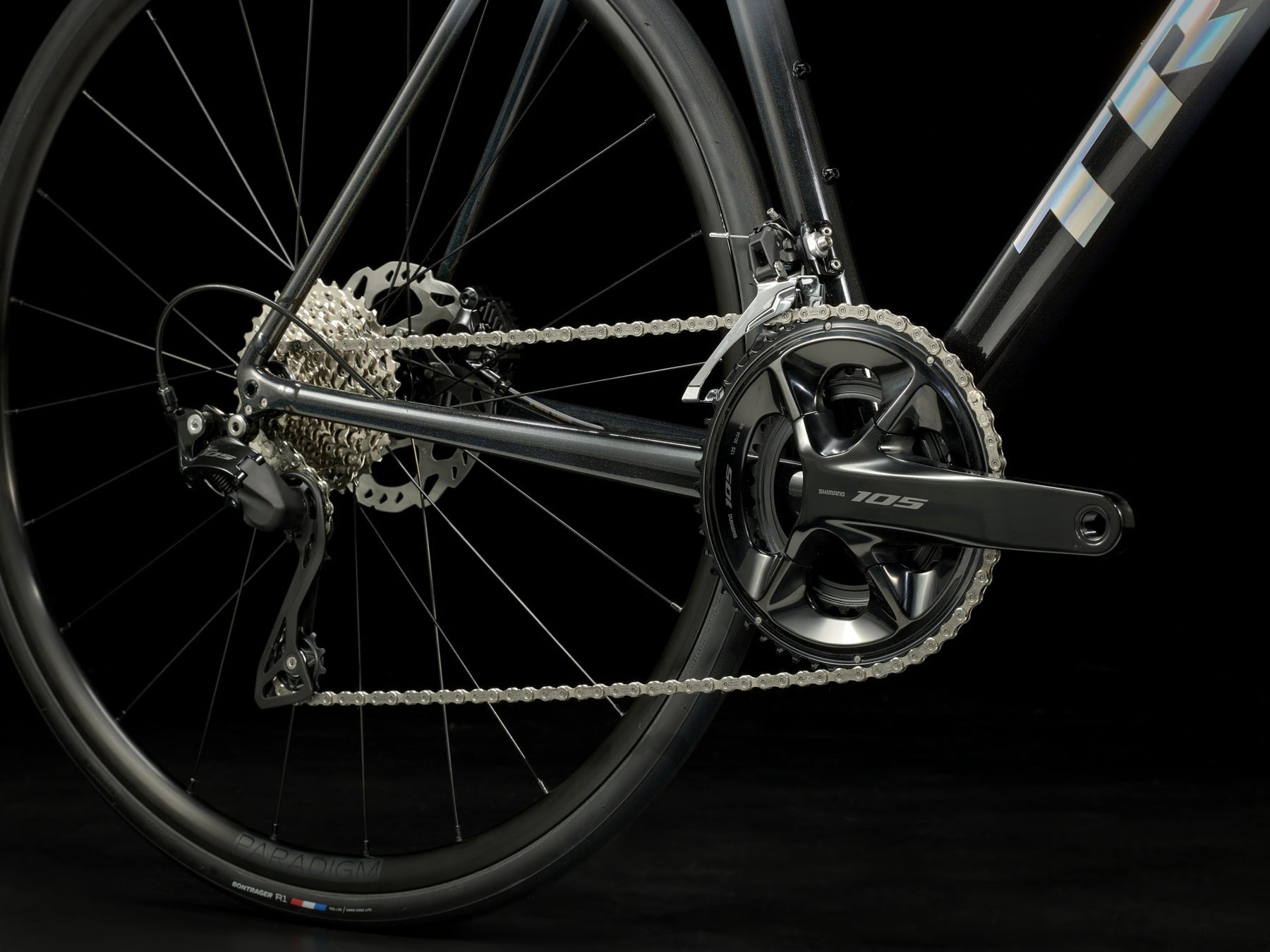

Drivetrain
-
Shifter: Shimano 105 R7120, 12-speed
-
Front Derailleur: Shimano 105 R7100, braze-on, down swing
-
Rear Derailleur: Shimano 105 R7100, 36T max cog
-
Crank: Shimano 105 R7100, 50/34 (size dependent: 170mm, 172.5mm, 175mm)
-
Bottom Bracket: Praxis, T47 threaded, internal bearing
-
Cassette: Shimano 105 7101, 11-34, 12-speed
-
Chain: Shimano SLX M7100, 12-speed
Wheels
-
Hubs: Bontrager alloy, sealed bearing, CenterLock disc
-
Rims: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width
-
Tyres: Bontrager R1 Hard-Case Lite, 700x28 mm
Components
-
Saddle: Verse Short Comp, steel rails
-
Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset
-

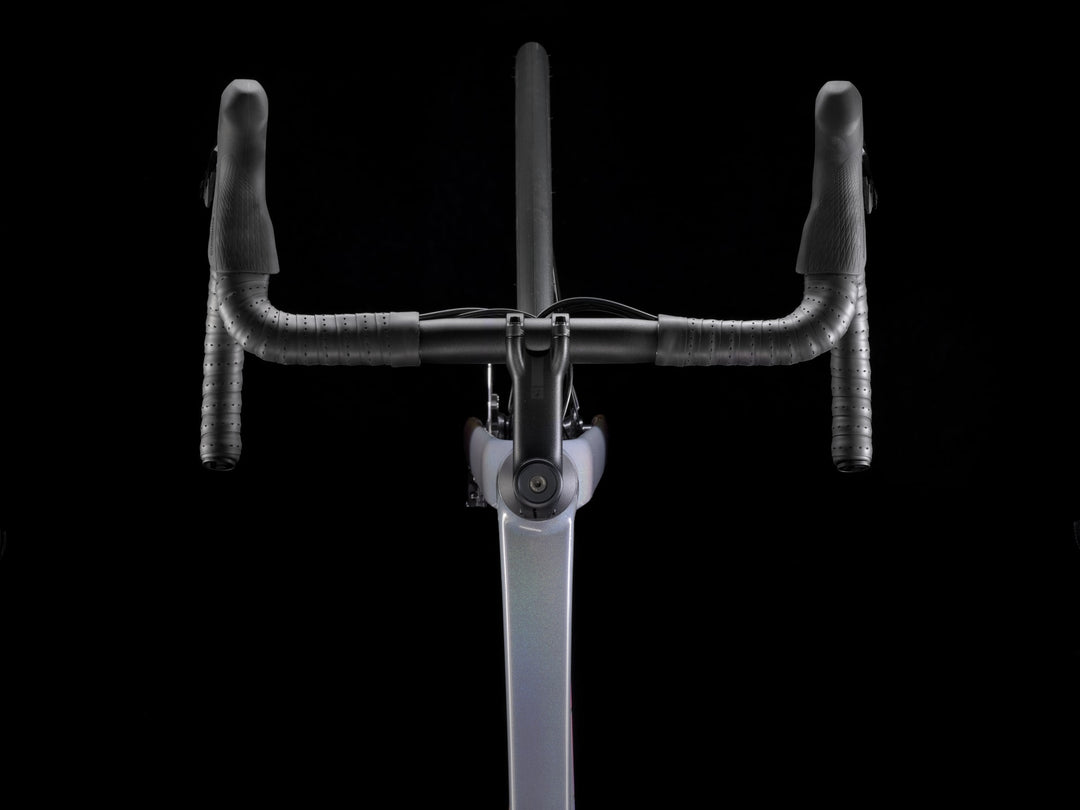

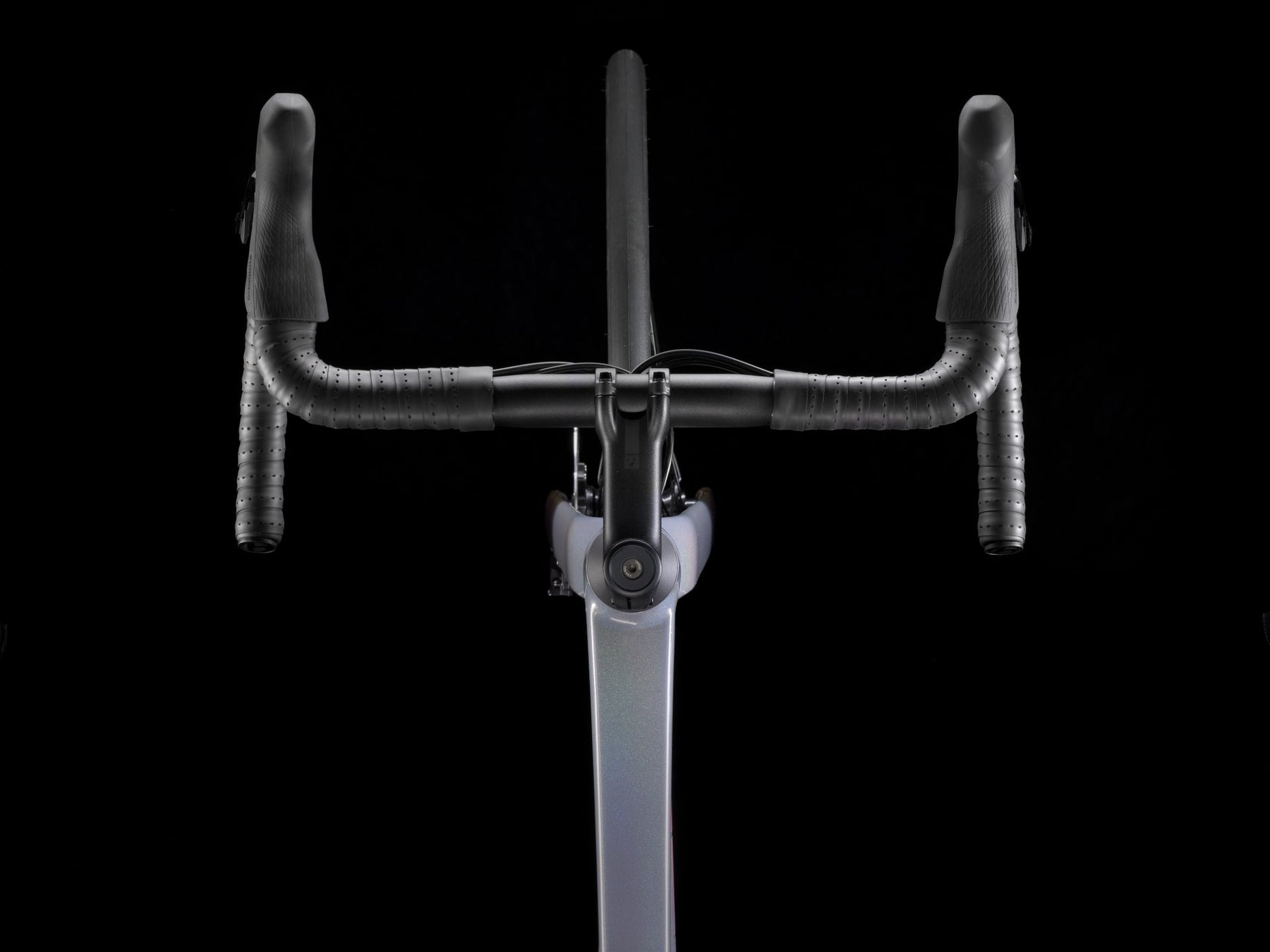

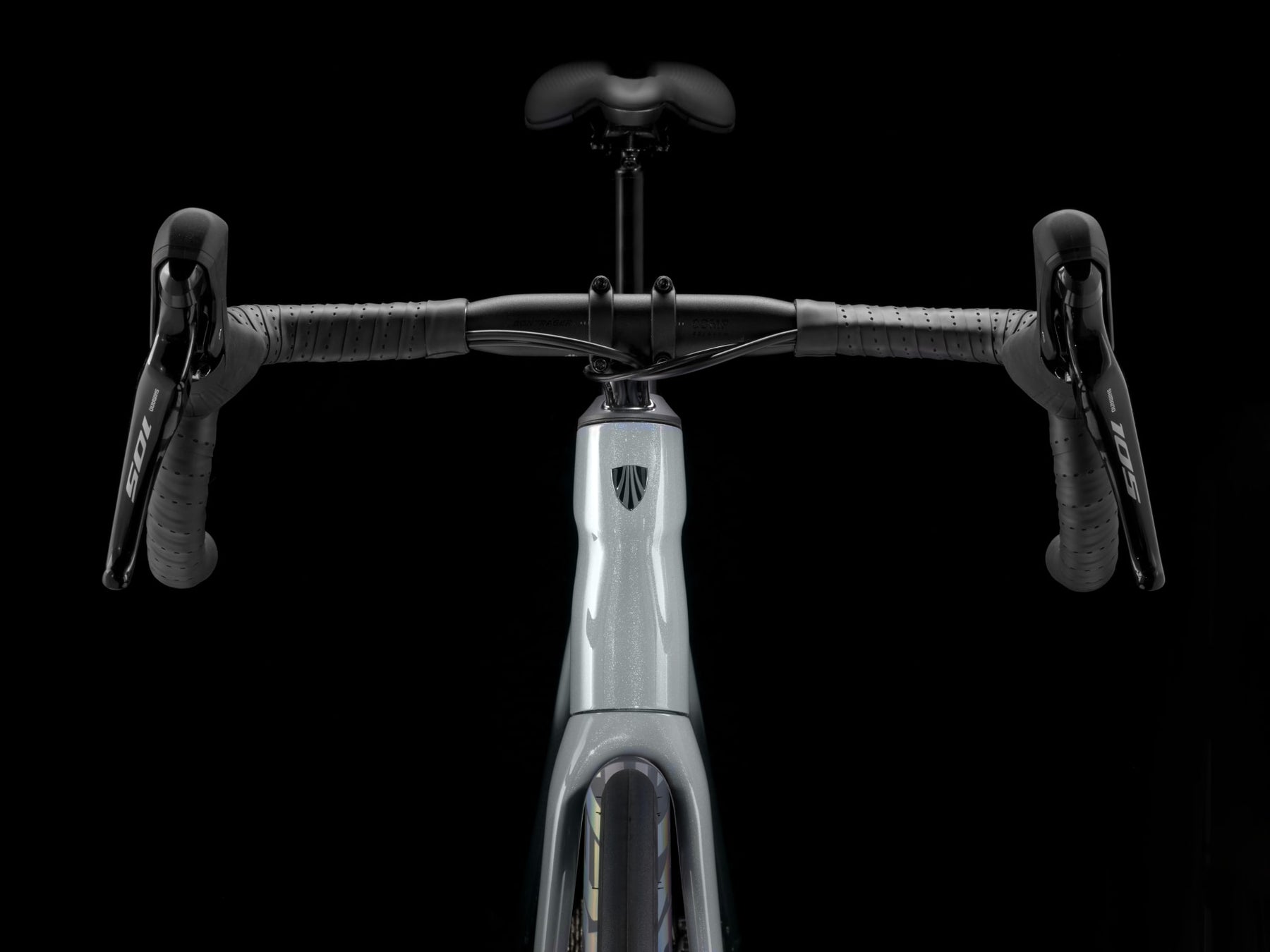

Handlebar: Bontrager Comp, alloy, varied sizes
-

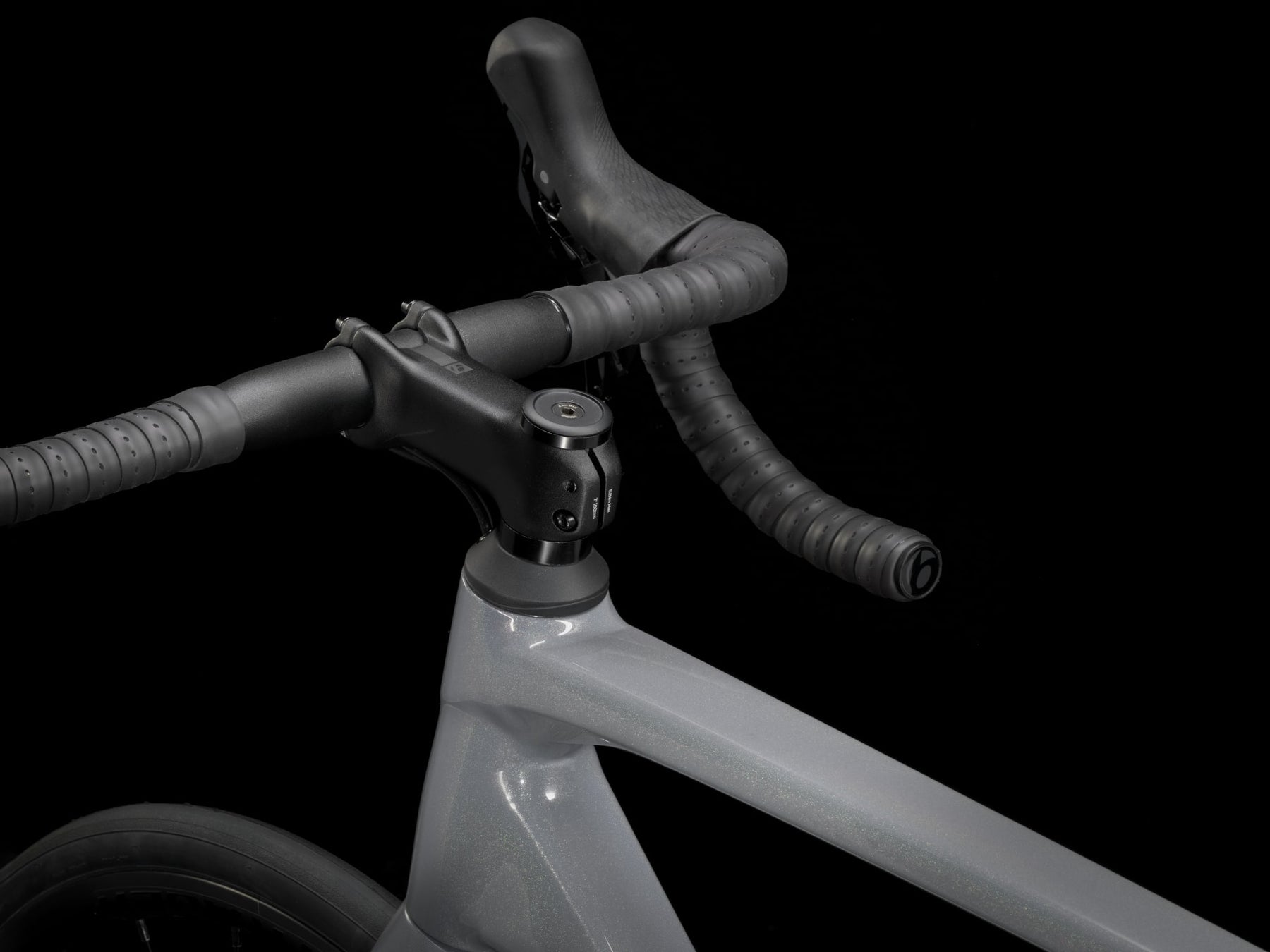

Stem: Bontrager Elite, Blendr-compatible, 7-degree, size dependent
-

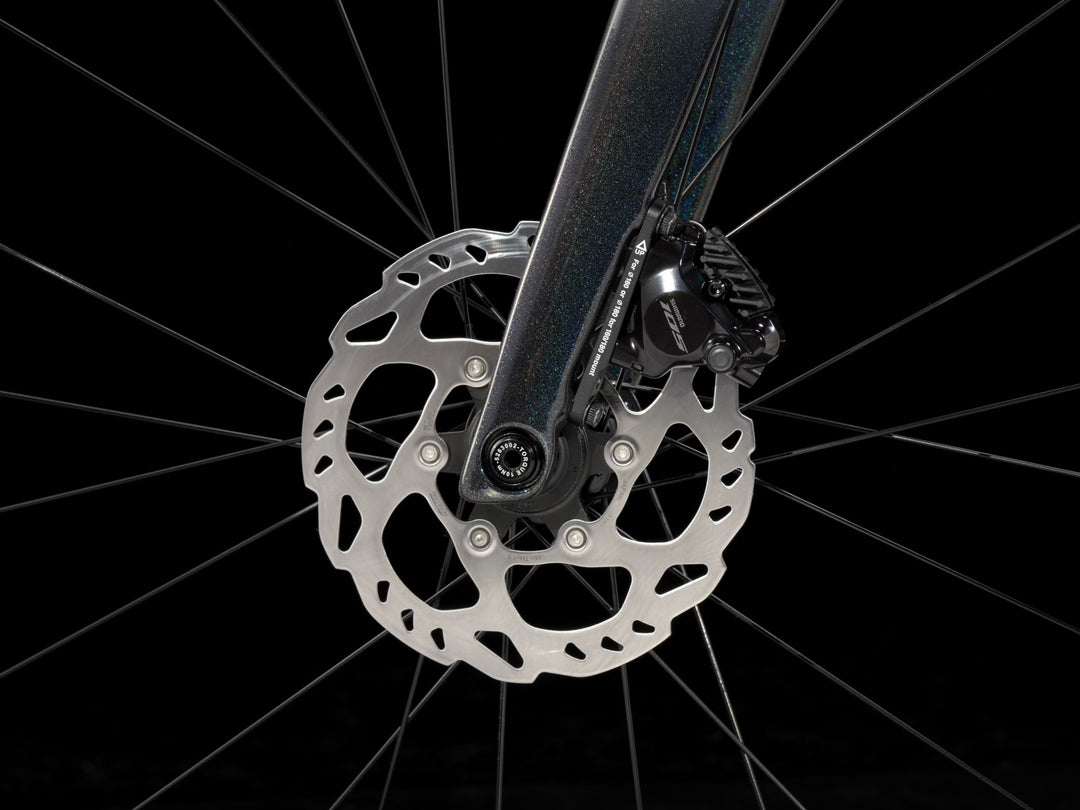

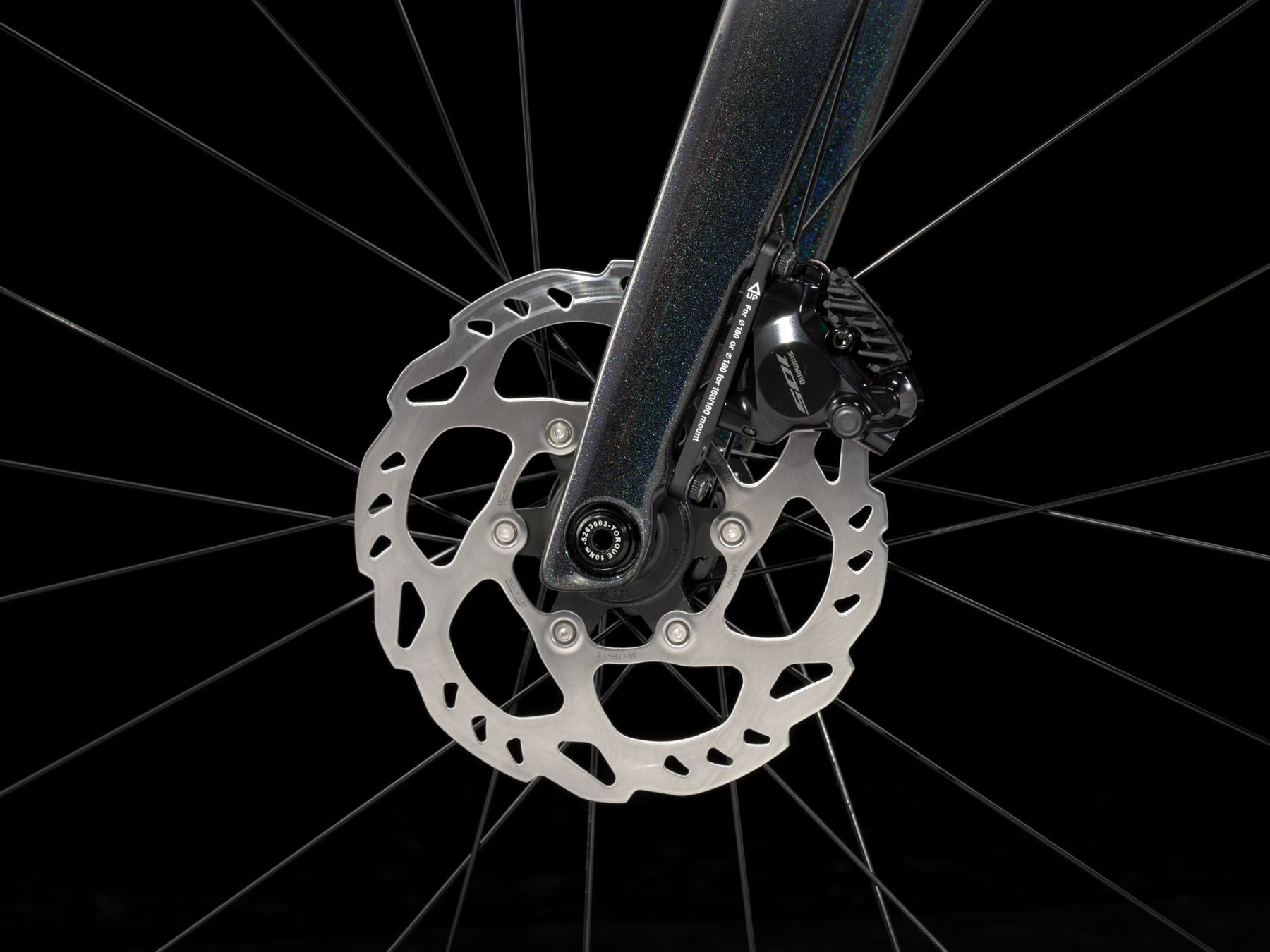

Brakes: Shimano 105 hydraulic disc, flat mount
-
Brake Rotors: Shimano RT70, CentreLock, 160 mm
