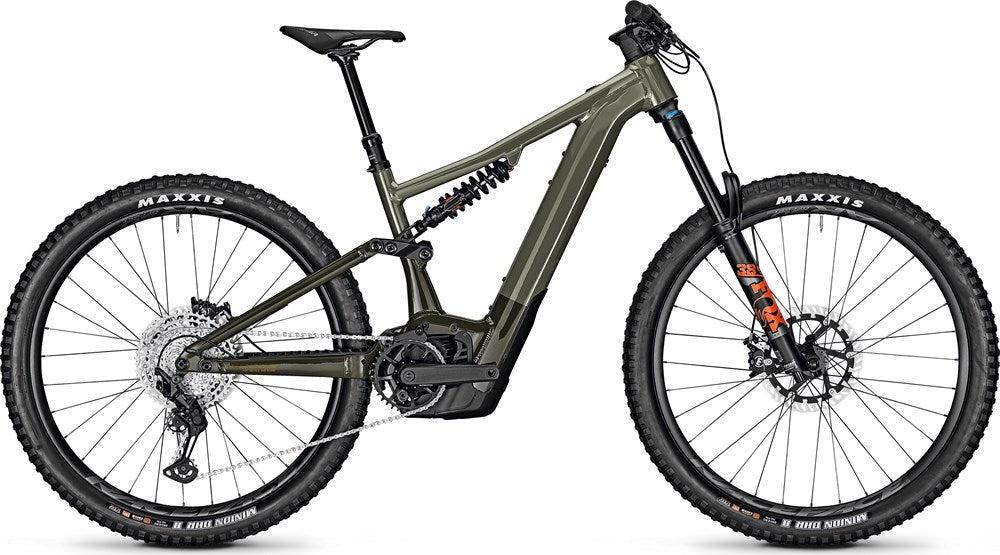

F24 SAM2 6.8

Bosch Smart System with Performance CX e-drive and Kiox 300 display plus 750 Wh battery

180 mm travel FOX 38 Rhythm suspension fork and 170 mm F.O.L.D. kinematics with RockShox Super Deluxe Select coil rear shock

Fully integrated C.I.S. cable routing with reliable precise Shimano XT 1x12 shifting and strong Magura MT5 4-piston brakes

Bosch CX e-drive & 750 Wh battery

180 mm FOX 38 Rhythm fork & 170 mm RockShox Super Deluxe Select coil shock

Shimano XT 1x12

• Brake
  • 220
• Pedal
  • MTB, with reflector
• Frame size
  • S,M,L,XL
  • 39,42,44,46
• Drive train
  • Chain
• Barend
  • Bosch Performance CX Smart Motor, Kiox 300 Display + LED Remote, 750 Wh, 85Nm, 36V
• Max total weight
  • 150 kg
• Frame
  • 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
• Fork
  • FOX 38 Rhythm Float 29, Grip, E-Bike optimized, 15x110 mm, 44mm rake
• Handlebar
  • Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
• Saddle
  • Selle Italia X3
• Seat post
  • Post Moderne dropper post PM-214, 34.9 mm
• Stem
  • FOCUS C.I.S. 2.0 MTB integrated, 35 mm, aluminium
• Brakes
  • Magura MT5
• Crank set
  • Samox EC40 ISIS
• Sprocket
  • Shimano Deore CS-M6100, 12-speed
• Transmission
  • front: 36, rear: 10-51
• Wheel rims
  • RaceFace AR30 Offset
• Brake lever
  • Magura MT5 HC-1
• Battery
  • Bosch Powertube, 750 Wh, removeable, lockable
  • 750 Wh
• Display
  • Bosch LED Remote + Kiox 300
• Motor
  • Bosch Performance CX Smart, 85 Nm, 250 W
• Color
  • Urbangreen / Huntsmangreen
  • Moonstonegrey / Slategrey
• Travel
  • 180 mm
  • 170 mm
• Hub
  • Novatec D041, 15x110 mm
  • Novatec D462, 12x148 mm
• Grip
  • Herrmans DD 41B
• Rear derailleur
  • Shimano Deore XT M8100, 12-speed
• Tire
  • Maxxis Minion DHR II, 2.6, 66-622, EXO+
• Bottom bracket
  • Integrated in Drive Unit
• Shift/brake lever
  • Magura MT5 HC-1
  • Shimano Deore XT M8100, 12-speed
• Spoke
  • Niro, black
• Chain
  • Shimano Deore CN-M6100, 12-speed
