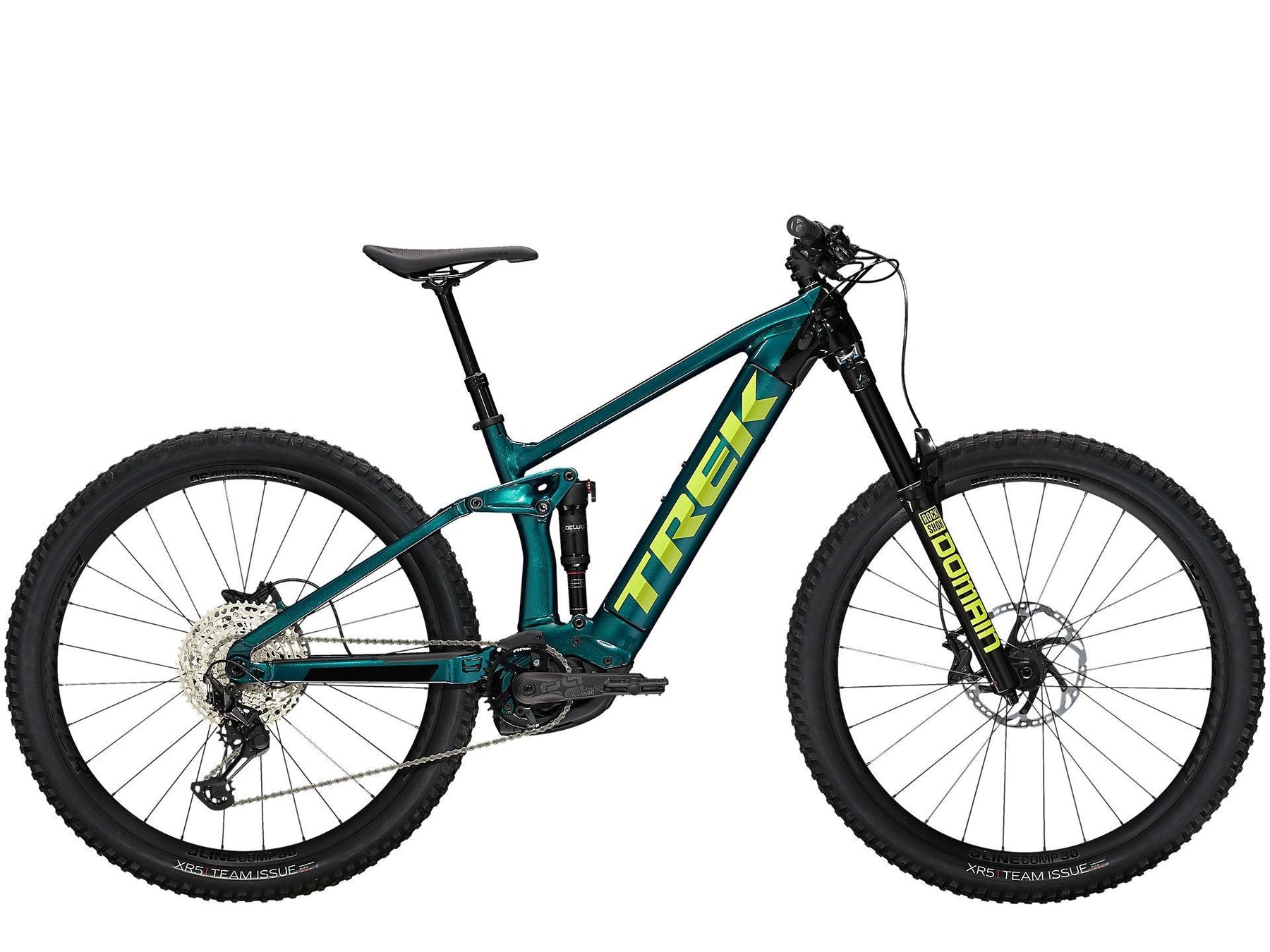

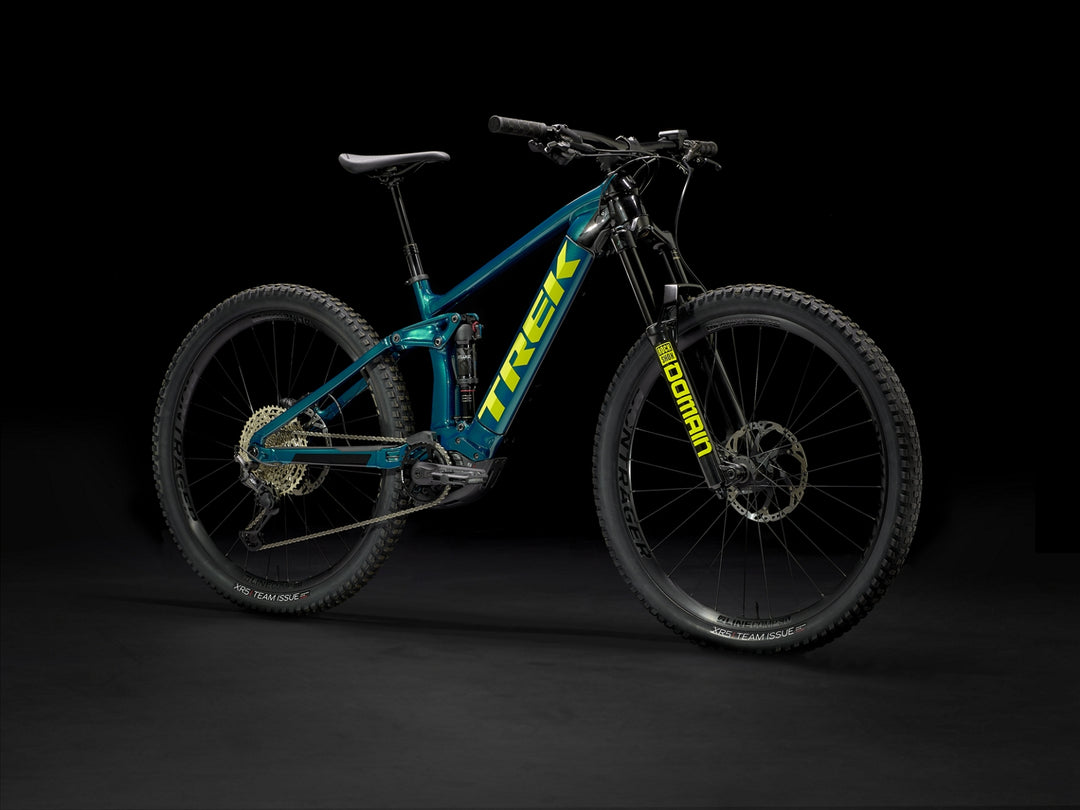

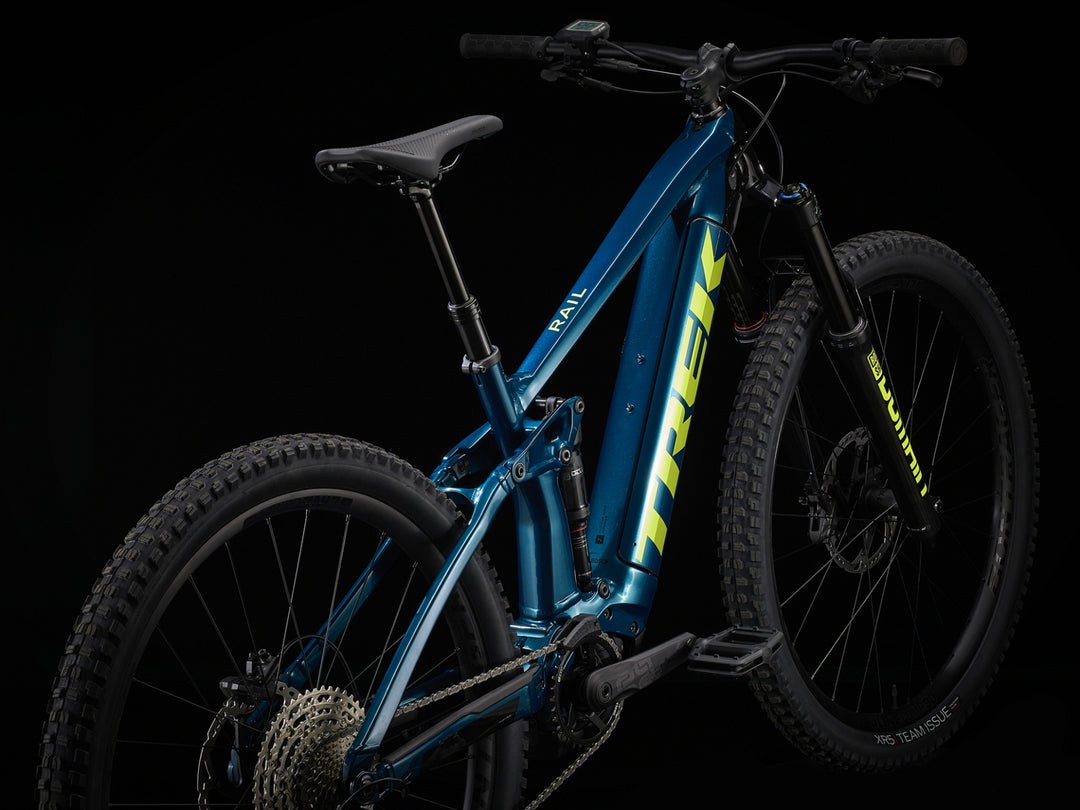

Rail 7 Dark Aquatic/Trek Black

5261267

Regular price $9,499.99
/
Tax included.

Call or TXT us: 0432 000 162

 Please email us if you are interested in this product.

 Free shipping on Clothing, Parts and Accessories - orders over $49.99

For complete new bikes - Click'n'Collect only

 Please notify me when this is back in stock


Size

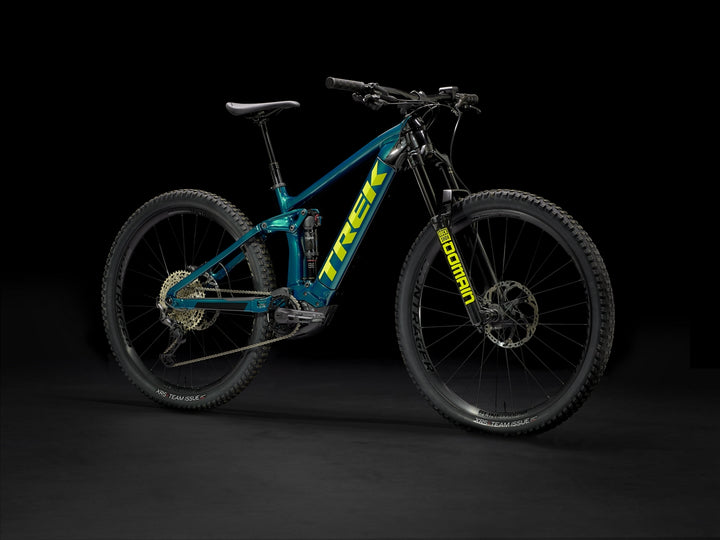

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful Bosch drive system that's basically like having your own shuttle.

It's right for you if...

A burly alloy frame with 150 mm of rear travel that fully encases a 625 Wh battery, a 160 mm RockShox Domain fork, a powerful new Bosch Performance Line CX 250 W motor that assists up to 20 mph (25 km/h in Europe) and a Purion controller. A smooth-shifting 1x12 Shimano SLX/XT drivetrain, dropper post, powerful Shimano 4-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.

The tech you get

The Rail 7 features loads of upgraded parts, including the drivetrain, fork and wheels. But the biggest deal is that it comes with a long-range Bosch battery. That means more runs and more fun.

The final word

The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day


See it in action

Why you'll love it

  1. The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day
  2. Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lift necessary

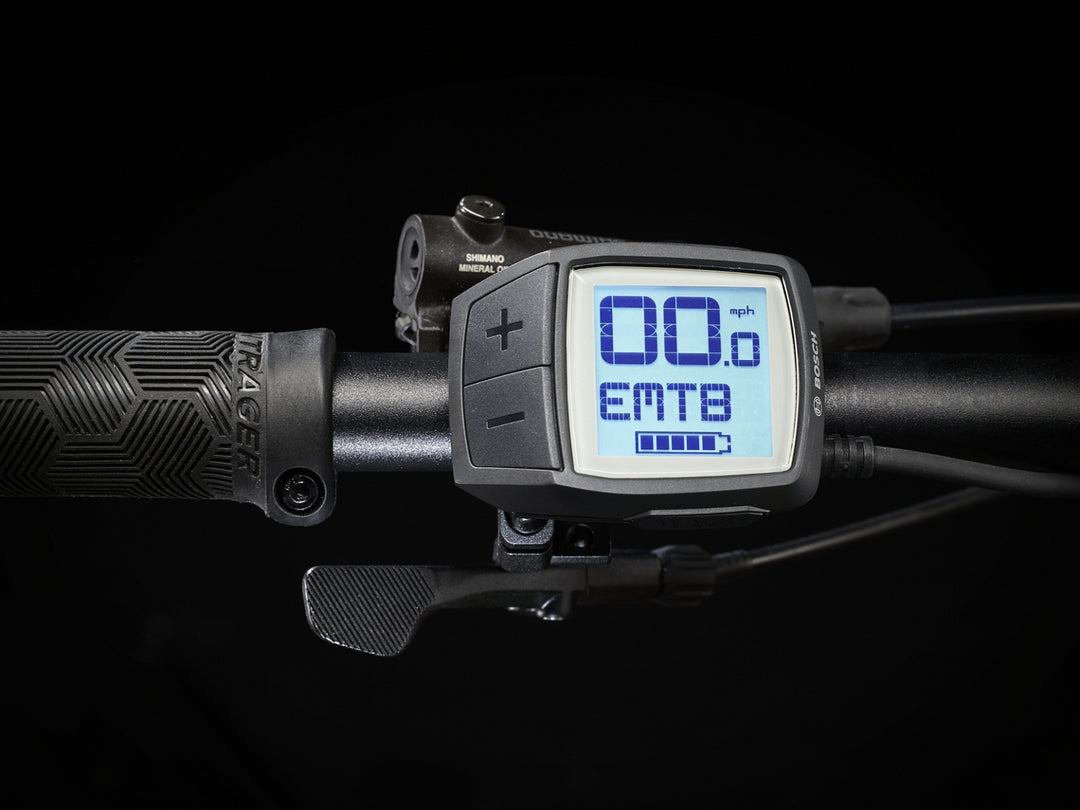

  3. The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain

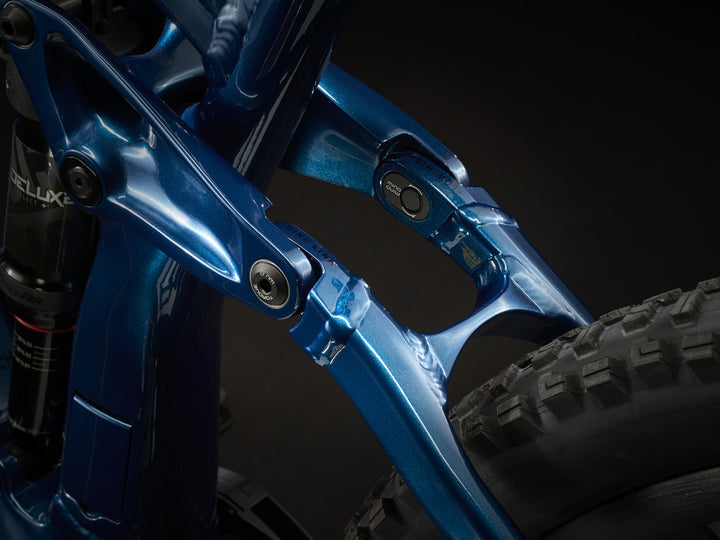

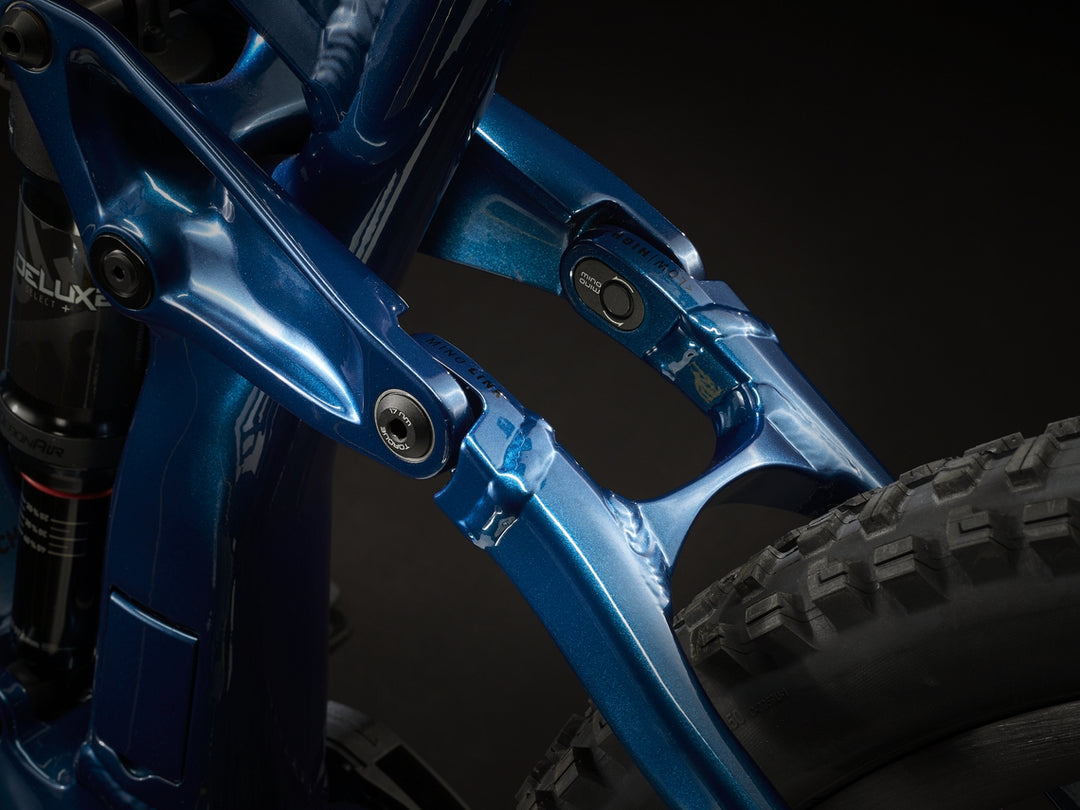

  4. Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)

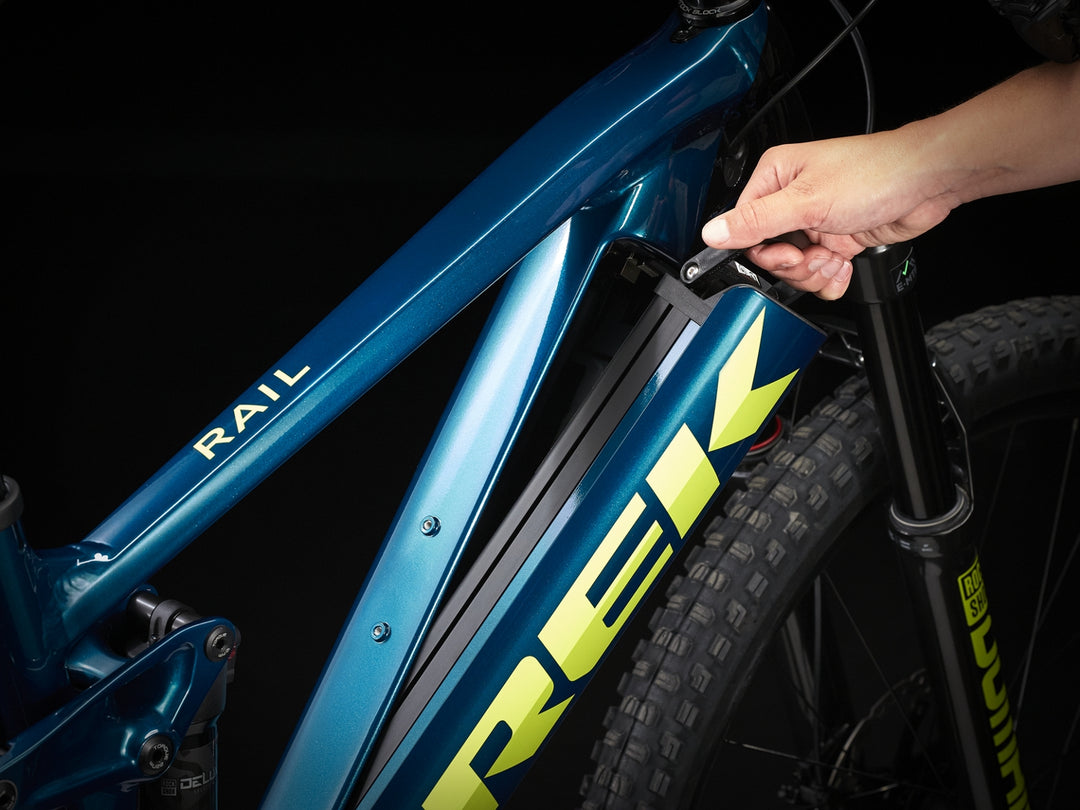

  5. Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.

Specifications

*spec applies to all sizes unless otherwise noted

Frameset
Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock RockShox Deluxe Select+, 230x57.5 mm
Max compatible fork travel 170mm (580mm axle-to-crown)
Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

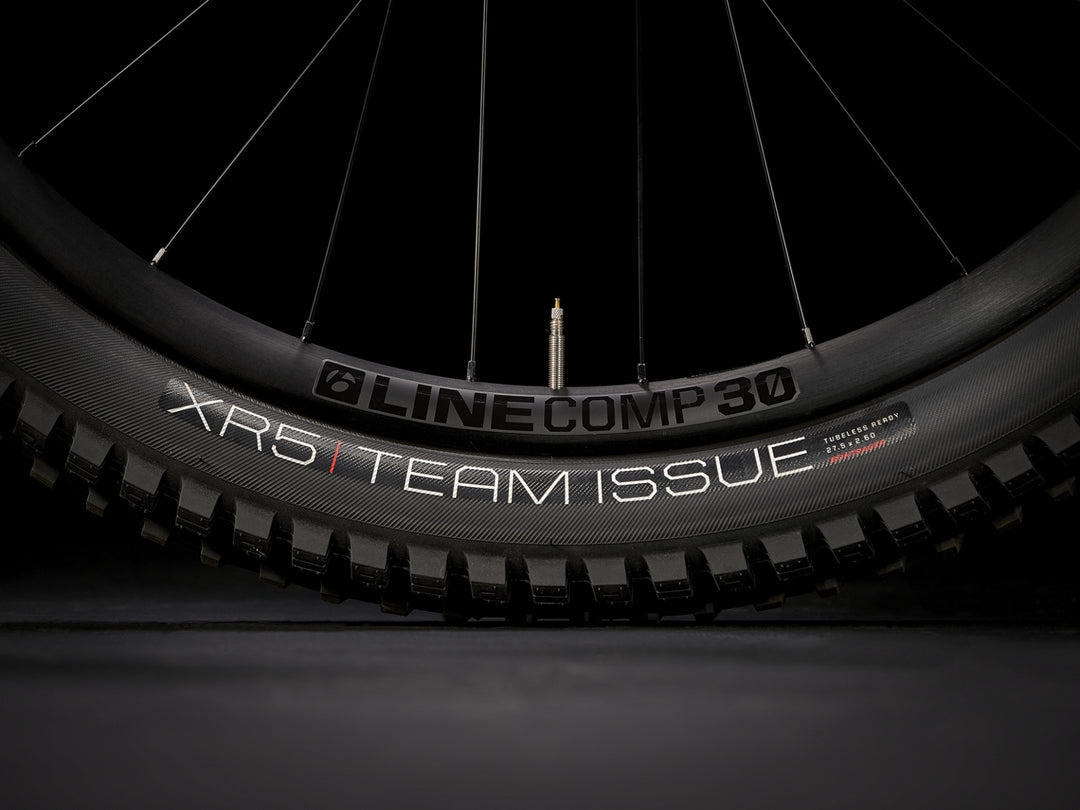

Tyre Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.60" Fork: See manufacturer
Shifter Shimano SLX M7100, 12-speed

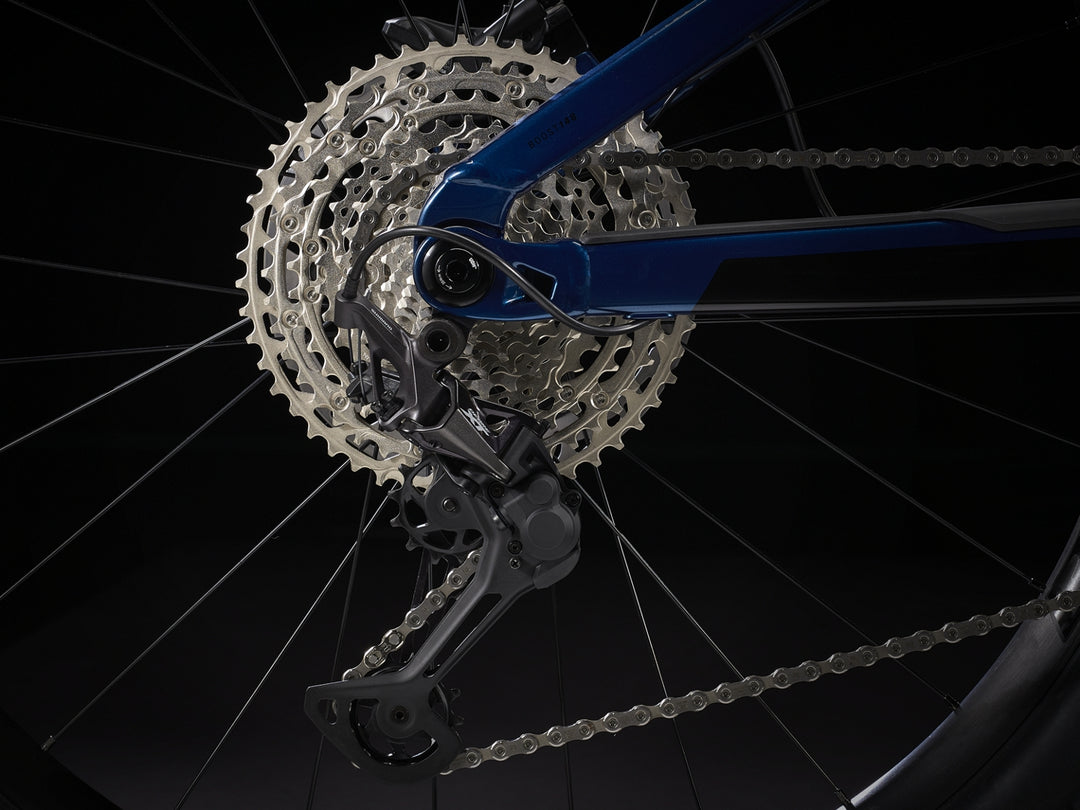

Rear derailleur Shimano XT M8100, long cage
Crank E*thirteen E*spec Plus, 34T, 165 mm length
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Pedal VP-536 nylon platform
Max. chainring size 34T
Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M, L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Head set Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor Shimano RT76, 6-bolt, 203 mm
Battery Bosch PowerTube 625
Charger Bosch standard 4A, 220–240V, smart system
Controller Bosch Purion

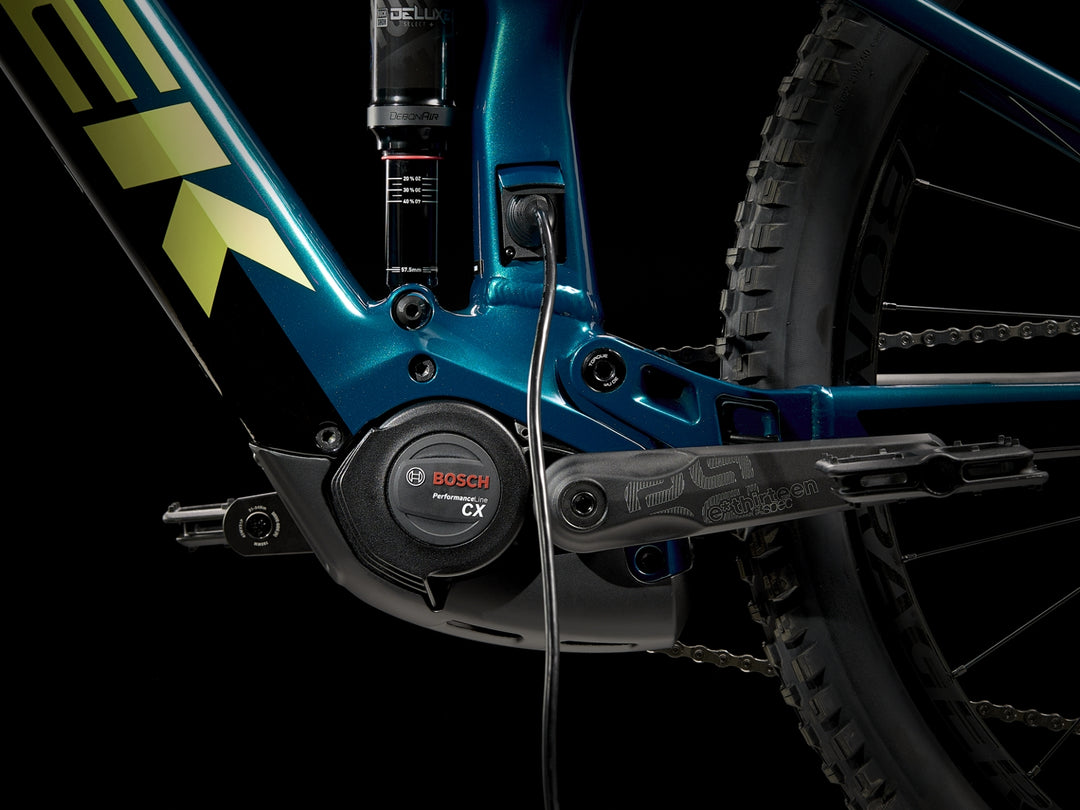

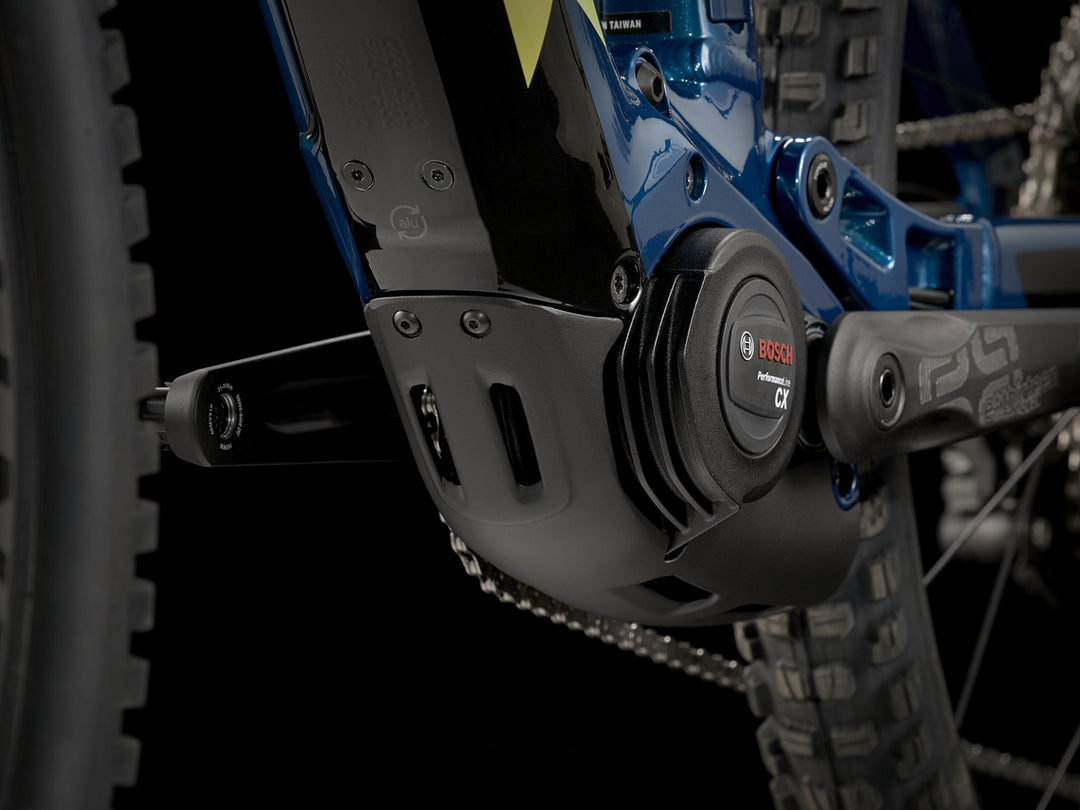

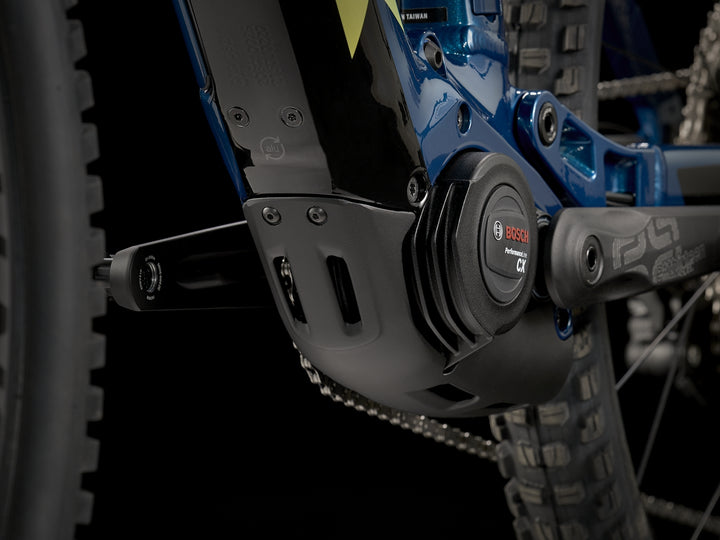

Motor Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Sizing & Tech

Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on trekbikes.com are for general comparison purposes only. To find your perfect fit, visit an authorised retailer, where an expert skilled at sizing will help you find the appropriate bike and size for your individual needs.
